19E05 (83548) - Snapper 19" Walk-Behind Mower, 3hp Upper & Middle Handles Parts Diagram

19" Walk-Behind Mower, 3hp

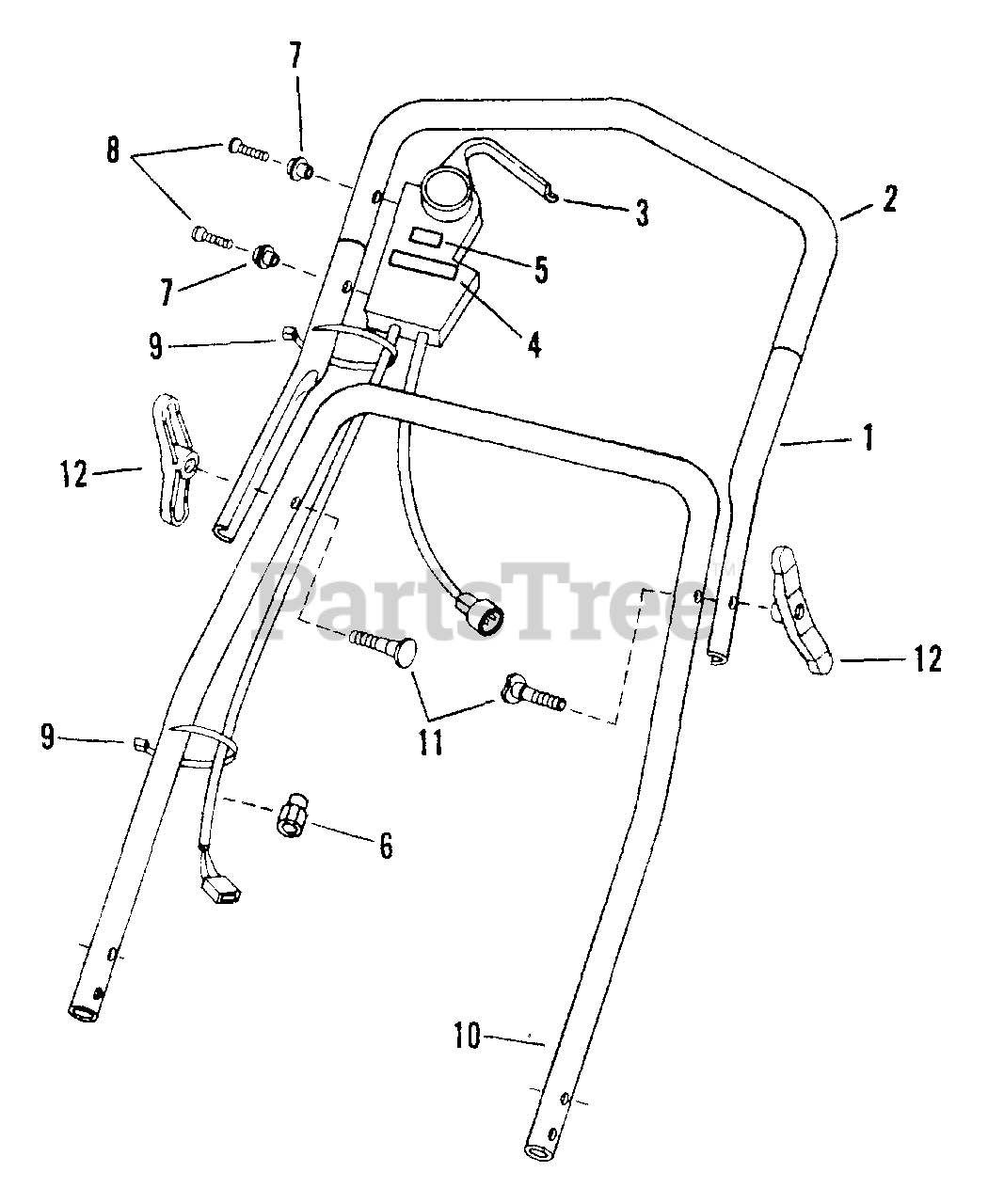

Upper & Middle Handles Parts Diagram

  • Title

1

Snapper 7051700

ASSEMBLY Upper Handle

Note: (Includes Item 2) (19E05 Series)

$

$

Currently unavailable

1

Snapper 7051567

ASSEMBLY, Upper Handle

Note: (Includes Item 2) (19E03 Series)

$

$

Currently unavailable

2

Snapper 7014903

TUBING, Heat Shrink

$

$

Currently unavailable

3

Snapper 51546

CONTROL, Electric

Note: (Includes items 5 thru 7)

$

$

Currently unavailable

4

Snapper 7014879

DECAL, Starting Procedure

$

$

Currently unavailable

5

Snapper 7014907

DECAL, Circuit Breaker Reset

$

$

Currently unavailable

6

Snapper 7014894

STRAIN-RELIEF, Harness

Note: (19E03 Series only)

$

$

Not available

7

Snapper 7015114

INSULATOR, Handle

$

$

Not available

8

Snapper 7090894

SCREW, #10-24 x 1-3/8" Slotted Cap

$

$

Not available

9

Snapper 7015322

TIE, Cable

$

$

Currently unavailable

10

Snapper 7036202

HANDLE, Middle
(Superseded to 7036202YP)

Note: (19E05 Series)

$49.99

$

Usually ships in 2-12 days

0

10

Snapper 7036037

HANDLE, Middle

Note: (19E03 Series)

$

$

Not available

11

Snapper 7090965

SCREW, 1/4-20 x 1-3/8" Curved Head
(Superseded to 7090965YP)

Note: (19E05 Series)

$15.99

$

Usually ships in 2-12 days

0

11

Snapper 7090529

SCREW, 1/4-28 x 1-1/4" Hex Cap
(Superseded to 7090529YP)

Note: (19E03 Series)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7015693

NUT, 1/4-20 Wing
(Superseded to 014X79MA)

Note: (19E05 Series)

$4.99

$

Usually ships in 2-12 days

0

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: (19E03 Series)

$3.49

$

Usually ships in 2-12 days

0

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: (19E03 Series)

$4.49

$

In Stock, Qty 13

0
