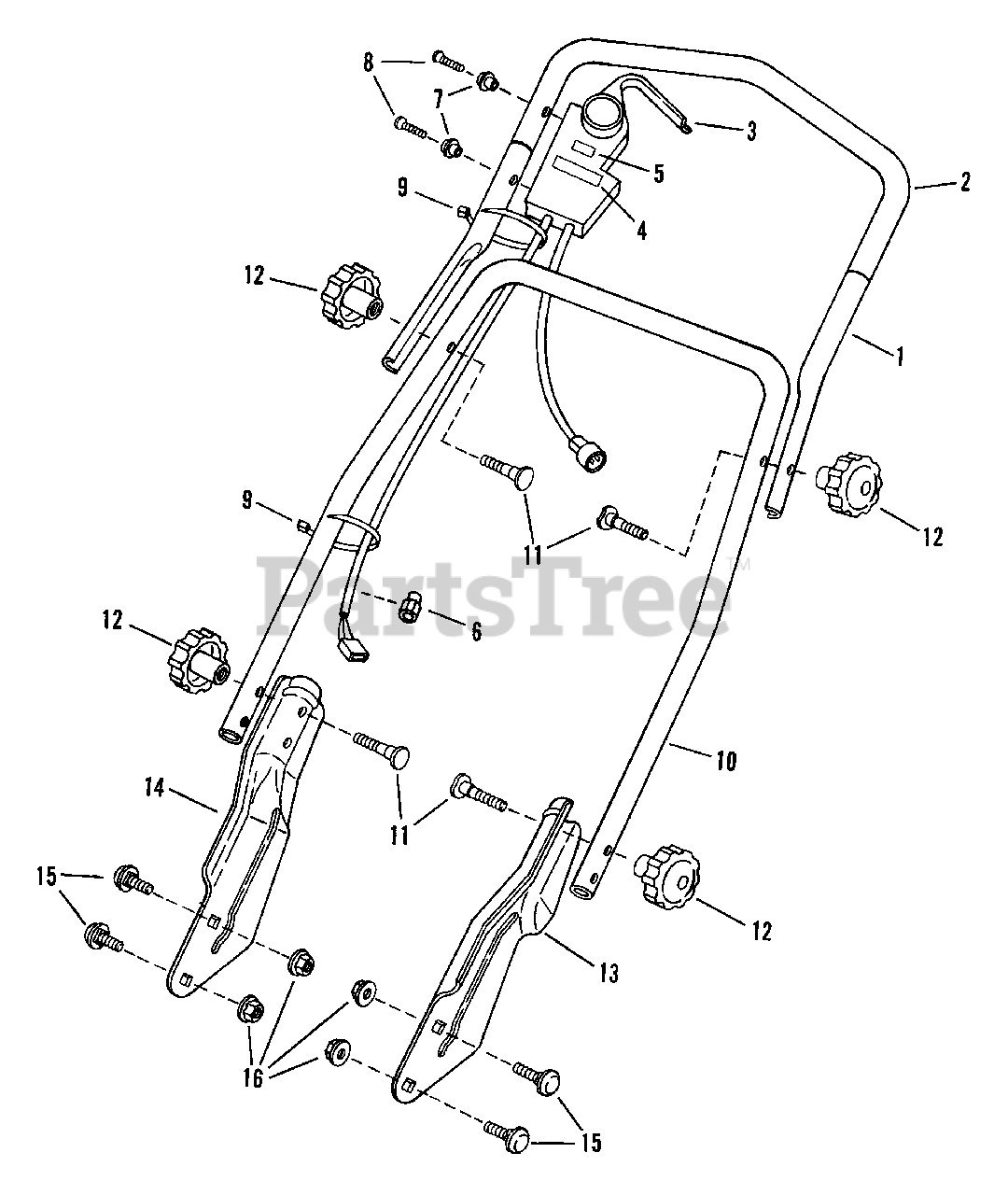

19E07B (83540) - Snapper 19" Walk-Behind Mower, 3hp Upper, Middle & Lower Handles Parts Diagram

19" Walk-Behind Mower, 3hp

Upper, Middle & Lower Handles Parts Diagram

  • Title

1

Snapper 7051884

ASSEMBLY Upper Handle

Note: (Includes Item 2)

$

$

Not available

2

Snapper 7014903

TUBING, Heat Shrink

$

$

Currently unavailable

3

CONTROL, Electric

Note: B&S #399192 (Includes items 5 thru 7)

$

$

Not available

4

Snapper 7014879

DECAL, Starting Procedure

$

$

Currently unavailable

5

Snapper 7014907

DECAL, Circuit Breaker Reset

$

$

Currently unavailable

6

Snapper 7014894

STRAIN-RELIEF, Harness

$

$

Not available

7

Snapper 7015114

INSULATOR, Handle

$

$

Not available

8

Snapper 7090894

SCREW, #10-24 x 1-3/8" Slotted Cap

$

$

Not available

9

Snapper 7012080

TIE, Cable
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7036350

HANDLE, Middle

$

$

Not available

11

Snapper 7091013

SCREW, 5/16-18 x 2" Curved Head
(Superseded to 7091013SM)

$5.49

$

In Stock, only 2 left!

0

12

Snapper 7023735

KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7046502

HANDLE, Lower L.H.
(Superseded to 7046502YP)

Note: Was 38467

$56.99

$

In Stock, only 1 left!

0

14

Snapper 7035342

HANDLE, Lower R.H.
(Superseded to 7035342YP)

Note: Was 38466

$43.99

$

In Stock, only 2 left!

0

15

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0
