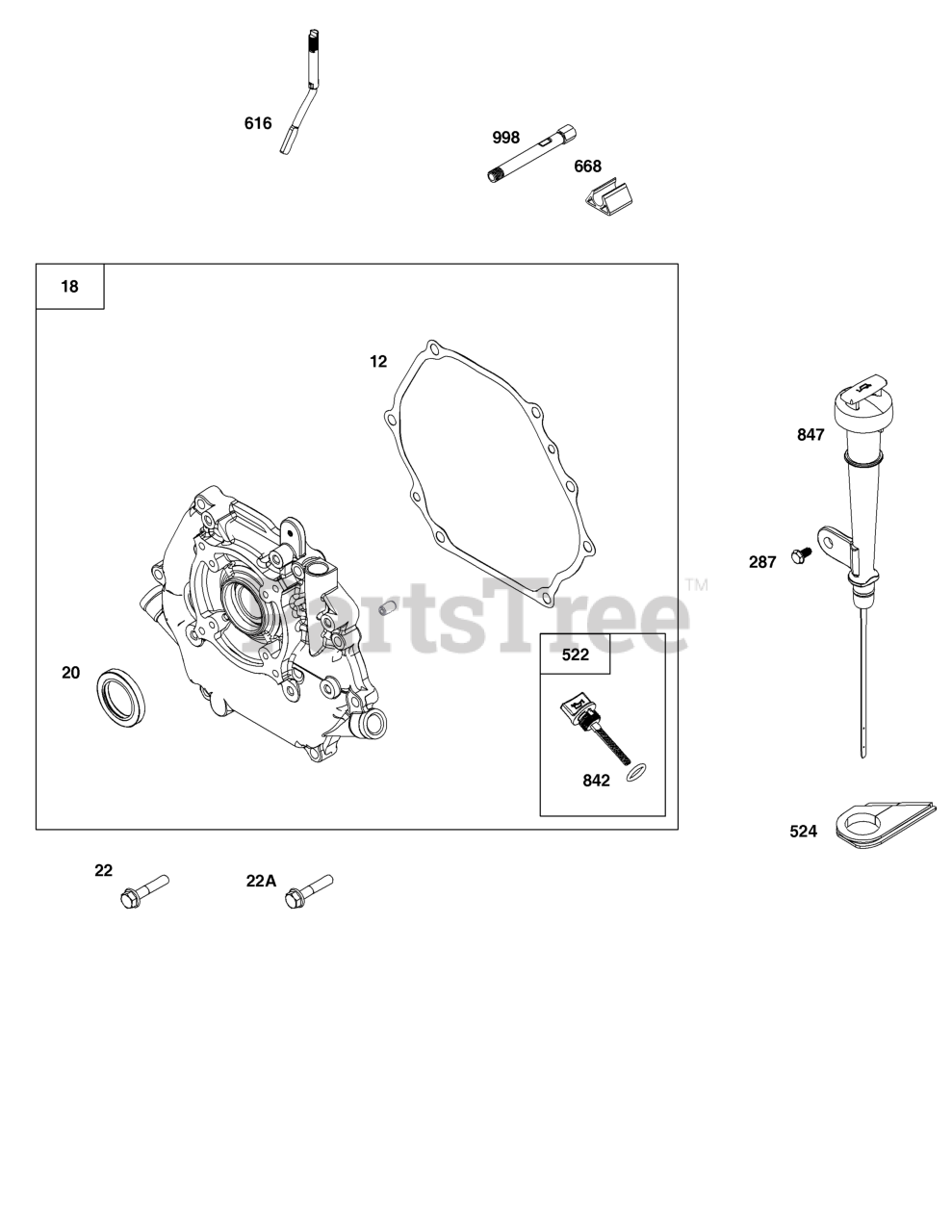

19J137-0013-F1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

12

Briggs & Stratton 592597

GASKET, Crankcase

$14.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 593661

COVER, Crankcase

$205.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 591793

SEAL, Oil

Note: (PTO Side)

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 797776

SCREW

Note: (Crankcase Cover/Sump)

$4.49

$

Usually ships in 2-12 days

0

22A

Briggs & Stratton 593107

SCREW

Note: (Crankcase Cover/Sump)

$7.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 798618

SCREW

Note: (Dipstick Tube)

$3.99

$

Usually ships in 2-12 days

0

522

Briggs & Stratton 799857

CAP, Oil Fill

$8.49

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 593182

SEAL, Dipstick Tube

Note: (Dipstick Tube)

$5.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 592615

CRANK, Governor

$11.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 595948

SPACER

$3.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 797327

SEAL, O-Ring

Note: (Dipstick Cap)

$7.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 593174

DIPSTICK/TUBE ASSEMBLY

$27.99

$

Usually ships in 2-12 days

0

998

Briggs & Stratton 799809

PIPE, Oil

$43.99

$

In Stock, only 1 left!

0
