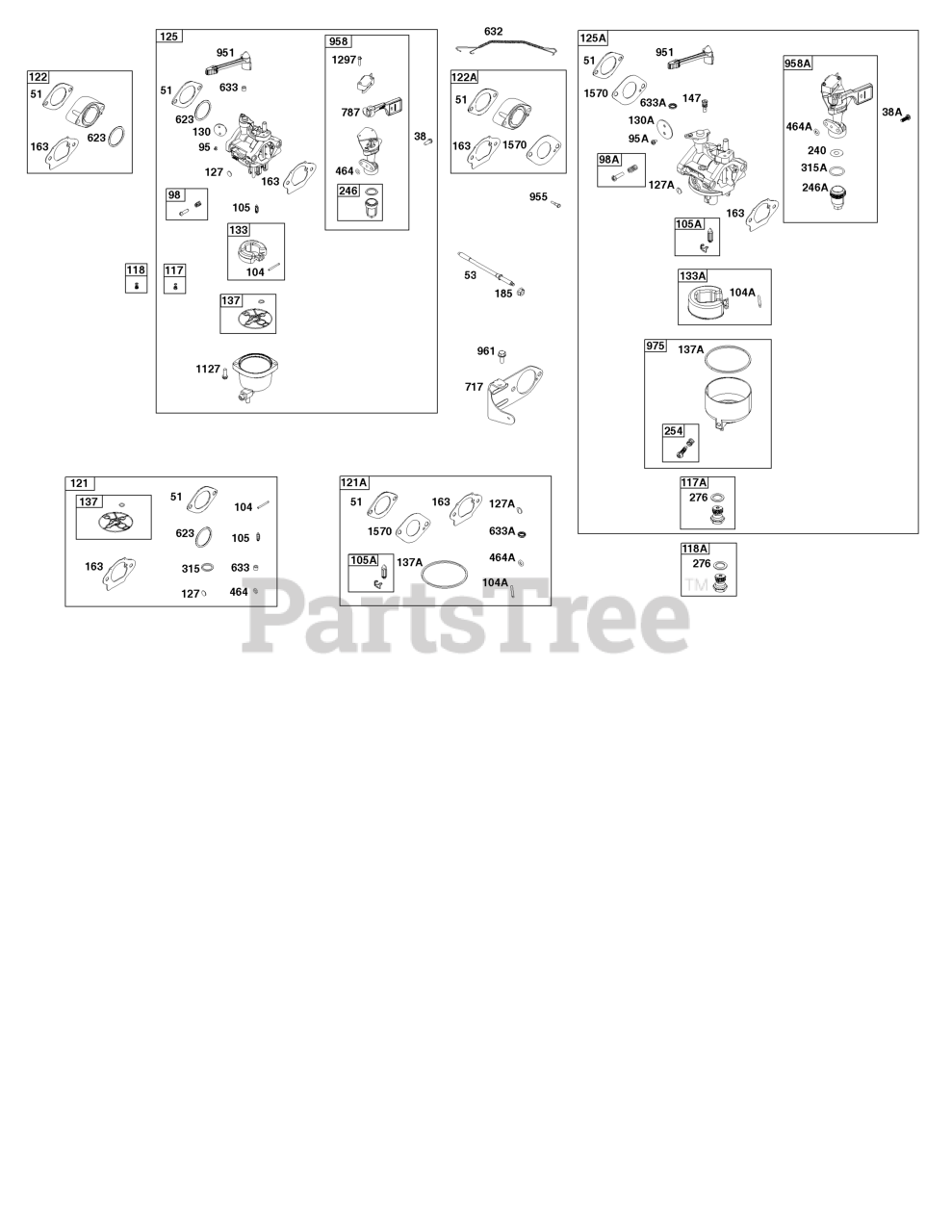

19L232-0006-H5 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Briggs & Stratton 698557

Note: (Fuel Shut Off Valve) Used Before Code Date 18112600

Briggs & Stratton 595328

Note: (Fuel Shut Off Valve) Used After Code Date 18112500

Note: (Part information located in Cylinder Head Group.)

Briggs & Stratton 798988

Note: (Carburetor)

Briggs & Stratton 690718

Note: (Throttle Valve) Used Before Code Date 18112600

Briggs & Stratton 797161

Note: (Throttle Valve) Used After Code Date 18112500

Briggs & Stratton 695408

Note: Used Before Code Date 18112600

Briggs & Stratton 847139

Note: Used After Code Date 18112500

Briggs & Stratton 694918

Note: Used Before Code Date 18112600

Briggs & Stratton 597533

Note: Used After Code Date 18112500

Briggs & Stratton 696136

Note: Used Before Code Date 18112600

Briggs & Stratton 84004840

Note: Used After Code Date 18112500

Briggs & Stratton 698788

Note: (Standard) Used Before Code Date 18112600

Briggs & Stratton 84004489

Note: (Standard) Used After Code Date 18112500

Briggs & Stratton 799134

Note: (High Altitude) Used Before Code Date 18112600

Briggs & Stratton 84004744

Note: (High Altitude) Used After Code Date 18112500

Briggs & Stratton 799722

Note: (Service Kits may include extra parts not specific to this engine.) Used Before Code Date 18112600

Briggs & Stratton 84004975

Note: (Service Kits may include extra parts not specific to this engine.) Used After Code Date 18112500

Briggs & Stratton 799766

Note: Used Before Code Date 18112600

Briggs & Stratton 84004776

Note: Used After Code Date 17112000

Briggs & Stratton 799060

Note: Used Before Code Date 18112600

Briggs & Stratton 84003204

Note: Used After Code Date 18112500

Briggs & Stratton 690727

Note: Used Before Code Date 18112600

Briggs & Stratton 84004841

Note: Used After Code Date 18112500

Briggs & Stratton 696139

Note: Used Before Code Date 18112600

Briggs & Stratton 84004397

Note: Used After Code Date 18112500

Briggs & Stratton 694914

Note: Used Before Code Date 18112600

Briggs & Stratton 84004490

Note: Used After Code Date 18112500

Briggs & Stratton 799991

Note: Used Before Code Date 18112600

Briggs & Stratton 84004205

Note: Used After Code Date 18112500

Briggs & Stratton 594872

Note: Used After Code Date 18112500

Briggs & Stratton 798962

Note: (Part information located in Air Cleaner Group.)

Briggs & Stratton 597039

Note: Used After Code Date 18112500

Briggs & Stratton 595153

Note: Used Before Code Date 18112600

Briggs & Stratton 597043

Note: Used After Code Date 18112500

Briggs & Stratton 595322

Note: Used After Code Date 18112500

Briggs & Stratton 84004488

Note: Used After Code Date 18112500

Briggs & Stratton 799035

Note: (Fuel Filter Bowl) Used Before Code Date 18112600

Briggs & Stratton 597735

Note: (Fuel Filter Bowl) Used After Code Date 18112500

Briggs & Stratton 698550

Note: (Fuel Shut-off Valve) Used Before Code Date 18112600

Briggs & Stratton 595320

Note: (Fuel Shut-off Valve) Used After Code Date 18112500

Briggs & Stratton 799051

Note: (Carburetor Spacer) Used Before Code Date 18112600

Note: (Part information located in Controls Group.)

Briggs & Stratton 690722

Note: Used Before Code Date 18112600

Briggs & Stratton 84004398

Note: Used After Code Date 18112500

Briggs & Stratton 798989

Note: Used Before Code Date 18112600

Briggs & Stratton 84004868

Note: Used After Code Date 18112500

Briggs & Stratton 798635

Note: Used Before Code Date 18112600

Briggs & Stratton 798528

Briggs & Stratton 595329

Note: Used After Code Date 18112500

Briggs & Stratton 799073

Note: Used Before Code Date 18112600

Briggs & Stratton 84004839

Note: Used After Code Date 18112500

Briggs & Stratton 699691

Note: (Air Cleaner Bracket)

Briggs & Stratton 84004204

Note: Used After Code Date 18112500

Briggs & Stratton 695407

Note: (Float Bowl to Carburetor Body) Used Before Code Date 18112600

Briggs & Stratton 798637

Note: Used Before Code Date 18112600

Briggs & Stratton 84005011

Note: Used After Code Date 17112000
