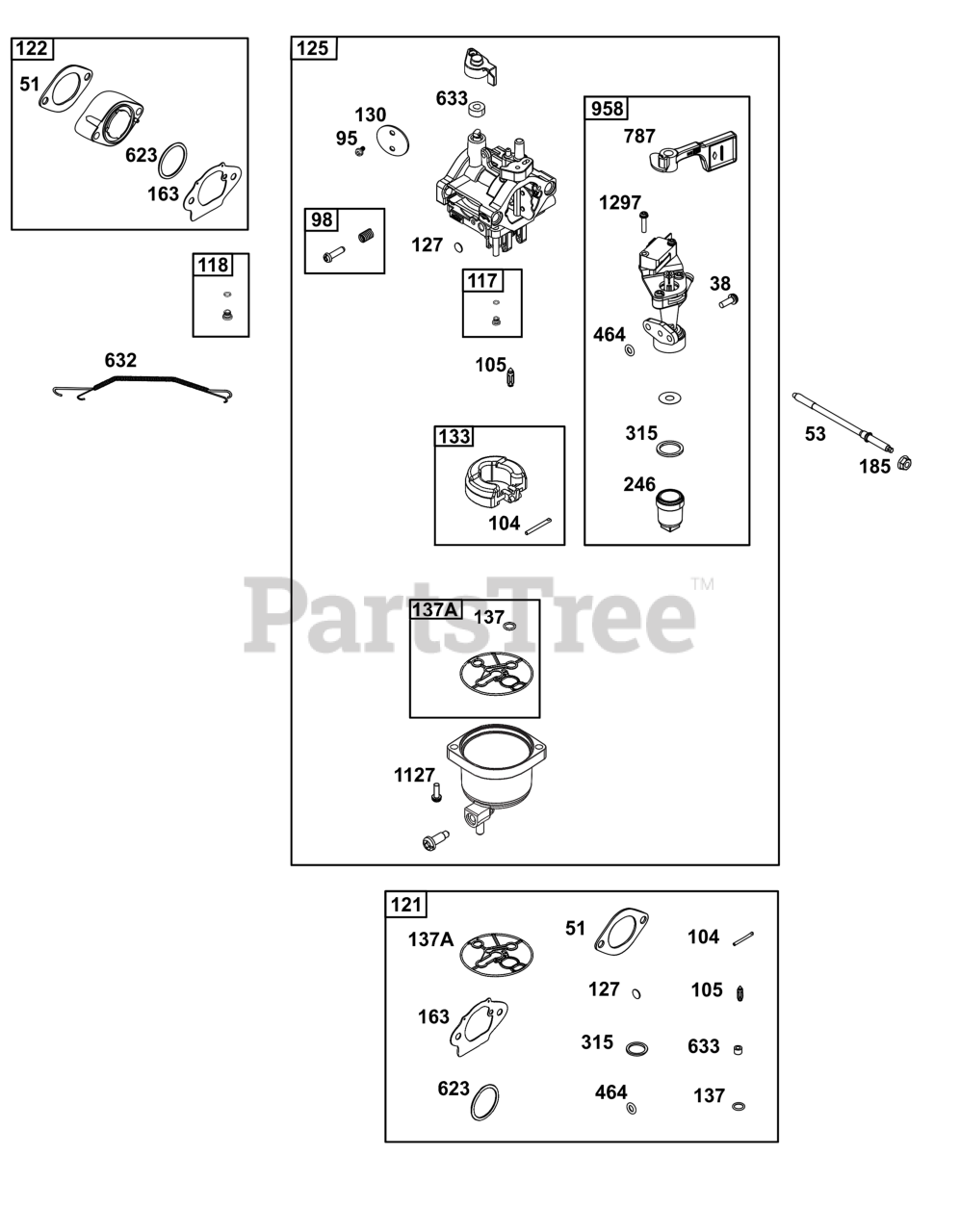

19L236-0143-F1 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title

38

Briggs & Stratton 698557

SCREW

$3.99

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 798988

STUD

Note: (Carburetor)

$8.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

$5.99

$

In Stock, only 1 left!

0

98

Briggs & Stratton 695408

KIT, Idle Speed

$13.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 696136

VALVE, Float Needle

$15.99

$

In Stock, Qty 14

0

117

Briggs & Stratton 698788

JET, Main

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 799134

JET, Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 799722

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$74.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 799766

SPACER, Carburetor

$13.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 594743

CARBURETOR

$161.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 1 left!

0

130

Briggs & Stratton 696139

VALVE, Throttle

$10.99

$

In Stock, only 2 left!

0

133

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

Usually ships in 2-12 days

0

137A

Briggs & Stratton 799991

GASKET, Float Bowl

$26.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 798962

GASKET, Air Cleaner

$5.99

$

In Stock, only 2 left!

0

185

NUT

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

246

Briggs & Stratton 595153

BOWL-FUEL VALVE-STRAINER

$13.99

$

In Stock, Qty 5

0

315

Briggs & Stratton 799035

SEAL, O-Ring
(Superseded to 595153)

$13.99

$

In Stock, Qty 5

0

464

Briggs & Stratton 698550

SEAL, O-Ring

$7.49

$

In Stock, only 1 left!

0

623

Briggs & Stratton 799051

SEAL, O-Ring

$5.49

$

Usually ships in 2-12 days

0

632

SPRING/LINK, Mechanical Governor

Note: (Part information located in Controls Group.)

$

$

Not available

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$15.99

$

In Stock, only 1 left!

0

787

Briggs & Stratton 798635

ARM, Lever

$59.99

$

Usually ships in 2-12 days

0

958

Briggs & Stratton 799073

VALVE, Fuel Shut Off

$101.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

SCREW

$4.49

$

In Stock, only 2 left!

0

1297

Briggs & Stratton 798637

SCREW

$10.99

$

Usually ships in 2-12 days

0
