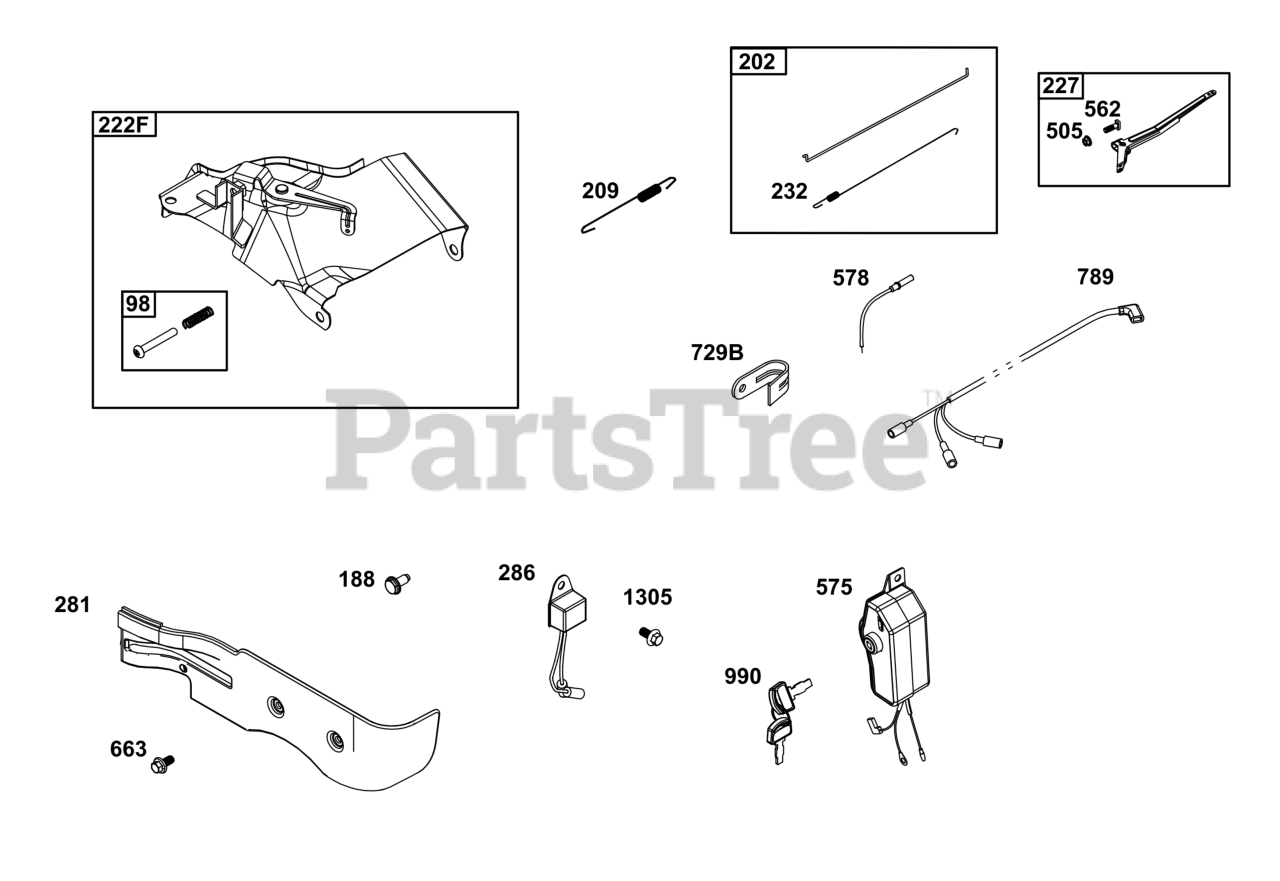

19N137-0027-H5 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

98

Briggs & Stratton 592978

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 798618

SCREW

Note: (Control Bracket)

$4.49

$

In Stock, only 4 left!

0

202

Briggs & Stratton 591834

LINK, Mechanical Governor

$9.99

$

In Stock, only 1 left!

0

209

Briggs & Stratton 84002364

SPRING, Governor

$6.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 591786

SPRING, Governor

$

$

Not available

222F

Briggs & Stratton 593315

BRACKET, Control

$38.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 592616

LEVER, Governor Control

$17.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 797809

SPRING, Governor Link

$11.99

$

In Stock, only 3 left!

0

281

Briggs & Stratton 593314

PANEL, Control

$

$

Not available

286

Briggs & Stratton 797772

MODULE, Oil Sensor
(Superseded to 84004388)

$62.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 690939

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, only 2 left!

0

562

Briggs & Stratton 797230

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

575

Briggs & Stratton 593734

SWITCH, Starting

$10.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 596032

WIRE ASSEMBLY

$7.99

$

Usually ships in 2-12 days

0

663

Briggs & Stratton 799846

SCREW

Note: (Control Panel)

$3.99

$

In Stock, only 4 left!

0

729B

Briggs & Stratton 592311

CLIP, Wire

$

$

Not available

789

Briggs & Stratton 590372

HARNESS, Wiring

$22.99

$

Usually ships in 2-12 days

0

990

Briggs & Stratton 590996

SET, Key

$9.99

$

Usually ships in 2-12 days

0

1305

Briggs & Stratton 798618

SCREW

Note: (Oil Sensor Module)

$4.49

$

In Stock, only 4 left!

0
