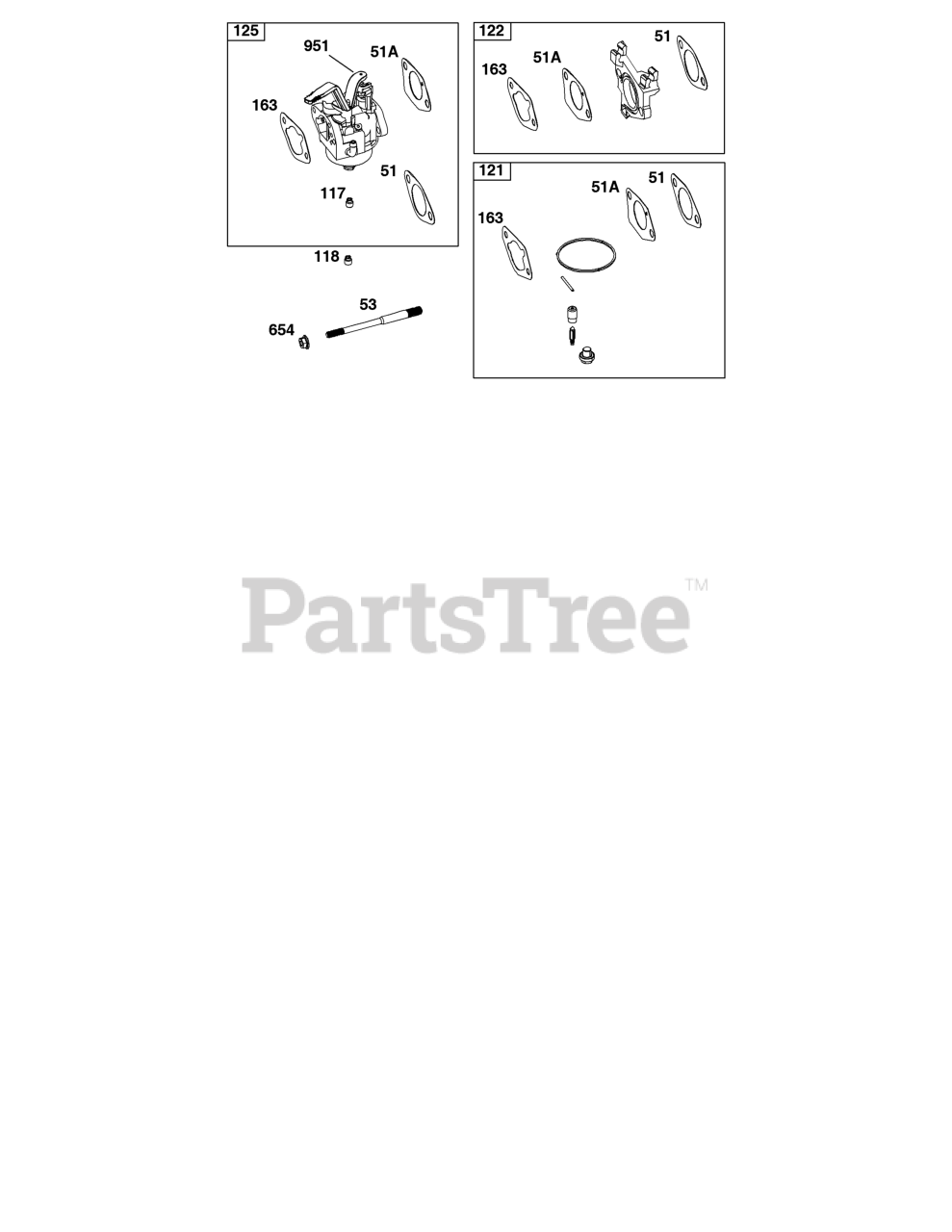

19N137-0344-B5 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 591801

STUD

Note: (Carburetor)

$7.49

$

In Stock, only 1 left!

0

117

Briggs & Stratton 799174

JET, Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 799774

JET, Main

Note: (High Altitude)

$14.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 593133

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$37.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 591797

SPACER, Carburetor

$12.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 592596

CARBURETOR

$119.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 797756

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 7

0

654

Briggs & Stratton 690939

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 2 left!

0

951

Briggs & Stratton 592068

LEVER, Choke

$6.99

$

Usually ships in 2-12 days

0
