1N168 (9862-0) - Generac 8,000 Watt Portable Generator Control Panel Parts Diagram

8,000 Watt Portable Generator

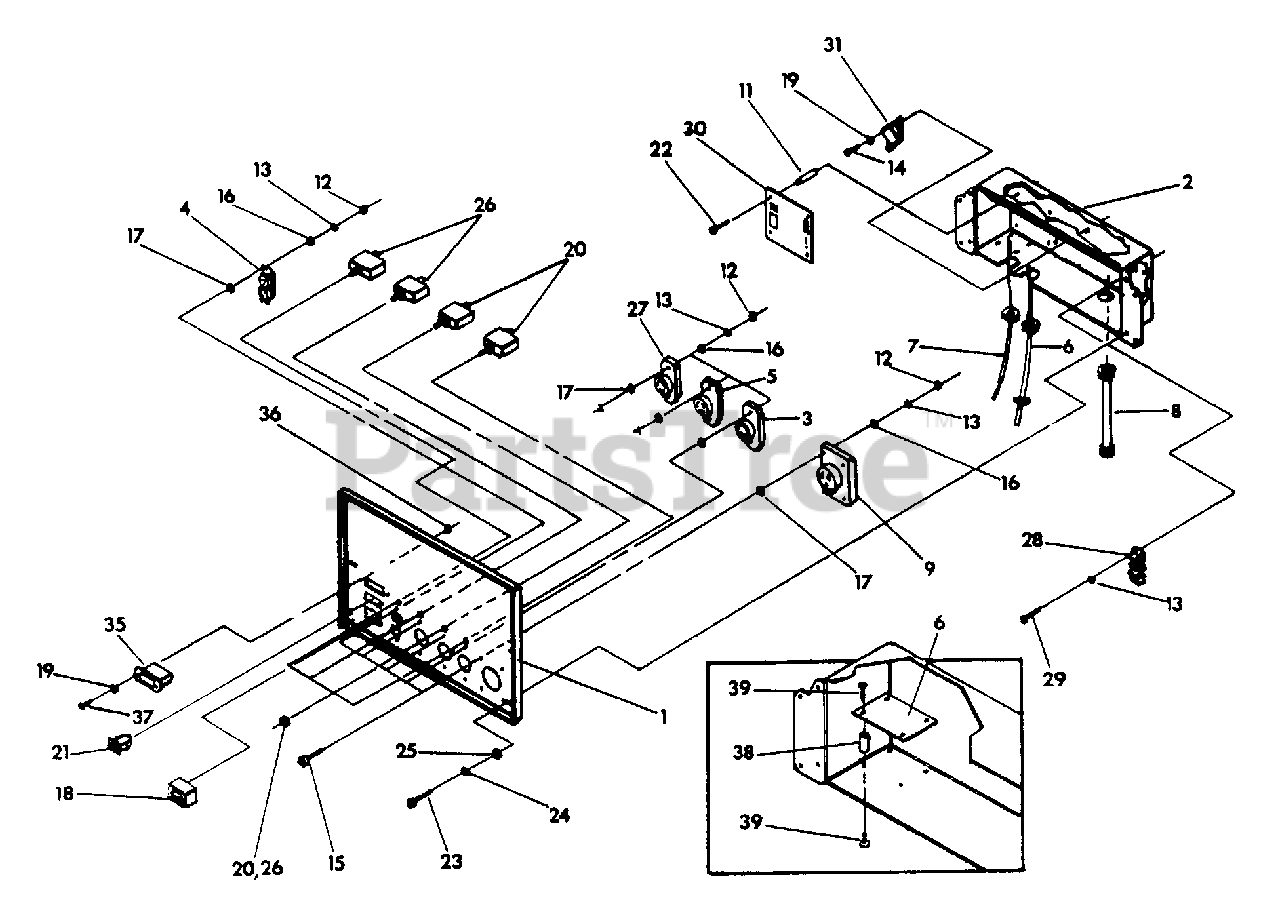

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 94182

Control panel

$

$

Not available

2

Briggs & Stratton 95906

Control box

$

$

Currently unavailable

3

Briggs & Stratton 43437

120/240 volts, 30 amp Locking type outlet

$

$

Not available

4

Briggs & Stratton 80409

120 volts, 20 amp GFCI Outlet
(Superseded to 80409GS)

$102.99

$

In Stock, Qty 5

0

5

Briggs & Stratton 68868

120 volts, 30 amp Locking type outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 83970

System control board
(Superseded to 83970GS)

$

$

Not available

7

Briggs & Stratton 96061

Engine harness assembly

$

$

Currently unavailable

8

Briggs & Stratton 84134

Rubber connector
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 74191

250 V, 50 A Receptacle
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 93929

1/2" Hex stand-off
(Superseded to 93929GS)

$1.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

#8 Lockwasher

$

$

Not available

14

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

16

Briggs & Stratton 38150

#8 Flatwasher
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

#8 Shakeproof washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 66817

Illuminated switch
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 43182

M3 Lockwasher
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

20

75207A

30 amp Circuit breaker

$

$

Not available

21

Briggs & Stratton 78653

On-off switch
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 93986

M3-0.5 x 20mm Screw
(Superseded to 93986GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 91526

M5-0.8 x 12mm Screw

$

$

Not available

24

Briggs & Stratton 49226

M5 Lockwasher
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 23897

M5 Flatwasher
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207

20 amp Circuit breaker
(Superseded to 209872GS)

$9.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 74190

120 volts, 20 amp Locking type outlet

$

$

Not available

28

Briggs & Stratton 92953

Terminal block
(Superseded to 92953GS)

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 80077

M4 x 20mm Screw
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 94117

Idle control board
(Superseded to 791680)

$3.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 84028

Idle control transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 77604

Hour meter
(Superseded to 77604GS)

$112.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 51714

M3-0.5 Hex nut
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 55823

M3-0.5 x 16mm Screw
(Superseded to 55823GS)

$1.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 64525

3/4" Hex stand-off

$

$

Currently unavailable

39

Briggs & Stratton 64526

#6-32 x 3/8" Screw

$

$

Not available
