1N168 (9862-0) - Generac 8,000 Watt Portable Generator Generator Parts Diagram

8,000 Watt Portable Generator

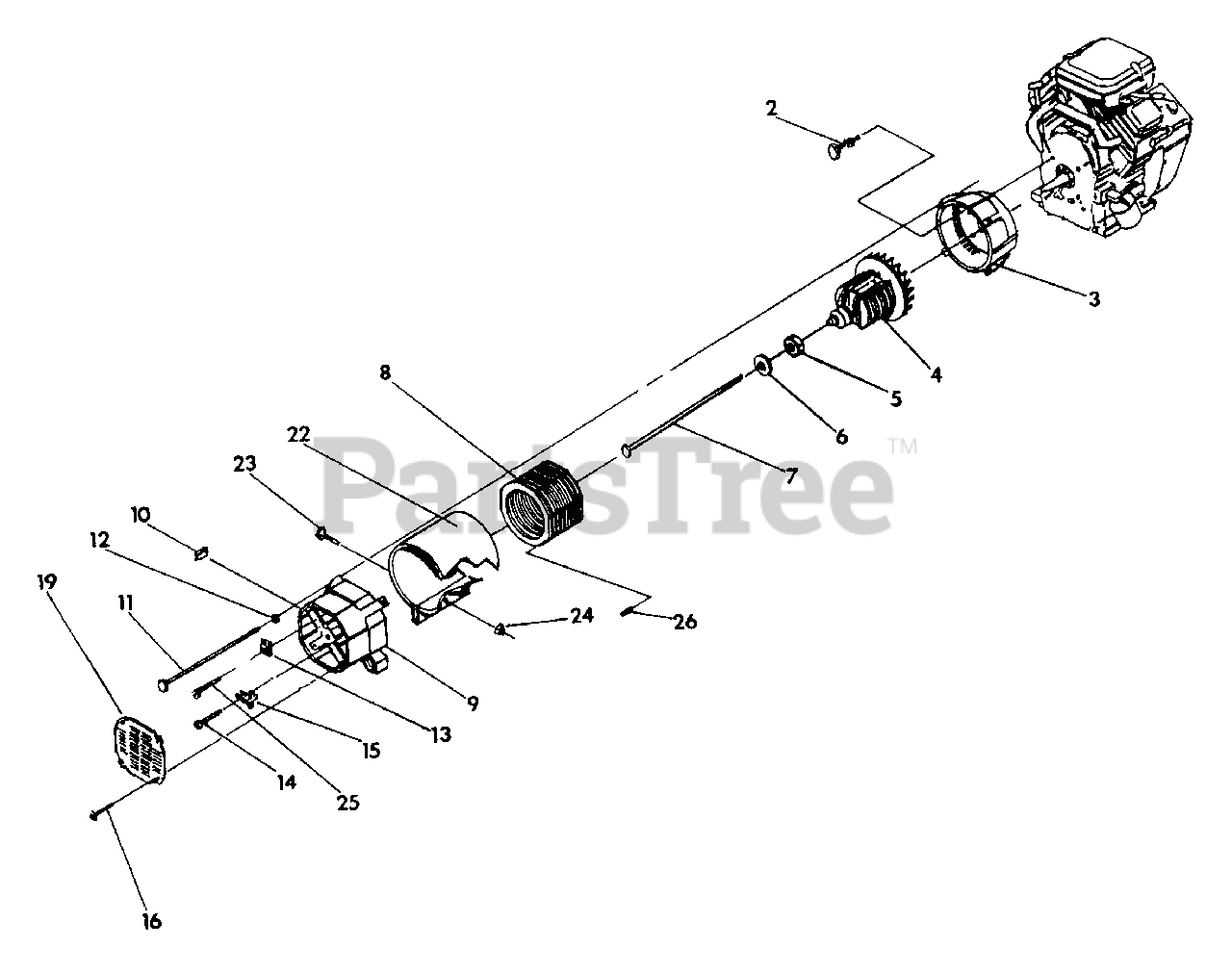

Generator Parts Diagram

  • Title
2

5/16"-24 x 3/4" Screw

Note: Standard hardware item, available locally

$

$

Not available

3

Briggs & Stratton 66365G

Engine adaptor housing
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92553

Rotor assembly

$

$

Currently unavailable

5

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 67451

Flat washer (special)

$

$

Currently unavailable

7

Briggs & Stratton 51810

5/16"-24 x 11" Rotor bolt
(Superseded to 51810GS)

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 94986G

Stator assembly
(Superseded to 94986GGS)

$1333.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 66825B

Rear bearing carrier

$

$

Currently unavailable

10

Briggs & Stratton 67022

Bearing carrier grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66449K

M6-1.0 x 20mm Stator Bolt
(Superseded to 66449LGS)

$30.99

$

Usually ships in 2-12 days

0

12

M6 Lockwasher

Note: Standard hardware item, available locally

$

$

Not available

13

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

14

Briggs & Stratton 66849

M5-0.8 x 16mm Screw
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 66386

Brush holder assembly
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 74908

M5-0.8 x 10mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 78388

Rear bearing carrier panel
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 81887D

Alternator wrapper

$

$

Not available

23

Briggs & Stratton 52618

M5-0.8 x 12mm Screw
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

24

M5-0.8 Locking nut

Note: Standard hardware item, available locally

$

$

Not available

25

Briggs & Stratton 66849A

M5-0.8 x 20mm Screw
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 81917

Roll pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0
