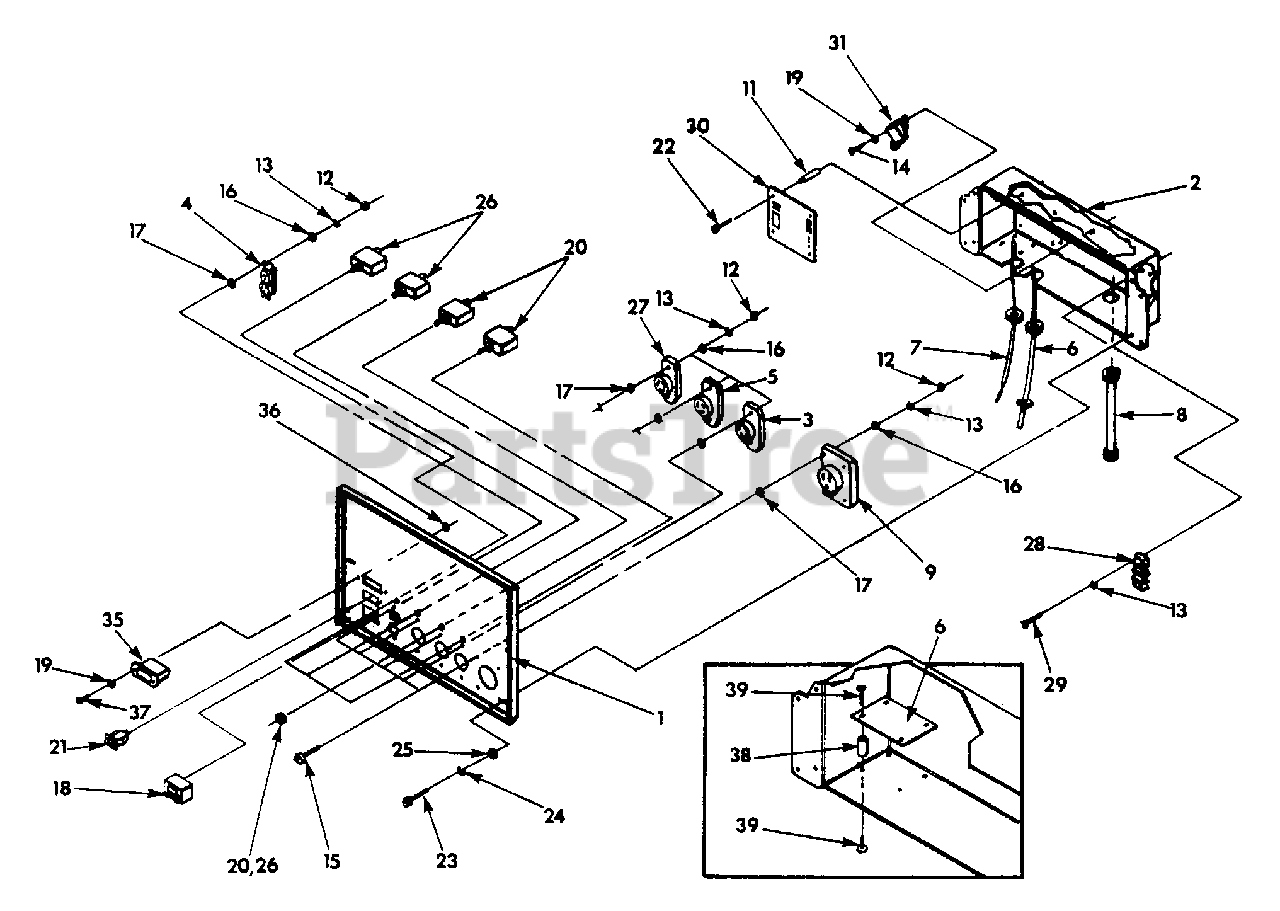

1N168A (9862-1) - Generac 8,000 Watt Portable Generator Control Panel Parts Diagram

8,000 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 94182

Control panel

$

$

Not available

2

Briggs & Stratton 95906

Control box

$

$

Currently unavailable

3

Briggs & Stratton 43437

120/240 volts, 30-amp Locking type outlet

$

$

Not available

4

Briggs & Stratton 80409

120-volt, 20-amp GFCI duplex outlet
(Superseded to 80409GS)

$102.99

$

In Stock, Qty 5

0

5

Briggs & Stratton 68868

120-volt, 30-amp Locking type outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 83970

System control board
(Superseded to 83970GS)

$

$

Not available

7

Briggs & Stratton 96061

Engine harness assembly

$

$

Currently unavailable

8

Briggs & Stratton 84134

Rubber grommet connector
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 74191

250-volt, 50-amp outlet
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 93929

1/2" Long Hex stand off
(Superseded to 93929GS)

$1.99

$

Usually ships in 2-12 days

0

12

M4-0.7 Hex nut

Note: Standard hardware item, available locally.

$

$

Not available

13

#8 Lockwasher

Note: Standard hardware item, available locally.

$

$

Not available

14

M3-0.5 x 10mm Screw

Note: Standard hardware item, available locally.

$

$

Not available

15

M4-0.7 x 10mm Screw

Note: Standard hardware item, available locally.

$

$

Not available

16

#8 Flatwasher

Note: Standard hardware item, available locally.

$

$

Not available

17

#8 Shakeproof washer

Note: Standard hardware item, available locally.

$

$

Not available

18

Briggs & Stratton 66817

Illuminated switch
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

19

M3 Lockwasher

Note: Standard hardware item, available locally.

$

$

Not available

20

75207A

30-amp Circuit breaker

$

$

Not available

21

Briggs & Stratton 82538

On-off switch
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

22

M3-0.5 x 20mm Screw

Note: Standard hardware item, available locally.

$

$

Not available

23

M5-0.8 x 12mm Screw

Note: Standard hardware item, available locally.

$

$

Not available

24

M5 Lockwasher

Note: Standard hardware item, available locally.

$

$

Not available

25

M5 Flatwasher

Note: Standard hardware item, available locally.

$

$

Not available

26

Briggs & Stratton 75207

20-amp Circuit breaker
(Superseded to 209872GS)

$9.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 74190

120 volts, 20-amp Locking type outlet

$

$

Not available

28

Briggs & Stratton 92953

50A, 3-pos. Terminal block
(Superseded to 92953GS)

$17.99

$

Usually ships in 2-12 days

0

29

M4-0.7 x 20mm Screw

Note: Standard hardware item, available locally.

$

$

Not available

30

Briggs & Stratton 94117

Idle control board
(Superseded to 791680)

$3.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 84028

Idle control transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 77604

Hour meter
(Superseded to 77604GS)

$112.99

$

Usually ships in 2-12 days

0

36

M3-0.5 Hex nut

Note: Standard hardware item, available locally.

$

$

Not available

37

M3-0.5 x 16mm Screw

Note: Standard hardware item, available locally.

$

$

Not available

38

Briggs & Stratton 64525

3/4" Hex stand off

$

$

Currently unavailable

39

#6-32 x 3/8" Tap screw

Note: Standard hardware item, available locally.

$

$

Not available

40

Briggs & Stratton 84135

Rubber grommet
(Superseded to 84135GS)

$3.99

$

Usually ships in 2-12 days

0
