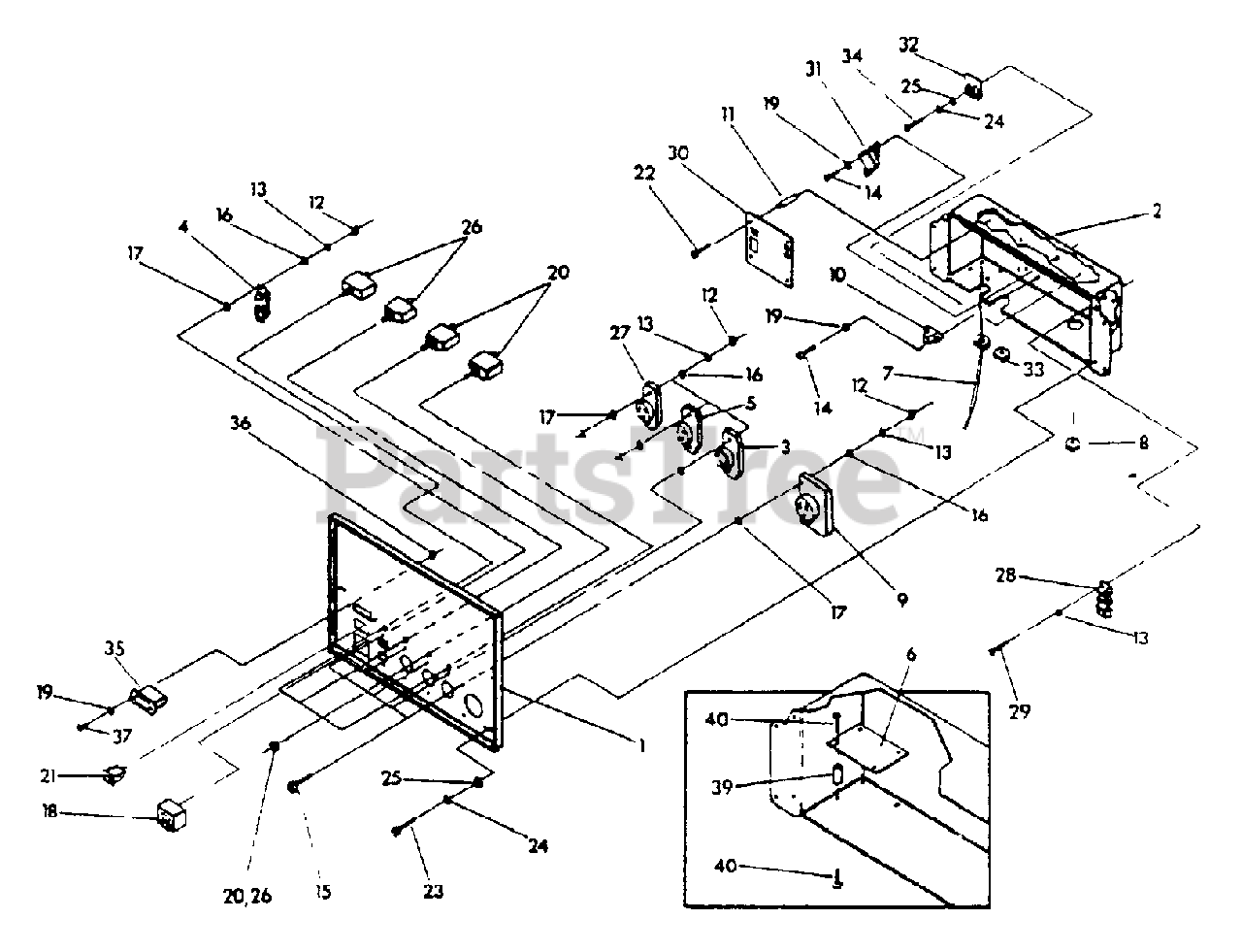

1N169 (9863-0) - Generac 10,000 Watt Portable Generator Control Panel (10/95) Parts Diagram

10,000 Watt Portable Generator

Control Panel (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 94182

Control panel

$

$

Not available

2

Briggs & Stratton 95906

Control box

$

$

Currently unavailable

3

Briggs & Stratton 43437

120/240 volts, 30-amp Locking type outlet

$

$

Not available

4

Briggs & Stratton 80409

120-volt, 20-amp GFCI duplex outlet
(Superseded to 80409GS)

$102.99

$

In Stock, Qty 5

0

5

Briggs & Stratton 68868

120-volt, 30-amp Locking type outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 96476

System control board
(Superseded to 96476GS)

$336.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 96235

Engine harness assembly
(Superseded to 96235GS)

$135.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 90576

Rubber grommet connector
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 74191

250-volt, 50-amp outlet
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 87962

12V, 10A Circuit breaker
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 93929

1/2" long Hex stand off
(Superseded to 93929GS)

$1.99

$

Usually ships in 2-12 days

0

12

-----

M4-0.7 Hex nut

$

$

Not available

13

-----

#8 Lockwasher

$

$

Not available

14

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

16

-----

#8 Flatwasher

$

$

Not available

17

-----

#8 Shakeproof washer

$

$

Not available

18

Briggs & Stratton 66817

Illuminated switch
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

19

-----

M3 Lockwasher

$

$

Not available

20

75207A

30-amp Circuit breaker

$

$

Not available

21

Briggs & Stratton 78653

On-off switch
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 93986

M3-0.5 x 20mm Screw
(Superseded to 93986GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 91526

M5-0.8 x 12mm Screw

$

$

Not available

24

-----

M5 Lockwasher

$

$

Not available

25

-----

M5 Flatwasher

$

$

Not available

26

Briggs & Stratton 75207

20-amp Circuit breaker
(Superseded to 209872GS)

$9.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 74190

120 volts, 20-amp Locking type outlet

$

$

Not available

28

Briggs & Stratton 92953

50A, 3-pos. Terminal block
(Superseded to 92953GS)

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 80077

M4-0.7 x 20mm Screw
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 94117

Idle control board
(Superseded to 791680)

$3.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 84028

Idle control transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

33

Briggs & Stratton 84135

Rubber grommet
(Superseded to 84135GS)

$3.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 76040

M5-0.8 x 16mm Screw
(Superseded to 76040GS)

$2.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 77604

Hour meter
(Superseded to 77604GS)

$112.99

$

Usually ships in 2-12 days

0

36

-----

M3-0.5 Hex nut

$

$

Not available

37

Briggs & Stratton 55823

M3-0.5 x 16mm Screw
(Superseded to 55823GS)

$1.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 64525

3/4" Hex stand off

$

$

Currently unavailable

40

-----

#6-32 x 3/8" Tap screw

$

$

Not available
