1N170 (9864-0) - Generac 1,350 Watt Portable Generator Generator Parts Diagram

1,350 Watt Portable Generator

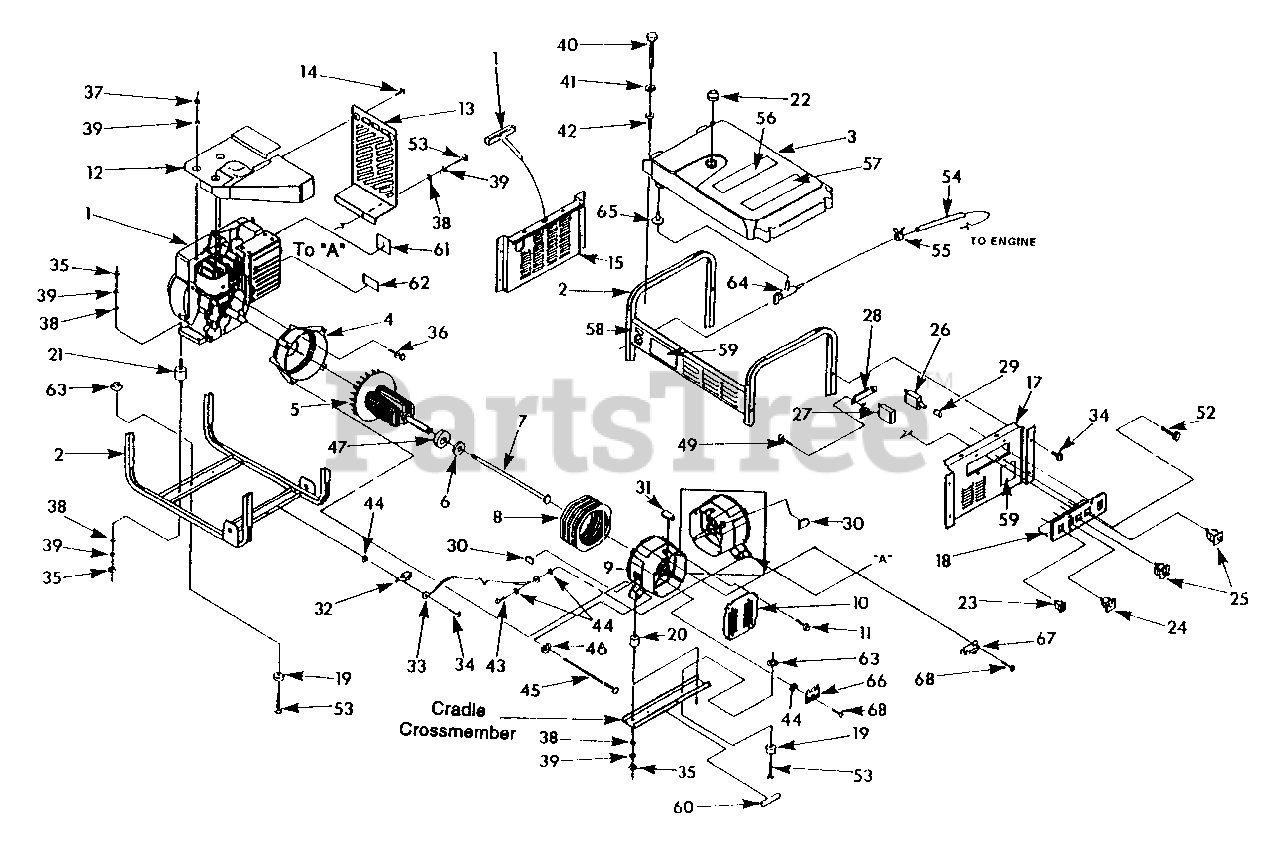

Generator Parts Diagram

  • Title

1

Briggs & Stratton 93687

Briggs & Stratton engine
(Superseded to 690307)

$8.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 96123

Cradle

$

$

Currently unavailable

3

93941

Fuel tank

$

$

Not available

4

Briggs & Stratton 66365F

Engine adaptor
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 93705G

Rotor
(Superseded to 93705GGS)

$186.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 67451

Flatwasher

$

$

Currently unavailable

7

Briggs & Stratton 75444

Rotor bolt
(Superseded to 75444GS)

$14.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 93706G

Stator assembly
(Superseded to 93706GGS)

$226.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 93686

Rear bearing carrier
(Superseded to 691044)

$3.99

$

In Stock, Qty 11

0

10

Briggs & Stratton 67025

Rear bearing cover

$

$

Currently unavailable

11

M5-0.8 x 10mm Screw

Note: Standard hardware item, available locally.

$

$

Not available

12

Briggs & Stratton 93628

Heat shield

$

$

Not available

13

Briggs & Stratton 93638

Muffler guard
(Superseded to 93638GS)

$19.99

$

Usually ships in 2-12 days

0

14

#10-24 x 3/8" Screw

Note: Standard hardware item, available locally.

$

$

Not available

15

Briggs & Stratton 95160

Recoil enclosure panel
(Superseded to 691148)

$3.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 95159

Alternator panel enclosure
(Superseded to 95159GS)

$57.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 93702

Plastic control panel

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 87841

Foot pad
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 66443B

Vibration mount
(Superseded to 66443BGS)

$20.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 85651

Vibration mount
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94133

Fuel cap
(Superseded to 94133GS)

$19.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 78653

Shut-off switch
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 90418

12-volt DC outlet
(Superseded to 90418GS)

$

$

Not available

25

Briggs & Stratton 66818

120-volt AC outlet
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207D

15 amp Circuit breaker
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 83514

10 amp Circuit breaker
(Superseded to 83514GS)

$10.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 93857

Retaining bar
(Superseded to 93857GS)

$15.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 84198

Plastic cap
(Superseded to 84198GS)

$4.49

$

In Stock, only 2 left!

0

30

Briggs & Stratton 67022

Rubber grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84242

Plastic cap
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 25433

Ground lug

$

$

Not available

33

14353621

Ground wire assembly

$

$

Not available

34

Briggs & Stratton 86292

Self-drilling screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

35

8mm Hex nut

Note: Standard hardware item, available locally.

$

$

Not available

36

5/16" x 3/4" Capscrew

Note: Standard hardware item, available locally.

$

$

Not available

37

5/16" Hex nut

Note: Standard hardware item, available locally.

$

$

Not available

38

5/16" Flatwasher

Note: Standard hardware item, available locally.

$

$

Not available

39

5/16" Lockwasher

Note: Standard hardware item, available locally.

$

$

Not available

40

Briggs & Stratton 79816

M6 x 35mm Black capscrew

$

$

Not available

41

Briggs & Stratton 78830

Washer
(Superseded to 78830GS)

$1.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 83465

Rubber tank mount
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

43

M6 x 12mm Capscrew

Note: Standard hardware item, available locally.

$

$

Not available

44

1/4" Shakeproof washer

Note: Standard hardware item, available locally.

$

$

Not available

45

M6 x 60mm Capscrew

Note: Standard hardware item, available locally.

$

$

Not available

46

M6 Lockwasher

Note: Standard hardware item, available locally.

$

$

Not available

47

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

49

3.5 x 18mm Screw

Note: Standard hardware item, available locally.

$

$

Not available

52

M4 x 12mm Screw

Note: Standard hardware item, available locally.

$

$

Not available

53

M8 x 20mm Capscrew

Note: Standard hardware item, available locally.

$

$

Not available

54

Briggs & Stratton 30340

12" Fuel hose

$3155.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 48031C

Hose clamp

$

$

Not available

56

Briggs & Stratton 92982

Danger decal
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

57

Briggs & Stratton 93826

Instructions decal
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 73054

Fuel shut-off decal

$

$

Not available

59

Briggs & Stratton 96479

Dayton panel decal

$

$

Currently unavailable

60

Briggs & Stratton 67210A

Ground decal
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 92758

Data decal
(Superseded to 92758GS)

$2.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 81886

STA-BIL decal
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0

63

M8 Locking flange nut

Note: Standard hardware item, available locally.

$

$

Not available

64

Briggs & Stratton 80270

Plastic fuel valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

65

Briggs & Stratton 78299

Tank bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

66

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

67

Briggs & Stratton 91825

Bridge rectifier and brush holder

$

$

Not available

68

M5-0.8 x 20mm Screw

Note: Standard hardware item, available locally.

$

$

Not available
