1N171 (9868-0) - Generac 5,000 Watt Portable Generator Control Panel Parts Diagram

5,000 Watt Portable Generator

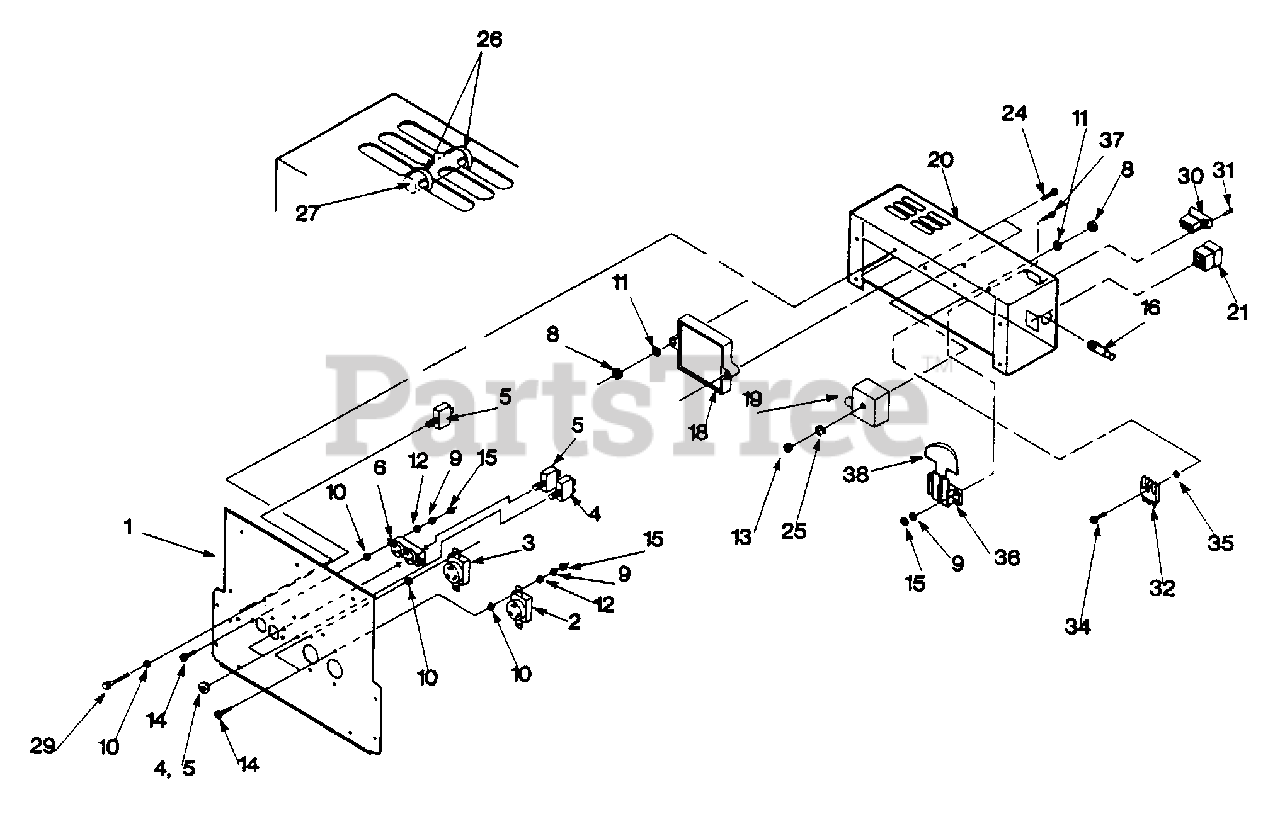

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 86320

Control panel

$

$

Currently unavailable

2

Briggs & Stratton 68867

120/240-Volt, Outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 68868

120V, 30A, Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

4

75207A

120A, 30A Circuit breaker

$

$

Not available

5

Briggs & Stratton 75207

120V,20A Circuit breaker
(Superseded to 209872GS)

$9.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 68759

120V, 20A Duplex outlet
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 95079

Control panel silkscreen

$

$

Currently unavailable

8

Briggs & Stratton 22158

#10-32 Hex nut
(Superseded to 5022158)

$30.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 22264

#8 Lockwasher

$

$

Not available

10

Briggs & Stratton 23365

#8 Shakeproof washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 22152

#10 Lockwasher
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 38150

#8 Flatwasher
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22188

#6-32 Hex nut

$

$

Currently unavailable

14

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

15

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 34303

Starting switch

$

$

Currently unavailable

17

Briggs & Stratton 27565

P-248, 40mm Electric tape

$

$

Currently unavailable

18

Briggs & Stratton 83049

AC voltage regulator
(Superseded to 83049GS)

$313.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 40366

120-volt AC Relay
(Superseded to 7040604YP)

$18.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 95606

Control panel back

$

$

Currently unavailable

21

Briggs & Stratton 63993

9-pin Connector

$

$

Currently unavailable

22

Briggs & Stratton 74094

1/4" "Y" connector
(Superseded to 74094GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 33534

#10-32 x 1-1/8" Screw

$

$

Currently unavailable

25

Briggs & Stratton 22155

#6 Lockwasher
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 28739A

Tie wrap
(Superseded to 28739AGS)

$1.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 77244

Field boost assembly

$

$

Currently unavailable

28

Briggs & Stratton 74655

3/16" "Y" connector

$

$

Currently unavailable

29

Briggs & Stratton 63036

#8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 22694

Receptacle housing (black)
(Superseded to 22694GS)

$5.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 66855

Rivet

$

$

Currently unavailable

32

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

34

Briggs & Stratton 33531

#10-32 x 3/4" Screw

$

$

Currently unavailable

35

Briggs & Stratton 22769

#10 Internal lockwasher
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 48766

2 place #6SC Terminal block

$

$

Currently unavailable

37

Briggs & Stratton 51787

M4-0.7 x 16mm Capscrew

$

$

Not available

38

Briggs & Stratton 95422

Diode assembly

$

$

Currently unavailable
