1P65B0B - Cub Cadet Engine (2010) Engine Assembly 1P65B0B Parts Diagram

Engine

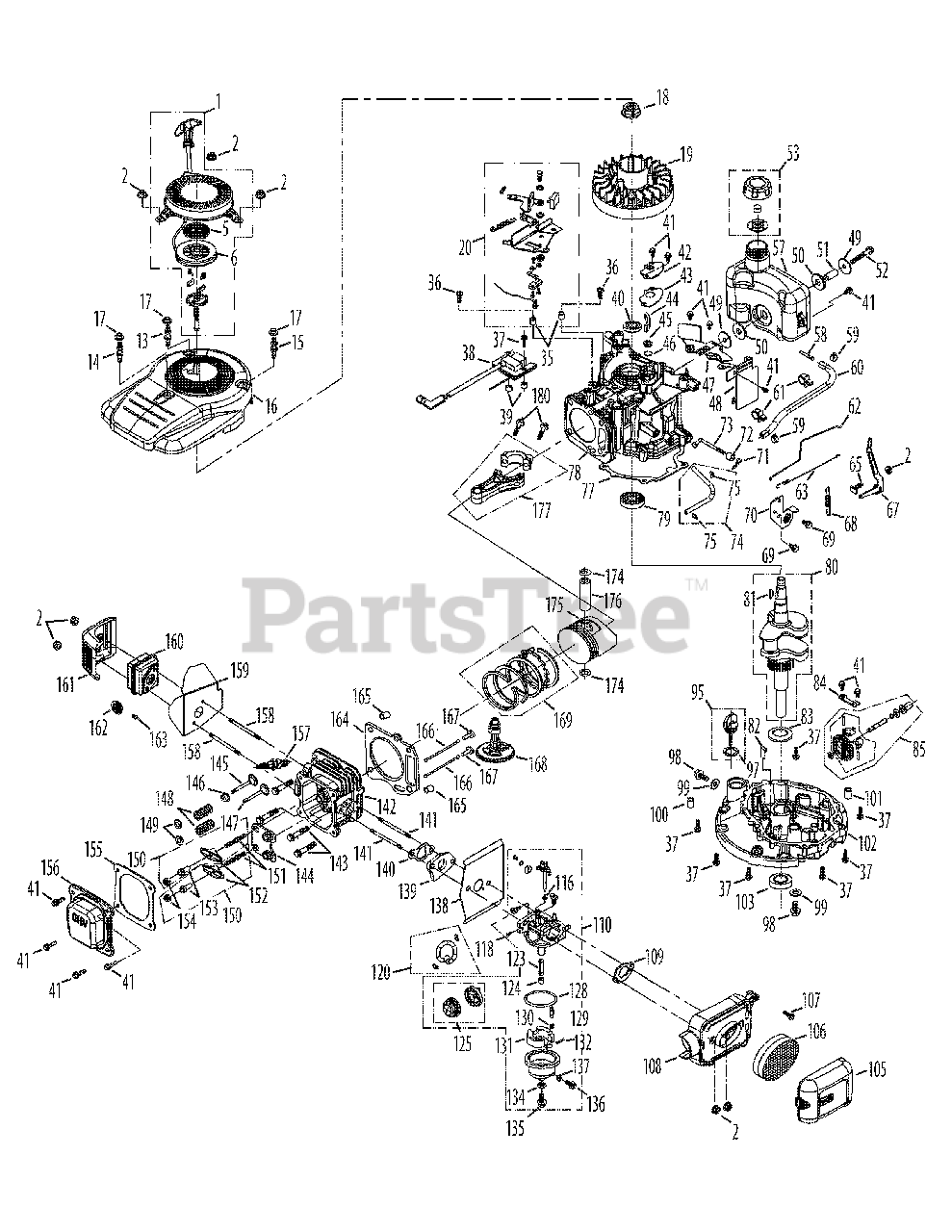

Engine Assembly 1P65B0B Parts Diagram

  • Title

1

Cub Cadet 951-11720

Recoil Starter Assembly
(Superseded to 951-12683)

$97.99

$

In Stock, only 2 left!

0

2

Cub Cadet 712-04212

Nut M6 X 10 Mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 18

0

5

Spring

Note: Furnish 951-11721, Recoil Pulley & Spring Assembly

$

$

Not available

6

Pulley

Note: Furnish 951-11721, Recoil Pulley & Spring Assembly

$

$

Not available

13

Cub Cadet 751-11722

Starter/Shroud Stud Black M6 x 75

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 951-11723

Starter/Shroud Stud Front M6 x 75.3

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-11724

Starter/Shroud Stud White M6-73

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-05692

Engine Shroud (M0)
(Superseded to 931-05692)

$41.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 750-05320

Engine Shroud Spacer

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-04221

Flywheel Nut M14
(Superseded to 712-04287)

$7.49

$

In Stock, Qty 9

0

19

Cub Cadet 951-11043

Flywheel

$155.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 951-10320A

Brake Assembly

$42.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 750-05384

Brake Spacer

$4.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-04980

Brake Assy Bolt M6×35

$4.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-04920

Bolt M6x28
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-04920

Bolt M6×28
(Superseded to 710-04931)

Note: Furnish 951-11747, Shortblock Assembly

$6.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 951-10367

Ignition Coil Assembly

$109.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 951-11675

Ignition Coil Spacer

$3.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 951-11596

Upper Crankshaft Seal

$6.99

$

In Stock, only 1 left!

0

40

Cub Cadet 951-11596

Upper Crankshaft Seal

Note: Furnish 951-11709, Gasket Kit, Complete

$6.99

$

In Stock, only 1 left!

0

40

Cub Cadet 951-11596

Upper Crankshaft Seal

Note: Furnish 951-11747, Shortblock Assembly

$6.99

$

In Stock, only 1 left!

0

41

Cub Cadet 710-04916

Bolt M6×14

$4.99

$

In Stock, Qty 5

0

41

Cub Cadet 710-04916

Bolt M6×14

Note: Furnish 951-11747, Shortblock Assembly

$4.99

$

In Stock, Qty 5

0

42

Cub Cadet 951-11728

Breather Cover Plate

$7.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-11728

Breather Cover Plate

Note: Furnish 951-11747, Shortblock Assembly

$7.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-11729

Breather Gasket

$5.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-11729

Breather Gasket

Note: Furnish 951-11710, Gasket Kit External

$5.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-11729

Breather Gasket

Note: Furnish 951-11709, Gasket Kit, Complete

$5.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-11729

Breather Gasket

Note: Furnish 951-11747, Shortblock Assembly

$5.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-11730

Breather Screen

$5.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-11730

Breather Screen

Note: Furnish 951-11747, Shortblock Assembly

$5.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 732-04718

Breather Spring

$4.99

$

In Stock, only 1 left!

0

45

Cub Cadet 732-04718

Breather Spring

Note: Furnish 951-11747, Shortblock Assembly

$4.99

$

In Stock, only 1 left!

0

46

Cub Cadet 951-11735

Breather Valve

$3.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 951-11735

Breather Valve

Note: Furnish 951-11747, Shortblock Assembly

$3.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 951-11542

Fuel Tank Bottom Bracket

$10.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-11748

Tank/Label Bracket

$7.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 736-04456

Fuel Tank Washer

$

$

Not available

50

Cub Cadet 951-10335

Rubber Bushing

$5.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 750-05322

Fuel Tank Bushing

$4.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 710-04922

Tank Bolt M8x50

$4.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 951-10300

Fuel Cap Assembly

$11.99

$

In Stock, Qty 9

0

57

Cub Cadet 951-10337

Fuel Tank Assembly

$60.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-10358

Fuel Filter
(Superseded to 951-12296A)

$10.99

$

In Stock, Qty 20+

0

58

Cub Cadet 951-10358

Fuel Filter
(Superseded to 951-12296A)

Note: Furnish 951-10363, Fuel Line Kit

$10.99

$

In Stock, Qty 20+

0

59

Cub Cadet 951-11731

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

In Stock, Qty 7

0

59

Cub Cadet 951-11731

Fuel Hose Clamp
(Superseded to 951-11700A)

Note: Furnish 951-10363, Fuel Line Kit

$4.49

$

In Stock, Qty 7

0

60

Fuel Hose

Note: Furnish 951-10363, Fuel Line Kit

$

$

Not available

61

Cub Cadet 723-04071

Plastic Support Clamp
(Superseded to 723-04071A)

$3.49

$

In Stock, Qty 6

0

62

Cub Cadet 951-11677

Throttle Linkage

$8.49

$

In Stock, only 1 left!

0

63

Cub Cadet 951-11522

Throttle Linkage Spring

$6.49

$

In Stock, only 2 left!

0

65

Cub Cadet 710-04908

Governor Arm Bolt

$6.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-11523

Governor Arm

$9.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 951-10293

Governor Spring

$

$

Not available

69

Cub Cadet 710-04915

Bolt M6×12

$4.99

$

In Stock, only 3 left!

0

70

Cub Cadet 951-11544

Throttle/Governor Bracket

$7.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 714-04074

Governor Cotter Pin
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

71

Cub Cadet 714-04074

Governor Cotter Pin
(Superseded to 714-04078)

Note: Furnish 951-11747, Shortblock Assembly

$4.49

$

In Stock, only 1 left!

0

72

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902A)

$4.49

$

In Stock, only 2 left!

0

72

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902A)

Note: Furnish 951-11709, Gasket Kit, Complete

$4.49

$

In Stock, only 2 left!

0

72

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902A)

Note: Furnish 951-11747, Shortblock Assembly

$4.49

$

In Stock, only 2 left!

0

73

Cub Cadet 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$10.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

Note: Furnish 951-11747, Shortblock Assembly

$10.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-11725

Breather Hose Assembly

$6.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 726-04101

Breather Hose Clamp

$4.99

$

In Stock, only 2 left!

0

77

Cub Cadet 951-11732

Crankcase Cover Gasket

$13.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 951-11732

Crankcase Cover Gasket

Note: Furnish 951-11709, Gasket Kit, Complete

$13.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 951-11732

Crankcase Cover Gasket

Note: Furnish 951-11747, Shortblock Assembly

$13.99

$

Usually ships in 3-6 days

0

78

Crankcase

Note: Furnish 951-11747, Shortblock Assembly

$

$

Not available

79

Cub Cadet 951-11369

Main Bearing

$36.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 951-11369

Main Bearing

Note: Furnish 951-11747, Shortblock Assembly

$36.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-11591

Crankshaft Assembly

$249.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-11591

Crankshaft Assembly

Note: Furnish 951-11747, Shortblock Assembly

$249.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, only 2 left!

0

81

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

Note: Furnish 951-11747, Shortblock Assembly

$2.49

$

In Stock, only 2 left!

0

82

Cub Cadet 951-11733

Oil Return Seal

$5.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 736-04491

Crankshaft Thrust Washer

$4.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 736-04491

Crankshaft Thrust Washer

Note: Furnish 951-11747, Shortblock Assembly

$4.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-11609

Governor Gear Mounting Plate

$5.49

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-11609

Governor Gear Mounting Plate

Note: Furnish 951-11747, Shortblock Assembly

$5.49

$

Usually ships in 3-6 days

0

85

Cub Cadet 951-11549

Governor Gear/Shaft Assembly

$12.99

$

In Stock, only 1 left!

0

85

Cub Cadet 951-11549

Governor Gear/Shaft Assembly

Note: Furnish 951-11747, Shortblock Assembly

$12.99

$

In Stock, only 1 left!

0

95

Cub Cadet 951-10617

Dipstick Assembly

$18.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 951-11734

Dipstick O-Ring

$4.49

$

Usually ships in 3-6 days

0

97

Cub Cadet 951-11734

Dipstick O-Ring

Note: Furnish 951-11710, Gasket Kit External

$4.49

$

Usually ships in 3-6 days

0

97

Dipstick O-Ring

Note: Furnish 951-11709, Gasket Kit, Complete

$

$

Not available

98

Cub Cadet 710-04906

Oil Drain Plug

$7.49

$

In Stock, Qty 11

0

98

Cub Cadet 710-04906

Oil Drain Plug

Note: Furnish 951-11747, Shortblock Assembly

$7.49

$

In Stock, Qty 11

0

98

Cub Cadet 710-04906

Oil Drain Plug

Note: Furnish 951-10370, Oil Drain Play & Washer Assembly

$7.49

$

In Stock, Qty 11

0

99

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$7.49

$

In Stock, Qty 12

0

99

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

Note: Furnish 951-11710, Gasket Kit External

$7.49

$

In Stock, Qty 12

0

99

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

Note: Furnish 951-11709, Gasket Kit, Complete

$7.49

$

In Stock, Qty 12

0

99

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

Note: Furnish 951-11747, Shortblock Assembly

$7.49

$

In Stock, Qty 12

0

99

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

Note: Furnish 951-10370, Oil Drain Play & Washer Assembly

$7.49

$

In Stock, Qty 12

0

100

Cub Cadet 715-04089

Crankcase Cover Dowel 9x14

$3.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 715-04089

Crankcase Cover Dowel 9x14

Note: Furnish 951-11747, Shortblock Assembly

$3.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 715-04092

Crankcase Cover Dowel 7x14
(Superseded to 715-04096A)

$4.49

$

In Stock, only 2 left!

0

101

Cub Cadet 715-04092

Crankcase Cover Dowel 7x14
(Superseded to 715-04096A)

Note: Furnish 951-11747, Shortblock Assembly

$4.49

$

In Stock, only 2 left!

0

102

Crankcase Cover

Note: Furnish 951-11747, Shortblock Assembly

$

$

Not available

103

Cub Cadet 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

$10.99

$

In Stock, only 2 left!

0

103

Cub Cadet 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

Note: Furnish 951-11709, Gasket Kit, Complete

$10.99

$

In Stock, only 2 left!

0

103

Cub Cadet 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

Note: Furnish 951-11747, Shortblock Assembly

$10.99

$

In Stock, only 2 left!

0

105

Outer Air Filter Cover

Note: Furnish 951-10739, Air Cleaner Housing Assembly

$

$

Not available

106

Cub Cadet 951-10732

Air Filter Element, Oval

$12.99

$

In Stock, Qty 6

0

107

Cub Cadet 710-04969

A/F Base Bolt M6×30

$4.49

$

In Stock, Qty 11

0

108

Inner Air Filter Housing

Note: Furnish 951-10739, Air Cleaner Housing Assembly

$

$

Not available

109

Cub Cadet 951-11527

Carburetor Gasket Plate

$4.99

$

In Stock, only 2 left!

0

109

Cub Cadet 951-11527

Carburetor Gasket Plate

Note: Furnish 951-11747, Shortblock Assembly

$4.99

$

In Stock, only 2 left!

0

110

Cub Cadet 951-11707

Carburetor Assembly

$102.99

$

In Stock, only 2 left!

0

116

Fiber O-Ring

Note: Furnish 951-11708, Carburetor Kit Major

$

$

Not available

118

Idle Speed Adjusting Screw

Note: Furnish 951-11708, Carburetor Kit Major

$

$

Not available

120

Cub Cadet 951-11736

Primer Hose Assembly

$5.99

$

In Stock, Qty 12

0

123

Main Nozzle (Emulsion Tube)

Note: Furnish 951-11708, Carburetor Kit Major

$

$

Not available

124

Main Jet

Note: Furnish 951-11708, Carburetor Kit Major

$

$

Not available

125

Cub Cadet 951-10639A

Primer Assembly

$

$

Not available

128

Cub Cadet 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$7.49

$

In Stock, Qty 20+

0

128

Cub Cadet 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

Note: Furnish 951-11708, Carburetor Kit Major

$7.49

$

In Stock, Qty 20+

0

129

Needle Valve

Note: Furnish 951-11708, Carburetor Kit Major

$

$

Not available

130

Needle Valve Spring

Note: Furnish 951-11708, Carburetor Kit Major

$

$

Not available

131

Float

Note: Furnish 951-11708, Carburetor Kit Major

$

$

Not available

132

Float Pin

Note: Furnish 951-11708, Carburetor Kit Major

$

$

Not available

134

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$6.49

$

In Stock, Qty 20+

0

134

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

Note: Furnish 951-11708, Carburetor Kit Major

$6.49

$

In Stock, Qty 20+

0

135

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

136

Cub Cadet 710-04903

Fuel Drain Plug
(Superseded to 710-04938)

$4.49

$

In Stock, Qty 5

0

137

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

137

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

Note: Furnish 951-11708, Carburetor Kit Major

$4.49

$

In Stock, Qty 20+

0

138

Cub Cadet 951-11737

Carburetor Gasket

$5.99

$

In Stock, only 2 left!

0

138

Cub Cadet 951-11737

Carburetor Gasket

Note: Furnish 951-11710, Gasket Kit External

$5.99

$

In Stock, only 2 left!

0

138

Carburetor Gasket

Note: Furnish 951-11709, Gasket Kit, Complete

$

$

Not available

139

Cub Cadet 951-11738

Carburetor Insulator
(Superseded to 951-11738A)

$5.99

$

In Stock, Qty 6

0

139

Cub Cadet 951-11738

Carburetor Insulator
(Superseded to 951-11738A)

Note: Furnish 951-11710, Gasket Kit External

$5.99

$

In Stock, Qty 6

0

139

Cub Cadet 951-11738

Carburetor Insulator
(Superseded to 951-11738A)

Note: Furnish 951-11709, Gasket Kit, Complete

$5.99

$

In Stock, Qty 6

0

139

Cub Cadet 951-11738

Carburetor Insulator
(Superseded to 951-11738A)

Note: Furnish 951-11746, Cylinder Head

$5.99

$

In Stock, Qty 6

0

139

Cub Cadet 951-11738

Carburetor Insulator
(Superseded to 951-11738A)

Note: Furnish 951-11747, Shortblock Assembly

$5.99

$

In Stock, Qty 6

0

140

Cub Cadet 951-11528

Carburetor Insulator Gasket

$4.99

$

In Stock, Qty 20+

0

140

Cub Cadet 951-11528

Carburetor Insulator Gasket

Note: Furnish 951-11710, Gasket Kit External

$4.99

$

In Stock, Qty 20+

0

140

Cub Cadet 951-11528

Carburetor Insulator Gasket

Note: Furnish 951-11709, Gasket Kit, Complete

$4.99

$

In Stock, Qty 20+

0

140

Cub Cadet 951-11528

Carburetor Insulator Gasket

Note: Furnish 951-11746, Cylinder Head

$4.99

$

In Stock, Qty 20+

0

140

Cub Cadet 951-11528

Carburetor Insulator Gasket

Note: Furnish 951-11747, Shortblock Assembly

$4.99

$

In Stock, Qty 20+

0

141

Cub Cadet 710-05093

Carb Stud M6x92

$4.49

$

In Stock, only 3 left!

0

142

Cylinder Head

Note: Furnish 951-11746, Cylinder Head

$

$

Not available

143

Cub Cadet 710-04982

Head Bolt M8×54

$4.49

$

Usually ships in 3-6 days

0

143

Cub Cadet 710-04982

Head Bolt M8×54

Note: Furnish 951-10846, Cylinder Head Service Kit

$4.49

$

Usually ships in 3-6 days

0

144

Cub Cadet 951-11687

Push Rod Guide
(Superseded to 951-11687A)

$7.49

$

In Stock, only 1 left!

0

144

Cub Cadet 951-11687

Push Rod Guide
(Superseded to 951-11687A)

Note: Furnish 951-11746, Cylinder Head

$7.49

$

In Stock, only 1 left!

0

145

Intake Valve

Note: Furnish 951-11746, Cylinder Head

$

$

Not available

145

Intake Valve

Note: Furnish 951-10313, Valve Kit

$

$

Not available

146

Intake Valve Seal

Note: Furnish 951-10846, Cylinder Head Service Kit

$

$

Not available

146

Intake Valve Seal

Note: Furnish 951-11746, Cylinder Head

$

$

Not available

147

Exhaust Valve

Note: Furnish 951-11746, Cylinder Head

$

$

Not available

147

Exhaust Valve

Note: Furnish 951-10313, Valve Kit

$

$

Not available

148

Valve Spring

Note: Furnish 951-11746, Cylinder Head

$

$

Not available

149

Valve Spring Retainer

Note: Furnish 951-11746, Cylinder Head

$

$

Not available

150

Cub Cadet 951-11606

Rocker Arm Assembly
(Superseded to 951-11606A)

$35.99

$

Usually ships in 3-6 days

0

151

Cub Cadet 710-04902

Rocker Arm Stud

$7.49

$

In Stock, Qty 10

0

151

Cub Cadet 710-04902

Rocker Arm Stud

Note: Furnish 951-11746, Cylinder Head

$7.49

$

In Stock, Qty 10

0

152

Rocker Arm

Note: Furnish 951-11746, Cylinder Head

$

$

Not available

153

Cub Cadet 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 2 left!

0

153

Cub Cadet 751-11123

Fulcrum Nut

Note: Furnish 951-11746, Cylinder Head

$10.99

$

In Stock, only 2 left!

0

154

Cub Cadet 751-11124

Jam Nut

$9.99

$

In Stock, only 2 left!

0

154

Cub Cadet 751-11124

Jam Nut

Note: Furnish 951-11746, Cylinder Head

$9.99

$

In Stock, only 2 left!

0

155

Cub Cadet 951-11551

Valve Cover Gasket

$11.99

$

In Stock, only 1 left!

0

155

Cub Cadet 951-11551

Valve Cover Gasket

Note: Furnish 951-11710, Gasket Kit External

$11.99

$

In Stock, only 1 left!

0

155

Cub Cadet 951-11551

Valve Cover Gasket

Note: Furnish 951-11709, Gasket Kit, Complete

$11.99

$

In Stock, only 1 left!

0

155

Cub Cadet 951-11551

Valve Cover Gasket

Note: Furnish 951-10846, Cylinder Head Service Kit

$11.99

$

In Stock, only 1 left!

0

155

Cub Cadet 951-11551

Valve Cover Gasket

Note: Furnish 951-11746, Cylinder Head

$11.99

$

In Stock, only 1 left!

0

155

Cub Cadet 951-11551

Valve Cover Gasket

Note: Furnish 951-11747, Shortblock Assembly

$11.99

$

In Stock, only 1 left!

0

156

Cub Cadet 951-11548

Valve Cover

$15.99

$

Usually ships in 3-6 days

0

157

Cub Cadet 951-10292

Spark Plug/F6rtc
(Superseded to 951-10292A)

$3.99

$

In Stock, Qty 20+

0

158

Cub Cadet 951-11740

Muffler Stud M6x95

$4.49

$

Usually ships in 3-6 days

0

158

Cub Cadet 951-11740

Muffler Stud

Note: Furnish 951-11745, Muffler Stud Assembly

$4.49

$

Usually ships in 3-6 days

0

159

Cub Cadet 951-11739

Muffler Gasket

$11.99

$

Usually ships in 3-6 days

0

159

Cub Cadet 951-11739

Muffler Gasket

Note: Furnish 951-11710, Gasket Kit External

$11.99

$

Usually ships in 3-6 days

0

159

Cub Cadet 951-11739

Muffler Gasket

Note: Furnish 951-11709, Gasket Kit, Complete

$11.99

$

Usually ships in 3-6 days

0

159

Cub Cadet 951-11739

Muffler Gasket

Note: Furnish 951-11746, Cylinder Head

$11.99

$

Usually ships in 3-6 days

0

159

Cub Cadet 951-11739

Muffler Gasket

Note: Furnish 951-11747, Shortblock Assembly

$11.99

$

Usually ships in 3-6 days

0

160

Cub Cadet 951-11742

Muffler Assembly

$81.99

$

Usually ships in 3-6 days

0

161

Cub Cadet 951-11743

Muffler Shield

$

$

Not available

162

Cub Cadet 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$59.99

$

Usually ships in 3-6 days

0

163

Cub Cadet 710-04983

Spark Arrestor Screw

$4.49

$

Usually ships in 3-6 days

0

164

Cub Cadet 951-11555

Cylinder Head Gasket

$12.99

$

Usually ships in 3-6 days

0

164

Cub Cadet 951-11555

Cylinder Head Gasket

Note: Furnish 951-11709, Gasket Kit, Complete

$12.99

$

Usually ships in 3-6 days

0

164

Cub Cadet 951-11555

Cylinder Head Gasket

Note: Furnish 951-10846, Cylinder Head Service Kit

$12.99

$

Usually ships in 3-6 days

0

164

Cub Cadet 951-11555

Cylinder Head Gasket

Note: Furnish 951-11746, Cylinder Head

$12.99

$

Usually ships in 3-6 days

0

164

Cub Cadet 951-11555

Cylinder Head Gasket

Note: Furnish 951-11747, Shortblock Assembly

$12.99

$

Usually ships in 3-6 days

0

165

Cub Cadet 715-04108

Cylinder Head Dowel 10x16

$4.49

$

In Stock, only 2 left!

0

165

Cub Cadet 715-04108

Cylinder Head Dowel 10x16

Note: Furnish 951-11747, Shortblock Assembly

$4.49

$

In Stock, only 2 left!

0

166

Cub Cadet 951-10314

Push Rod (2 per order)

$18.99

$

Usually ships in 3-6 days

0

167

Cub Cadet 951-11607

Tappet

$8.99

$

Usually ships in 3-6 days

0

167

Cub Cadet 951-11607

Tappet

Note: Furnish 951-11747, Shortblock Assembly

$8.99

$

Usually ships in 3-6 days

0

168

Cub Cadet 951-11741

Camshaft Assembly

$69.99

$

Usually ships in 3-6 days

0

168

Cub Cadet 951-11741

Camshaft Assembly

Note: Furnish 951-11747, Shortblock Assembly

$69.99

$

Usually ships in 3-6 days

0

169

Cub Cadet 951-11688

Piston Ring Set

$20.99

$

In Stock, only 3 left!

0

169

Cub Cadet 951-11688

Piston Ring Set

Note: Furnish 951-11747, Shortblock Assembly

$20.99

$

In Stock, only 3 left!

0

174

Cub Cadet 951-11603

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

174

Cub Cadet 951-11603

Piston Pin Snap Ring

Note: Furnish 951-11747, Shortblock Assembly

$4.49

$

Usually ships in 3-6 days

0

175

Cub Cadet 951-11605

Piston

$29.99

$

In Stock, only 1 left!

0

175

Cub Cadet 951-11605

Piston

Note: Furnish 951-11747, Shortblock Assembly

$29.99

$

In Stock, only 1 left!

0

176

Cub Cadet 951-11604

Piston Pin

$8.49

$

Usually ships in 3-6 days

0

176

Cub Cadet 951-11604

Piston Pin

Note: Furnish 951-11747, Shortblock Assembly

$8.49

$

Usually ships in 3-6 days

0

177

Cub Cadet 951-11744

Connecting Rod Assembly

$64.99

$

Usually ships in 3-6 days

0

177

Cub Cadet 951-11744

Connecting Rod Assembly

Note: Furnish 951-11747, Shortblock Assembly

$64.99

$

Usually ships in 3-6 days

0

180

Cub Cadet 710-05162

Connecting Rod Bolt

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 951-11708

Carburetor Repair Kit - Major

Note: Not Shown (Incl. Ref No. 116,118,123,124,128-134,137)

$60.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11710

Gasket Kit, External

Note: Not Shown (Incl. Ref No. 43,97,99,138-140,155,159)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11709

Gasket Kit, Complete

Note: Not Shown (Incl. Ref No. 40,43,72,77,97,99,103,138-140,155,159,164)

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10846

Cylinder Head Service Kit
(Superseded to 951-10846A)

Note: Not Shown (Incl. Ref No. 143,146,155,164)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11746

Cylinder Head

Note: Not Shown (Incl. Ref No. 139,140,142,144-149,151-155,159,164)

$157.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10363

Fuel Line Kit

Note: Not Shown (Incl. Ref No. 58-60)

$30.99

$

In Stock, only 2 left!

0

Cub Cadet 951-11747

Short Block Assembly

Note: Not Shown (Incl. Ref No. 37,40-46,71-73,77-79,80,81,83,84,85,98-103,109,139,140,155,159,164,165,167-169,174-177)

$

$

Not available

Cub Cadet 951-10370

Oil Drain Plug & Washer Ass'y

Note: Not Shown (Incl. Ref No. 98,99)

$9.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10739

Air Cleaner Housing Ass'y

Note: Not Shown (Incl. Ref No. 105,108)

$41.99

$

In Stock, only 2 left!

0

Cub Cadet 951-10313

Valve Kit

Note: Not Shown (Incl. Ref No. 145,147)

$68.99

$

In Stock, only 1 left!

0

Cub Cadet 951-11721

Recoil Pulley & Spring Ass'y

Note: Not Shown (Incl. Ref No. 5,6)

$49.99

$

In Stock, only 2 left!

0

Cub Cadet 951-11745

Muffler Stud Ass'y

Note: Not Shown (Incl. Ref No. 158)

$

$

Not available

Cub Cadet 952Z1P65B0B

Engine Complete
(Superseded to 952Z1P65BU)

Note: Not Shown

$632.99

$

Usually ships in 3-6 days

0
