1P65B0B - Cub Cadet Engine (2011) 1P65B0B-1 Crankcase Parts Diagram

Engine

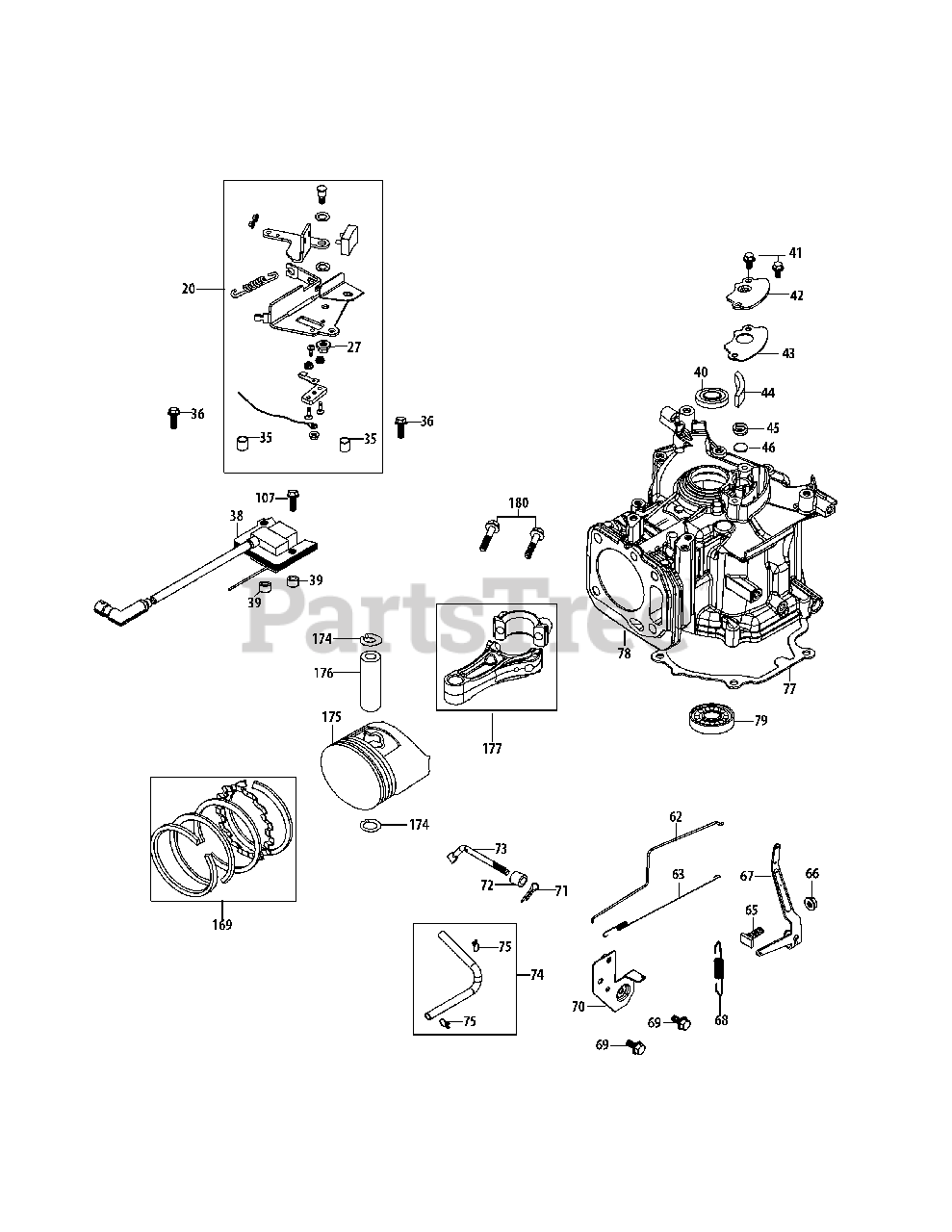

1P65B0B-1 Crankcase Parts Diagram

  • Title

20

Cub Cadet 951-10320

Brake Assembly
(Superseded to 951-10320A)

$37.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-04219

Brake Arm Nut

$5.99

$

In Stock, only 2 left!

0

35

Cub Cadet 750-05384

Brake Spacer

$3.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-04980

Brake Assy Bolt M6×35

$3.99

$

In Stock, only 1 left!

0

38

Cub Cadet 951-10367

Ignition Coil Assembly

$95.99

$

In Stock, only 2 left!

0

39

Cub Cadet 951-11675

Ignition Coil Spacer

$3.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 951-11596

Upper Crankshaft Seal

$5.99

$

In Stock, only 1 left!

0

41

Cub Cadet 710-04916

Bolt M6×14

$4.49

$

In Stock, only 2 left!

0

42

Cub Cadet 951-11612

Breather Cover Plate
(Superseded to 951-11728)

$6.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-11613

Breather Gasket
(Superseded to 951-11729)

$4.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-11730

Breather Screen

$5.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 732-04718

Breather Spring

$4.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 951-11614

Breather Valve

$3.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 951-11677

Throttle Linkage

$7.49

$

In Stock, only 1 left!

0

63

Cub Cadet 951-11522

Throttle Linkage Spring

$5.49

$

In Stock, Qty 5

0

65

Cub Cadet 710-04908

Governor Arm Bolt

$5.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 712-04212

Governor Arm Nut M6
(Superseded to 712-05015)

$6.49

$

In Stock, only 4 left!

0

67

Cub Cadet 951-11523

Governor Arm

$8.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 951-11273

Governor Spring

$6.49

$

In Stock, only 1 left!

0

69

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 8

0

70

Cub Cadet 951-11544

Component Bracket

$6.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 714-04074

Governor Cotter Pin
(Superseded to 714-04078)

$3.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902)

$4.49

$

In Stock, only 1 left!

0

73

Cub Cadet 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$9.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-11725

Breather Hose Assembly

$5.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 726-04101

Breather Hose Clamp

$4.49

$

In Stock, only 1 left!

0

77

Cub Cadet 951-11732

Crankcase Cover Gasket

$12.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 951-11747

Short Block Assembly

Note: (Incl. 37,40-46,71-73,77-81,83-85,98-103,109,139,140,155,159,164,165,167-169,174-177)

$

$

Not available

79

Cub Cadet 951-11369

Main Bearing

$32.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 710-04969

Bolt M6×30

$3.99

$

In Stock, only 4 left!

0

169

Cub Cadet 951-11688

Piston Ring Set

$18.99

$

In Stock, only 4 left!

0

174

Cub Cadet 951-11603

Piston Pin Snap Ring

$3.99

$

Usually ships in 3-6 days

0

175

Cub Cadet 951-11605

Piston

$29.99

$

In Stock, only 1 left!

0

176

Cub Cadet 951-11604

Piston Pin

$7.49

$

Usually ships in 3-6 days

0

177

Cub Cadet 951-11744

Connecting Rod Assembly

$64.99

$

Usually ships in 3-6 days

0

180

Cub Cadet 710-05162

Connecting Rod Bolt

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 951-11710

Gasket - External

Note: Not shown(Incl. 43,97,99,138-140,155,159)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11709

Gasket Kit - Complete

Note: Not shown (Incl. 40,43,72,77,97,99,103,139-140,155,159,164)

$62.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z1P65B0B-1

Complete Engine

Note: Not shown

$

$

Not available
