1P65TG - Cub Cadet Engine 1P65TG Carburetor Assembly Parts Diagram

Engine

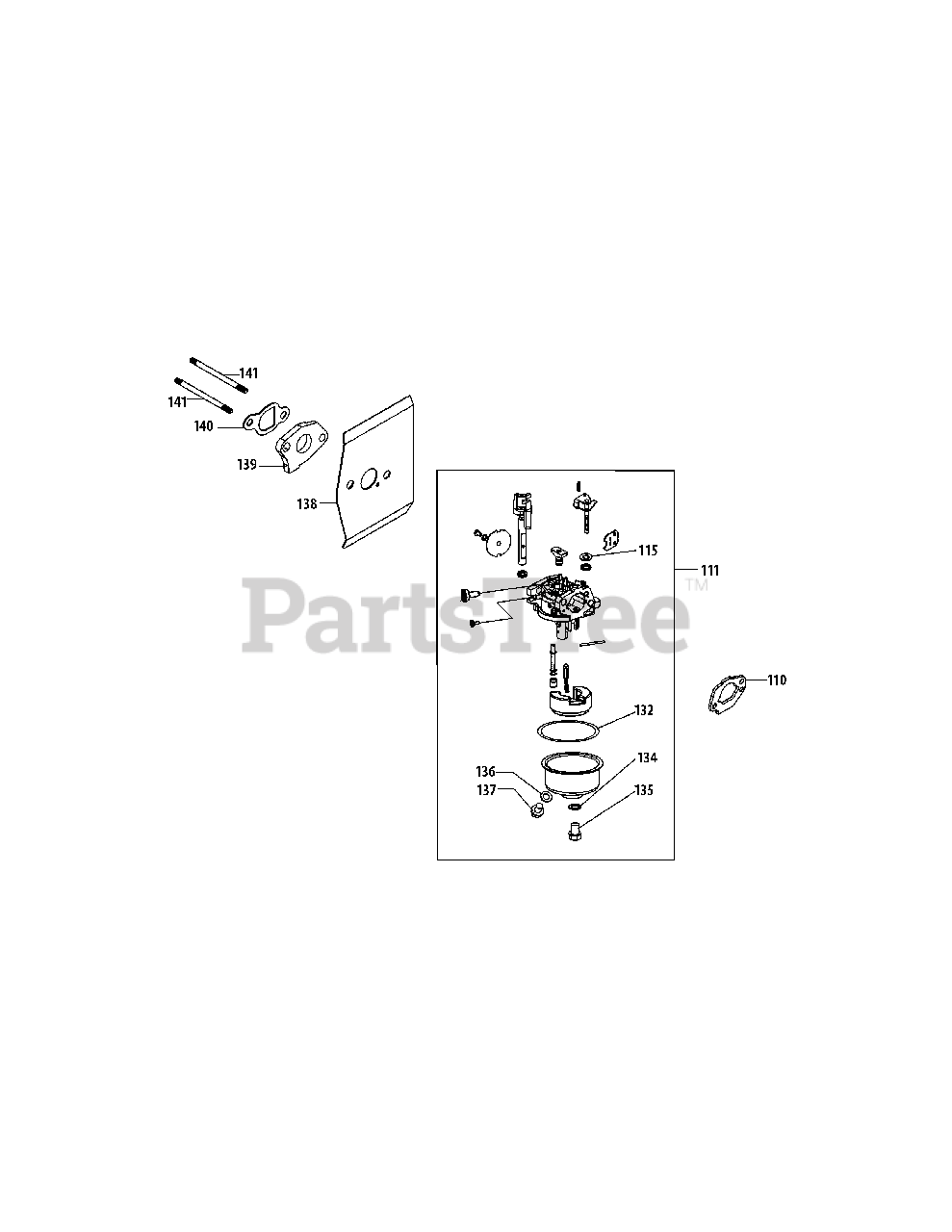

1P65TG Carburetor Assembly Parts Diagram

  • Title

110

Cub Cadet 951-11525

Carburetor Gasket Plate

$4.99

$

In Stock, Qty 12

0

111

Cub Cadet 951-12446

Carburetor Assembly

$92.99

$

In Stock, only 1 left!

0

115

Cub Cadet 736-04556

Choke Shaft Washer

$3.99

$

Usually ships in 3-6 days

0

132

Cub Cadet 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.49

$

In Stock, Qty 20+

0

134

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.49

$

Usually ships in 3-6 days

0

135

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$3.99

$

In Stock, Qty 8

0

136

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 17

0

137

Cub Cadet 710-04938

Fuel Drain Plug

$3.99

$

In Stock, only 4 left!

0

138

Cub Cadet 951-12451

Carburetor Gasket

$5.49

$

Usually ships in 3-6 days

0

139

Cub Cadet 951-11738

Carburetor Insulator

$5.49

$

Usually ships in 3-6 days

0

140

Cub Cadet 951-11528

Carburetor Insulator Gasket

$4.49

$

Usually ships in 3-6 days

0

141

Cub Cadet 710-05093

Carb Stud M6X92

$3.99

$

In Stock, only 2 left!

0

Cub Cadet 951-12178A

Carburetor Repair Kit - Major

Note: Not shown (Incl.116,117,122,123,126-132,134,136)

$52.99

$

Usually ships in 3-6 days

0
