1P65TU - Cub Cadet Engine 1P65TU Fuel Tank Parts Diagram

Engine

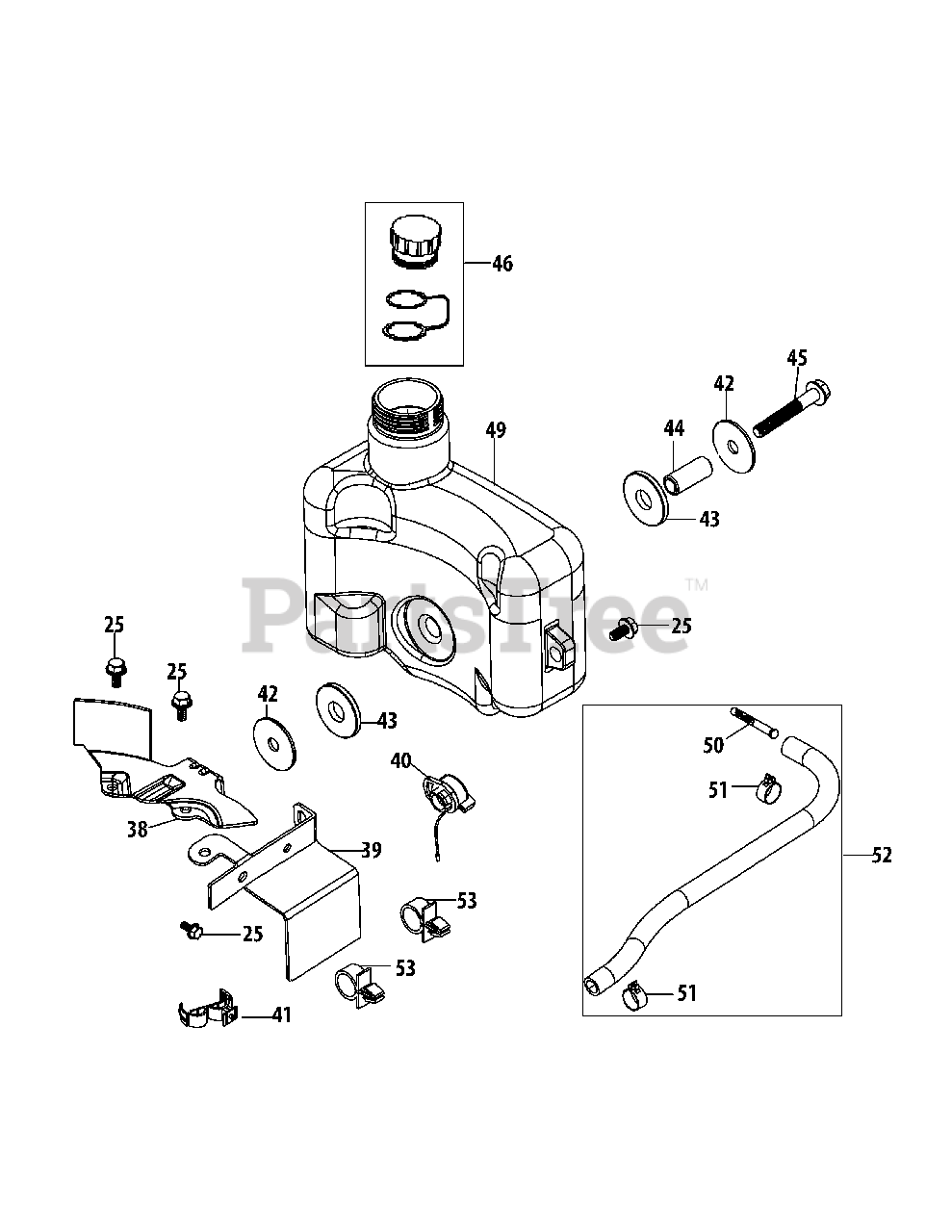

1P65TU Fuel Tank Parts Diagram

  • Title

25

Cub Cadet 710-04916

Bolt M6X14

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet 951-11542

Fuel Tank Bottom Bracket

$9.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 951-12450

Fuel Tank / Console Bracket

$

$

Not available

40

Cub Cadet 951-10622

Ignition Switch

$

$

Not available

41

Cub Cadet 951-11676

Wire Clamp

$3.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 736-04456

Fuel Tank Washer

$3.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-10335

Rubber Bushing

$5.49

$

In Stock, only 1 left!

0

44

Cub Cadet 750-05322

Fuel Tank Bushing

$3.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-04922

Bolt M8X50

$3.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 951-12738

Fuel Cap Assembly

$16.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 951-12864

Fuel Tank Assembly

$70.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 951-10358A

Fuel Filter
(Superseded to 951-12296A)

$9.49

$

In Stock, Qty 20+

0

51

Cub Cadet 951-11731

Fuel Hose Clamp
(Superseded to 951-11700A)

$3.99

$

In Stock, only 3 left!

0

52

Cub Cadet 951-10363

Fuel Line Kit

$26.99

$

In Stock, only 2 left!

0

53

Cub Cadet 723-04071

Plastic Support Clamp
(Superseded to 723-04071A)

$2.99

$

Usually ships in 3-6 days

0
