140cc Engine

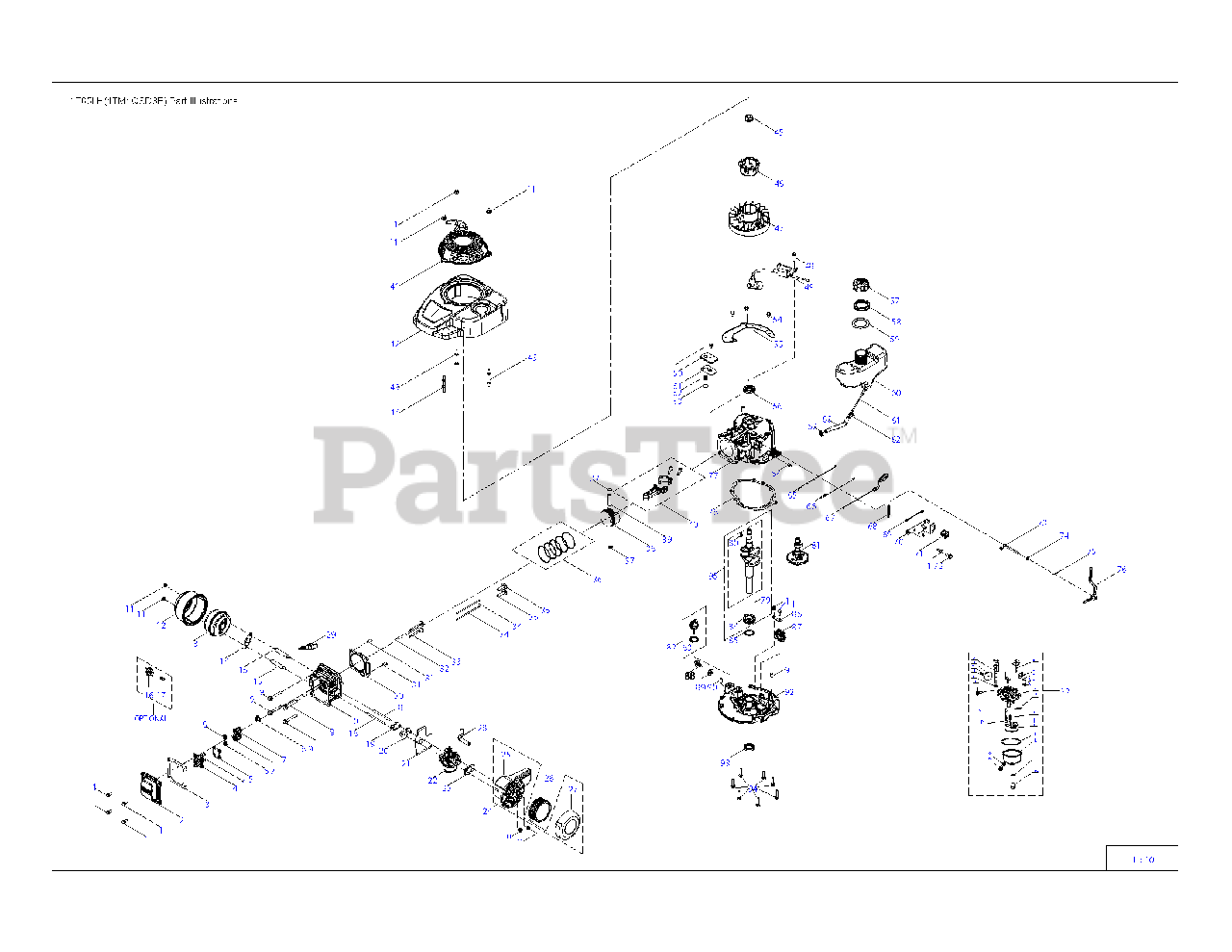

1T65LH General Assembly Parts Diagram

  • Title

1

MTD 710-04916

BOLT M6-1 x 14 GR8.8

$4.99

$

In Stock, Qty 5

0

2

MTD 908-05094

VALVE COVER

$10.99

$

Usually ships in 3-6 days

0

3

MTD 951-11551

VALVE COVER GASKET

$11.99

$

In Stock, only 1 left!

0

4

MTD 951-11606

ROCKER ARM ASSEMBLY
(Superseded to 951-11606A)

$35.99

$

Usually ships in 3-6 days

0

5

MTD 951-11687

PUSH ROD GUIDE
(Superseded to 951-11687A)

$7.49

$

In Stock, only 1 left!

0

6

MTD 951-11977

VALVE SPRING RETAINER

$4.49

$

In Stock, only 1 left!

0

7

MTD 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$2.49

$

In Stock, only 2 left!

0

8

MTD 921-04705

INTAKE VALVE SEAL

$6.99

$

Usually ships in 3-6 days

0

9

MTD 710-06200

SCREW M8 x 54 GR10

$6.49

$

Usually ships in 3-6 days

0

10

MTD 951-14689

CYLINDER HEAD

$129.99

$

Usually ships in 3-6 days

0

11

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 17

0

12

MTD 951-14693

MUFFLER SHIELD
(Superseded to 951-14693A)

$29.99

$

Usually ships in 3-6 days

0

13

MTD 951-14692

MUFFLER ASSEMBLY
(Superseded to 951-14692A)

$17.99

$

In Stock, only 3 left!

0

14

MTD 951-14427

MUFFLER GASKET
(Superseded to 951-14427A)

$7.99

$

In Stock, Qty 11

0

15

MTD 710-06204

STUD M6-1 x 76

$6.49

$

In Stock, Qty 12

0

16

MTD 951-10351

SPARK ARRESTOR
(Superseded to 951-10351A)

$59.99

$

Usually ships in 3-6 days

0

17

MTD 710-04983

SCREW M3.5 x 9.5

$4.49

$

Usually ships in 3-6 days

0

18

MTD 951-14425

CARBURETOR STUD-M6 x 87

$7.49

$

Usually ships in 3-6 days

0

19

MTD 951-11528

CARBURETOR INSULATOR GASKET

$4.99

$

In Stock, Qty 20+

0

20

MTD 951-11738

CARBURETOR INSULATOR
(Superseded to 951-11738A)

$5.99

$

In Stock, Qty 5

0

21

MTD 921-04706

CARBURETOR GASKET

$6.99

$

In Stock, Qty 5

0

22

MTD 651-05795

CARBURETOR ASSEMBLY
(Superseded to 651P05795)

$74.99

$

Usually ships in 3-6 days

0

23

MTD 951-14419

AIR FILTER BASE GASKET
(Superseded to 951-14419A)

$8.99

$

In Stock, Qty 13

0

24

MTD 951-05165

AIR FILTER ASSEMBLY

$15.99

$

In Stock, Qty 6

0

25

MTD 731-10372

AIR FILTER BASE
(Superseded to 731P10372)

$5.99

$

Usually ships in 3-6 days

0

26

MTD 951-14628

PAPER AIR FILTER

$

$

Not available

27

MTD 731-10360

AIR FILTER COVER
(Superseded to 731P10360)

$2.49

$

In Stock, only 3 left!

0

28

MTD 735-05054

BREATHER HOSE

$6.99

$

Usually ships in 3-6 days

0

29

MTD 951-14437

SPARK PLUG

$8.99

$

In Stock, Qty 20+

0

30

MTD 951-14431

CYLINDER HEAD GASKET

$17.99

$

In Stock, only 3 left!

0

31

MTD 715-04108

DOWEL PIN

$4.49

$

In Stock, only 2 left!

0

32

MTD 951-14640

INTAKE VALVE
(Superseded to 951-14640A)

$10.99

$

Usually ships in 3-6 days

0

33

MTD 951-14641

EXHAUST VALVE
(Superseded to 951-14641A)

$10.99

$

Usually ships in 3-6 days

0

34

MTD 747-04862

PUSH ROD
(Superseded to 747P04862A)

$6.49

$

Usually ships in 3-6 days

0

35

MTD 951-11607

TAPPET (LIFTER)

$8.99

$

Usually ships in 3-6 days

0

36

MTD 951-14433

PISTON RING SET
(Superseded to 951-14433A)

$41.99

$

In Stock, only 2 left!

0

37

MTD 951-11603

SNAP RING-PISTON PIN

$4.49

$

Usually ships in 3-6 days

0

38

MTD 951-14434

PISTON
(Superseded to 951-14434A)

$68.99

$

In Stock, only 2 left!

0

39

MTD 951-14435

PISTON PIN

$13.99

$

Usually ships in 3-6 days

0

40

MTD 951-05163

CONNECTING ROD ASSEMBLY
(Superseded to 951-05163A)

$17.99

$

Usually ships in 3-6 days

0

41

MTD 951-05320

STARTER RECOIL ASSEMBLY
(Superseded to 951-05320A)

$69.99

$

In Stock, only 2 left!

0

42

MTD 631-05196P

ENGINE SHROUD ASSEMBLY
(Superseded to 631P05196A)

$14.99

$

Usually ships in 3-6 days

0

43

MTD 710-06208

STUD M6 x 75

$6.49

$

Usually ships in 3-6 days

0

44

MTD 710-06209

STUD M6 x 73

$6.49

$

Usually ships in 3-6 days

0

45

MTD 712-04287

FLYWHEEL NUT

$7.49

$

In Stock, Qty 9

0

46

MTD 908-04144

START CUP

$11.99

$

Usually ships in 3-6 days

0

47

MTD 751-15755

FLYWHEEL

$40.99

$

Usually ships in 3-6 days

0

48

MTD 710-04919

BOLT M6-1 x 25 GR8.8

$4.99

$

Usually ships in 3-6 days

0

49

MTD 725-08185

IGNITION COIL
(Superseded to 725P08185)

$34.99

$

Usually ships in 3-6 days

0

50

MTD 908-05092

BREATHER COVER PLATE

$6.99

$

Usually ships in 3-6 days

0

51

MTD 921-04703

BREATHER COVER GASKET

$7.99

$

Usually ships in 3-6 days

0

52

MTD 732-04718

BREATHER VALVE SPRING

$4.99

$

In Stock, only 1 left!

0

53

MTD 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

54

MTD 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

55

MTD 908-05091

COVER SHIELD PLATE

$8.99

$

Usually ships in 3-6 days

0

56

MTD 921-04700

UPPER CRANKSHAFT SEAL

$10.99

$

In Stock, only 2 left!

0

57

MTD 651-05182

FUEL CAP ASSEMBLY
(Superseded to 651P05182)

$3.49

$

In Stock, only 2 left!

0

58

MTD 931-10290

FUEL TANK NUT
(Superseded to 931-10290A)

$5.99

$

Usually ships in 3-6 days

0

59

MTD 951-14406

FUEL TANK UPPER GROMMET
(Superseded to 951-14406A)

$11.99

$

Usually ships in 3-6 days

0

60

MTD 731-10383

FUEL TANK
(Superseded to 731P10383)

$22.99

$

Usually ships in 3-6 days

0

61

MTD 951-12296

FUEL FILTER
(Superseded to 951-12296A)

$10.99

$

In Stock, Qty 20+

0

62

MTD 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

In Stock, Qty 7

0

63

MTD 735-05053

FUEL HOSE
(Superseded to 735-05053A)

$10.99

$

In Stock, Qty 5

0

64

MTD 750-06824

Control Bracket Spacer
(Superseded to 750P06824)

$6.99

$

Usually ships in 3-6 days

0

65

MTD 951-14696

THROTTLE LINKAGE

$7.99

$

Usually ships in 3-6 days

0

66

MTD 732-05188

THROTTLE LINKAGE SPRING
(Superseded to 732P05188A)

$7.49

$

In Stock, only 2 left!

0

67

MTD 751-16309

CHOKE CONTROL
(Superseded to 751P16309)

$2.49

$

Usually ships in 3-6 days

0

68

MTD 951-15570

GOVERNOR SPRING

$6.49

$

Usually ships in 3-6 days

0

69

MTD 925-06175

IGNITION SWITCH

$6.49

$

Usually ships in 3-6 days

0

70

MTD 751-16310

COMPONENT BRACKET
(Superseded to 751P16310)

$2.99

$

Usually ships in 3-6 days

0

71

MTD 925-06174

IGNITION SWITCH

$12.99

$

Usually ships in 3-6 days

0

72

MTD 710-04980

BOLT M6-1 x 35 GR8.8

$4.49

$

Usually ships in 3-6 days

0

73

MTD 951-11608

GOVERNOR ARM SHAFT
(Superseded to 951-11621)

$10.99

$

Usually ships in 3-6 days

0

74

MTD 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$4.49

$

In Stock, only 1 left!

0

75

MTD 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

76

MTD 951-05160A

GOVERNOR ARM ASSEMBLY

$6.49

$

In Stock, only 2 left!

0

77

MTD 951-14686

CRANKCASE

$96.99

$

Usually ships in 3-6 days

0

78

MTD 951-14415

CRANKCASE COVER GASKET

$15.99

$

In Stock, Qty 7

0

79

MTD 951-14754

CRANKSHAFT ASSEMBLY

$107.99

$

Usually ships in 3-6 days

0

80

MTD 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, only 1 left!

0

81

MTD 951-11741

CAMSHAFT ASSEMBLY

$69.99

$

Usually ships in 3-6 days

0

82

MTD 951-05161

DIPSTICK ASSEMBLY

$10.99

$

Usually ships in 3-6 days

0

83

MTD 721-04704

DIPSTICK O-RING
(Superseded to 721P04704)

$2.49

$

Usually ships in 3-6 days

0

84

MTD 931-10288

CRANKSHAFT TIMING GEAR
(Superseded to 931-10288A)

$9.99

$

Usually ships in 3-6 days

0

85

MTD 736-04491

THRUST WASHER

$4.99

$

Usually ships in 3-6 days

0

86

MTD 951-11609

GOVERNOR GEAR MOUNTING PLATE

$5.49

$

Usually ships in 3-6 days

0

87

MTD 951-11549

GOVERNOR GEAR/SHAFT ASSEMBLY

$12.99

$

Usually ships in 3-6 days

0

88

MTD 710-04906

OIL DRAIN PLUG

$7.49

$

In Stock, Qty 11

0

89

MTD 736-04440

WASHER
(Superseded to 736-04440A)

$7.49

$

In Stock, Qty 12

0

90

MTD 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

In Stock, only 2 left!

0

91

MTD 715-04092

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

In Stock, only 2 left!

0

92

MTD 951-14688

CRANKCASE COVER

$

$

Not available

93

MTD 951-11545

LOWER CRANKSHAFT SEAL
(Superseded to 951-11545A)

$10.99

$

In Stock, only 1 left!

0

94

MTD 710-04943

BOLT-M6-1 x 28 GR8.8

$4.99

$

In Stock, only 2 left!

0

a

Choke Shaft

Note: Not Serviceable Alone

$

$

Not available

b

Choke Plate

Note: Not Serviceable Alone

$

$

Not available

c

Idle Jet Assembly

Note: Not Serviceable Alone

$

$

Not available

d

MTD 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

Usually ships in 3-6 days

0

e

Carburetor Body

Note: Not Serviceable Alone

$

$

Not available

f

Float Pin

Note: Not Serviceable Alone

$

$

Not available

g

Needle Valve

Note: Not Serviceable Alone

$

$

Not available

h

Needle Valve Spring

Note: Not Serviceable Alone

$

$

Not available

i

Float

Note: Not Serviceable Alone

$

$

Not available

j

MTD 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$6.49

$

In Stock, Qty 20+

0

k

MTD 908-05001

FLOAT BOWL

$8.99

$

In Stock, only 1 left!

0

l

MTD 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

m

MTD 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 5

0

n

MTD 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, only 4 left!

0

o

MTD 951-11589

FUEL BOWL O-RING
(Superseded to 951-11589A)

$7.49

$

In Stock, Qty 18

0

p

Main Jet

Note: Not Serviceable Alone

$

$

Not available

q

Emulsion Tube

Note: Not Serviceable Alone

$

$

Not available

r

Idle Speed Adjusting Screw

Note: Not Serviceable Alone

$

$

Not available

s

Throttle/Choke Shaft Fiber O-Ring

Note: Not Serviceable Alone

$

$

Not available

t

MTD 710-06230

Screw, M3×6

Note: Not Serviceable Alone

$3.99

$

Usually ships in 3-6 days

0

u

Throttle Plate

Note: Not Serviceable Alone

$

$

Not available

v

Throttle Shaft

Note: Not Serviceable Alone

$

$

Not available

MTD 752Z1T65LH

COMPLETE ENGINE 140cc (1T65LH)
(Superseded to 952Z1T65LH)

$675.99

$

Usually ships in 3-6 days

0
