1X 21 HP (31AS2S5C710) - Cub Cadet 1X 21" Snow Thrower (2017) Frame Parts Diagram

1X 21" Snow Thrower

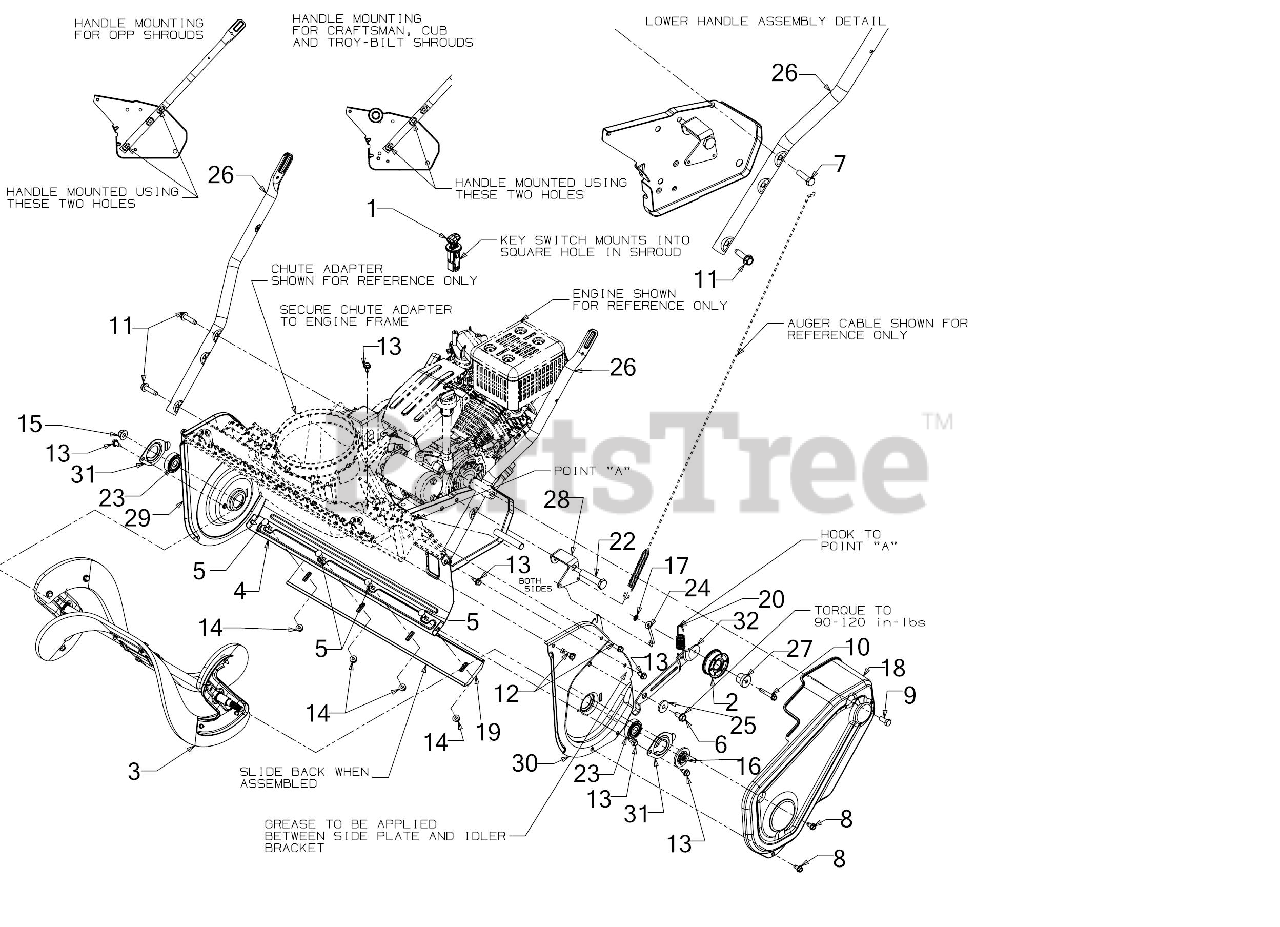

Frame Parts Diagram

  • Title

1

Cub Cadet 925-04031B

IGNITION SWITCH

$38.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-04168

IDLER PULLEY ASSEMBLY

$36.99

$

In Stock, Qty 5

0

2

Cub Cadet 941-0919B

BALL BEARING

Note: (Not Shown)

$20.99

$

In Stock, Qty 20+

0

3

Cub Cadet 984-04393

21" AUGER ASSEMBLY

$219.99

$

In Stock, only 1 left!

0

3

Cub Cadet 684-04394-0637

AUGER AXLE ASSEMBLY

Note: (Not Shown)

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 790-00427-0637

AUGER CENTER BRACKET

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 735-04237

AUGER RUBBER PADDLE

Note: (Not Shown)

$22.99

$

In Stock, only 2 left!

0

3

Cub Cadet 790-00427-0637

AUGER CENTER BRACKET

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-05058

SCREW 1/4-14 x .75

Note: (Not Shown)

$3.99

$

In Stock, Qty 8

0

3

Cub Cadet 710-0642

SCREW 1/4-20 x .750

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 684-04398-0691

FRAME ASSEMBLY
(Superseded to 753-11131A)

$129.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-05183

SCREW 5/16-24 x 1.25 GR5

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0627

SCREW 5/16-24 x .750 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0778

SCREW 1/4-20 x 1.50"

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0817

SCREW 5/16-18 x 1.25

$6.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0895

SCREW 1/4-15 x .750

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1652

SCREW 1/4-20X.625

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 718-04836

PULLEY HUB 1/2"

$4.49

$

In Stock, Qty 6

0

17

Cub Cadet 726-0233

RETAINER-BOLT .25ID x .50OD

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet 731-07737A

BELT COVER

$26.99

$

In Stock, only 3 left!

0

19

Cub Cadet 731-08171

SHAVE PLATE

$17.99

$

In Stock, Qty 20+

0

20

Cub Cadet 732-04748

EXTENSION SPRING

$3.99

$

In Stock, only 1 left!

0

22

Cub Cadet 738-04456

SHOULDER BOLT

$5.49

$

In Stock, Qty 6

0

23

Cub Cadet 741-04517

BALL BEARING

$8.49

$

In Stock, only 2 left!

0

24

Cub Cadet 747-05360A

WIRE DRIVE CABLE SUPPORT

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 748-0234

SHOULDER SPACER

$4.49

$

In Stock, Qty 10

0

26

Cub Cadet 749-04810-0637

LOWER HANDLE

$11.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 750-04571

SHOULDER SPACER

$6.49

$

In Stock, Qty 7

0

28

Cub Cadet 790-00426-0637

CLUTCH CABLE BRACKET

$8.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 790-00444-0691

AUGER HOUSING PLATE (RH)

$43.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 790-00445-0691

AUGER HOUSING PLATE (LH)

$43.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 790-00457-0691

AUGER HOUSING BEARING CUP

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 790-00461-0637

IDLER BRACKET

$3.99

$

Usually ships in 3-6 days

0
