1X 21 LHP (31AM2T6C710) - Cub Cadet 1X 21" Snow Thrower (2017) Chute Control Assembly Parts Diagram

1X 21" Snow Thrower

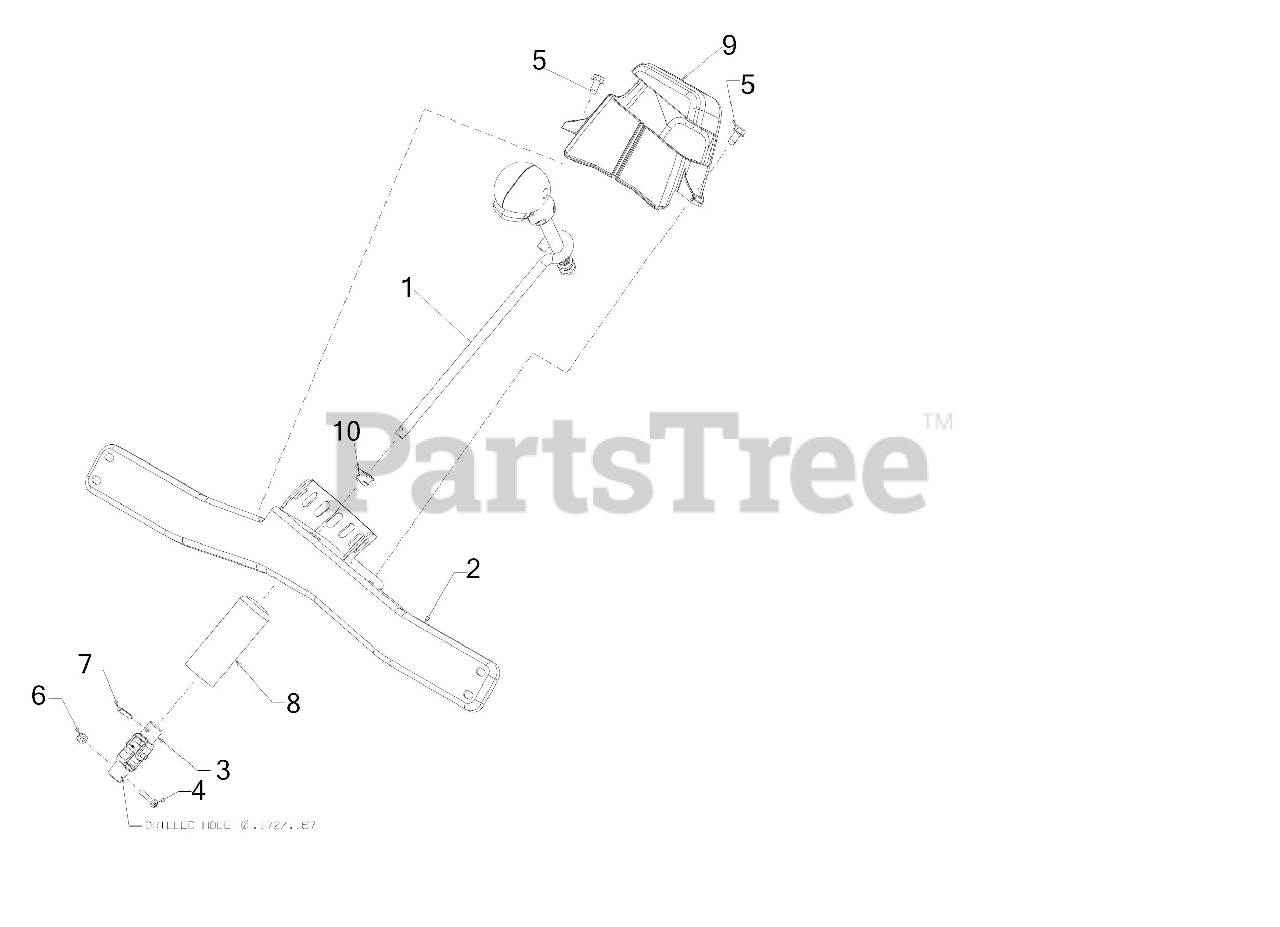

Chute Control Assembly Parts Diagram

  • Title

1

Cub Cadet 631-04526P

CHUTE CONTROL ASSEMBLY

$86.99

$

In Stock, only 1 left!

0

1

Cub Cadet 731-04904

CONTROL KNOB (RH)

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 731-04905

CONTROL KNOB (LH)

Note: (Not Shown)

$9.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 731-06525

JOYSTICK TRIGGER LEVER

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 731-08018

ROTATION PLUNGER ROD

Note: (Not Shown)

$8.49

$

In Stock, only 1 left!

0

1

Cub Cadet 732-04789

COMPRESSION SPRING

Note: (Not Shown)

$2.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-04352

SCREW #6 x .375

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-04353

SCREW #8 x 1.0

Note: (Not Shown)

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-04383-0637

INDICATOR BRACKET

$96.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 984-04400

JOINT BLOCK ASSEMBLY
(Superseded to 684-04400)

$

$

Not available

3

Cub Cadet 684-04350

JOINT BLOCK ASSEMBLY

Note: (Not Shown)

$26.99

$

In Stock, only 4 left!

0

3

Cub Cadet 715-0150

ROLL PIN

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-05179A

SCREW #8-32 x .875

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04035

NUT

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 715-04095

ROLL PIN

$4.99

$

In Stock, only 4 left!

0

8

Cub Cadet 720-04174

GRIP: 1.18 x 3.33

$8.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-07957

CHUTE ROTATE CONTROL COVER

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 941-0475

BUSHING .380 ID

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 684-04401

CHUTE ROTATION HANDLE ASSEMBLY
(Superseded to 984-04401)

$147.99

$

Usually ships in 3-6 days

0
