1X65CUA - Cub Cadet 159cc Engine 1X65CUA General Assembly Parts Diagram

159cc Engine

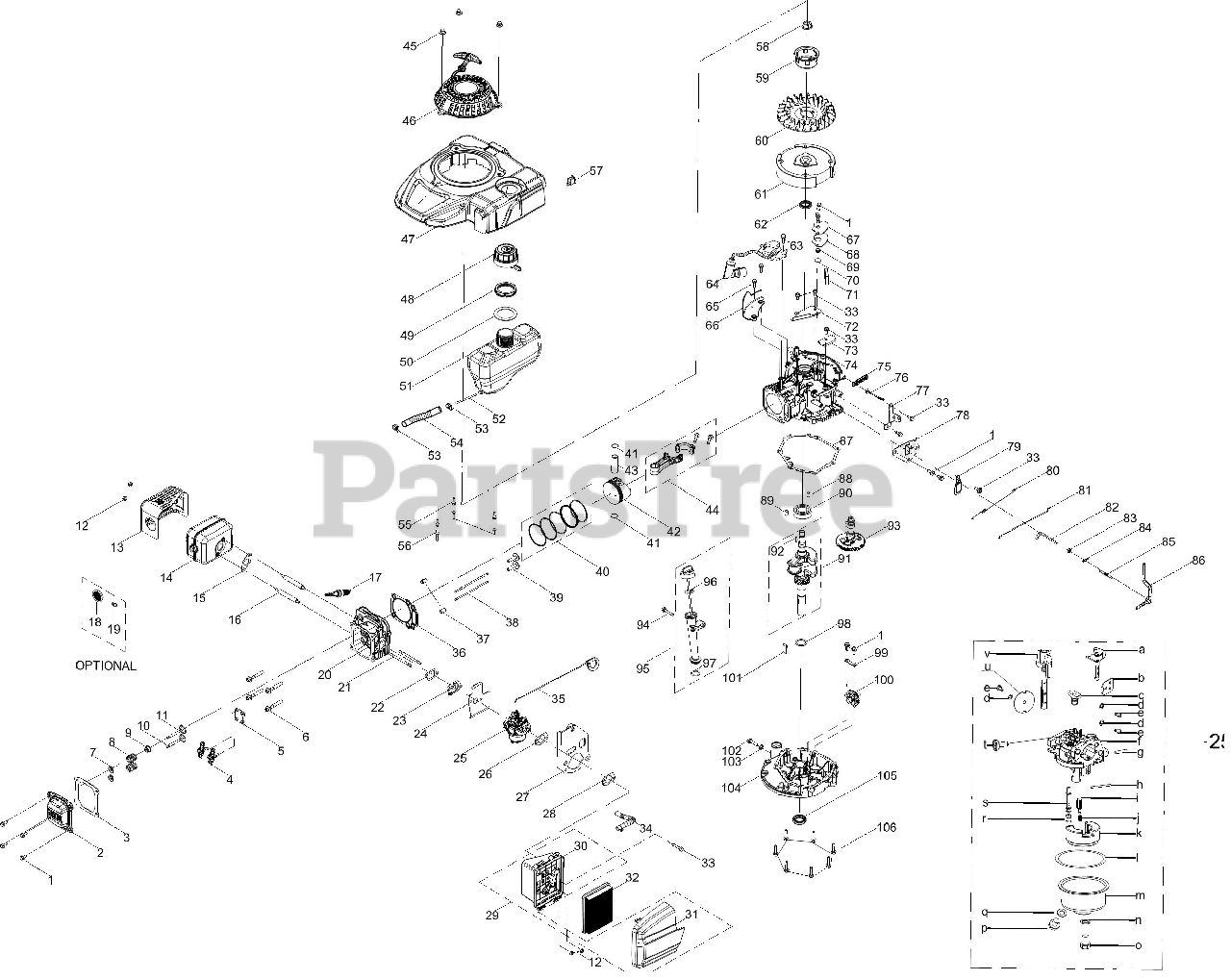

1X65CUA General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04916

Bolt M6x14

$4.99

$

In Stock, Qty 5

0

2

Cub Cadet 951-14609

Valve Cover
(Superseded to 951-14609A)

$17.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-11551

Valve Cover Gasket

$11.99

$

In Stock, only 1 left!

0

4

Cub Cadet 951-11606

Rocker Arm Assembly
(Superseded to 951-11606A)

$35.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-11687

Push Rod Guide
(Superseded to 951-11687A)

$7.49

$

In Stock, only 1 left!

0

6

Cub Cadet 910-06185

Bolt M8x54 Cylinder Head

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 951-11977

Valve Spring Retainer

$4.49

$

In Stock, only 1 left!

0

8

Cub Cadet 951-12004

Valve Spring
(Superseded to 751P12004A)

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet 921-04237

Intake Valve Seal
(Superseded to 921-04237A)

$8.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-14641

Exhaust Valve
(Superseded to 951-14641A)

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 951-14640

Intake Valve
(Superseded to 951-14640A)

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-05015

Nut M6X10

$6.99

$

In Stock, Qty 17

0

13

Cub Cadet 951-15566

Muffler Shield

$29.99

$

In Stock, only 2 left!

0

14

Cub Cadet 951-10403

Muffler Assembly

$87.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-14427

Muffler Gasket
(Superseded to 951-14427A)

$7.99

$

In Stock, Qty 11

0

16

Cub Cadet 710-05094

Muffler Stud M6x95

$4.99

$

In Stock, Qty 18

0

17

Cub Cadet 951-14437

Spark Plug/F5RTC

$8.99

$

In Stock, Qty 20+

0

18

Cub Cadet 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$59.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-04983

Spark Arrestor Screw

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 951-14639

Cylinder Head

$131.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 951-14425

Carb Stud M6x87

$7.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 951-11528

Carburetor Insulator Gasket

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 951-11738

Carburetor Insulator
(Superseded to 951-11738A)

$5.99

$

In Stock, Qty 6

0

24

Cub Cadet 951-14424

Carburetor Gasket

$11.99

$

In Stock, only 3 left!

0

25

Cub Cadet 951-05544

Carburetor Assembly

$103.99

$

In Stock, only 1 left!

0

26

Cub Cadet 951-14419

Air Filter Base Gasket
(Superseded to 951-14419A)

$8.99

$

In Stock, Qty 14

0

27

Cub Cadet 908-05251

Air Filter Bracket

$7.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 951-14422

Air Filter Bracket Gasket

$8.49

$

In Stock, Qty 8

0

29

Air Filter Assembly

$

$

Not available

30

Cub Cadet 931-12769

Air Filter Base

$14.99

$

In Stock, only 1 left!

0

31

Cub Cadet 931-12768

Air Filter Cover
(Superseded to 931-12768A)

$11.99

$

In Stock, only 3 left!

0

32

Cub Cadet 951-15245

Air Filter Element, Paper

$15.99

$

In Stock, Qty 20+

0

33

Cub Cadet 710-04915

Bolt M6x12

$4.99

$

In Stock, only 3 left!

0

34

Cub Cadet 951-15567

Breather Hose Assembly

$6.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 951-15569

Choke Control

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 951-14431

Cylinder Head Gasket

$17.99

$

In Stock, only 3 left!

0

37

Cub Cadet 715-04108

Cylinder Head Dowel Pin 10x16

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet 747-04862

Push Rod
(Superseded to 747P04862A)

$6.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 951-14432

Tappet
(Superseded to 951-14432A)

$9.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 951-14433

Piston Ring Set
(Superseded to 951-14433A)

$41.99

$

In Stock, only 2 left!

0

41

Cub Cadet 951-11603

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-14434

Piston
(Superseded to 951-14434A)

$68.99

$

In Stock, only 2 left!

0

43

Cub Cadet 951-14435

Piston Pin

$13.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-14436

Connecting Rod Assembly

$

$

Not available

45

Cub Cadet 712-04276

Starter Acorn Nut
(Superseded to 712-04276A)

$6.99

$

In Stock, Qty 14

0

46

Cub Cadet 951-05360

Starter Recoil Assembly
(Superseded to 951-05360A)

$60.99

$

In Stock, Qty 20+

0

47

Cub Cadet 931-05437

Engine Shroud Assembly

$35.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-15255

Fuel Cap Assembly
(Superseded to 951-15255A)

$28.99

$

In Stock, only 4 left!

0

49

Cub Cadet 951-14406

Fuel Tank Upper Grommet
(Superseded to 951-14406A)

$11.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 931-10290

Fuel Tank Nut
(Superseded to 931-10290A)

$5.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 931-12771

Fuel Tank
(Superseded to 931-12771A)

$52.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 951-12296

Fuel Filter
(Superseded to 951-12296A)

$10.99

$

In Stock, Qty 20+

0

53

Cub Cadet 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

In Stock, Qty 7

0

54

Cub Cadet 935-05215

Fuel Hose
(Superseded to 935-05215A)

$13.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 951-14397

Shroud Stud M6x78.5

$10.99

$

In Stock, only 2 left!

0

56

Cub Cadet 951-14398

Shroud Stud M6x74

$10.99

$

In Stock, only 1 left!

0

57

Cub Cadet 925-06174

Ignition Switch

$12.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 712-04287

Flywheel Nut M14

$7.49

$

In Stock, Qty 9

0

59

Cub Cadet 951-12161

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-10934

Cooling Fan
(Superseded to 951-10909A)

$

$

Not available

61

Cub Cadet 951-14596

Flywheel

$109.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 951-11596

Upper Crankshaft Seal

$6.99

$

In Stock, only 1 left!

0

63

Cub Cadet 710-04918

Bolt M6x20

$4.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 925-07206

Ignition Coil Assembly

$51.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 710-04919

Bolt M6x25

$4.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 951-14597

Engine Brake Cover Plate

$8.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-14404

Breather Cover Plate

$15.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 951-14405

Breather Gasket

$10.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 732-04718

Breather Valve Spring

$4.99

$

In Stock, only 1 left!

0

70

Cub Cadet 951-11614

Breather Valve

$4.49

$

In Stock, only 1 left!

0

71

Cub Cadet 951-11730

Breather Screen

$5.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-14605

Air Vane Cover Plate

$6.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 908-05252

Ground Wire Cover Plate

$4.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-14635

Crankcase

$203.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 951-11622

Flexible Clamp
(Superseded to 951-11622A)

$4.49

$

Usually ships in 3-6 days

0

76

Cub Cadet 925-07036

Grounding Wire

$3.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 908-05253

Choke Control Bracket

$5.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 908-05254

Component Bracket

$6.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 908-05255

Governor Shield

$4.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-14409

Throttle Linkage Spring

$9.49

$

In Stock, only 2 left!

0

81

Cub Cadet 951-14721

Throttle Linkage

$7.49

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$10.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902A)

$4.49

$

In Stock, only 1 left!

0

84

Cub Cadet 714-04078

Governor Arm Shaft Cotter Pin

$4.49

$

In Stock, only 1 left!

0

85

Cub Cadet 951-15570

Governor Spring

$6.49

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-05160A

Governor Arm Assembly

$6.49

$

In Stock, only 2 left!

0

87

Cub Cadet 951-14415

Crankcase Cover Gasket

$15.99

$

In Stock, Qty 7

0

88

Cub Cadet 715-04092

Crankcase Cover Dowel Pin 7x14
(Superseded to 715-04096A)

$4.49

$

In Stock, only 2 left!

0

89

Cub Cadet 715-04096

Crankcase Cover Dowel Pin 9x14
(Superseded to 715-04096A)

$4.49

$

In Stock, only 2 left!

0

90

Cub Cadet 951-11369

Main Bearing

$36.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 951-14712

Crankshaft Assembly

$120.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, only 1 left!

0

93

Cub Cadet 951-15571

Camshaft Assembly

$43.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 710-04980

Bolt M6x35

$4.49

$

Usually ships in 3-6 days

0

95

Cub Cadet 951-05438

Dipstick Assembly

$14.99

$

In Stock, only 2 left!

0

96

Cub Cadet 921-04795

Dipstick / Oil Fill Tube O-Ring
(Superseded to 921-04795A)

$4.49

$

Usually ships in 3-6 days

0

97

Cub Cadet 921-04697

Dipstick / Oil Fill Tube O-Ring

$3.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 736-04491

Crankshaft Thrust Washer

$4.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 951-11609

Governor Gear Mounting Plate

$5.49

$

Usually ships in 3-6 days

0

100

Cub Cadet 951-05336

Governor Gear/Shaft Assembly
(Superseded to 951-05336A)

$9.49

$

Usually ships in 3-6 days

0

101

Cub Cadet 951-11733

Oil Return Seal

$5.49

$

Usually ships in 3-6 days

0

102

Cub Cadet 710-04906

Oil Drain Plug

$7.49

$

In Stock, Qty 11

0

103

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$7.49

$

In Stock, Qty 12

0

104

Cub Cadet 951-14418

Crankcase Cover

$

$

Not available

105

Cub Cadet 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

$10.99

$

In Stock, only 1 left!

0

106

Cub Cadet 710-04943

Bolt M6x28

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet 951-05544

Carburetor Assembly

$103.99

$

In Stock, only 1 left!

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Idle Jet Assembly

$

$

Not available

d

Cub Cadet 736-04638

Throttle Plate Lock Washer
(Superseded to 736-04638A)

$3.49

$

Usually ships in 3-6 days

0

e

Screw M3x6 Throttle Plate

$

$

Not available

f

Carburetor Body

$

$

Not available

g

Fuel Inlet

$

$

Not available

h

Float Pin

$

$

Not available

i

Needle Valve

$

$

Not available

j

Needle Valve Spring

$

$

Not available

k

Float

$

$

Not available

l

Cub Cadet 951-11348

Fuel Bowl Mounting Bolt Gasket
(Superseded to 951-11348A)

$6.49

$

In Stock, Qty 20+

0

m

Cub Cadet 908-05001

Fuel Bowl

$8.99

$

In Stock, only 1 left!

0

n

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

o

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 5

0

p

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

q

Cub Cadet 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$7.49

$

In Stock, Qty 15

0

r

Main Jet

$

$

Not available

s

Emulsion Tube

$

$

Not available

t

Idle Speed Adjusting Screw

$

$

Not available

u

Throttle Plate

$

$

Not available

v

Throttle Shaft

$

$

Not available

Cub Cadet 952Z1X65CUA

Complete Engine

$684.99

$

Usually ships in 3-6 days

0
