1X65TU - Cub Cadet 159cc Engine 1X65TU Crankcase Parts Diagram

159cc Engine

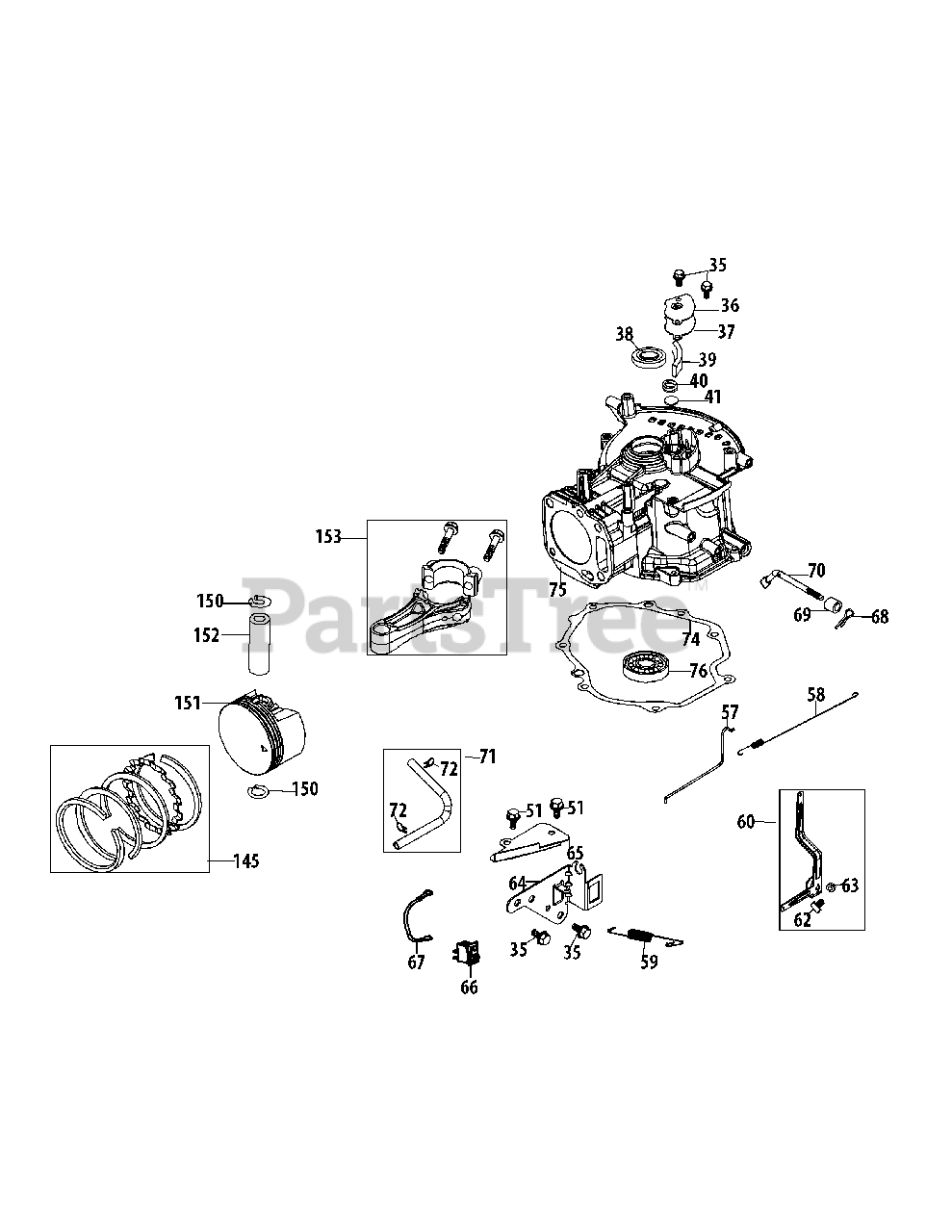

1X65TU Crankcase Parts Diagram

  • Title

35

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, only 2 left!

0

36

Cub Cadet 951-14404

BREATHER COVER PLATE

$13.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 951-14405

BREATHER GASKET

$9.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 951-11596

CRANKSHAFT SEAL

$5.99

$

In Stock, only 1 left!

0

39

Cub Cadet 951-11730

BREATHER SCREEN

$5.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 732-04718

BREATHER VALVE SPRING

$4.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-11614

BREATHER VALVE

$3.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 8

0

57

Cub Cadet 951-14410

THROTTLE LINKAGE

$7.99

$

In Stock, only 1 left!

0

58

Cub Cadet 951-14409

THROTTLE LINKAGE SPRING

$8.49

$

In Stock, Qty 11

0

59

Cub Cadet 951-14411

GOVERNOR SPRING

$8.99

$

In Stock, only 2 left!

0

60

Cub Cadet 951-14412

GOVERNOR ARM ASSEMBLY

$7.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 710-04908

BOLT M6-1 x 21

$5.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 712-05015

HEX NUT

$6.49

$

In Stock, only 4 left!

0

64

Cub Cadet 951-14413

COMPONENT BRACKET

$13.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 951-14605

AIR VANE COVER PLATE

$5.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 725-06174

IGNITION SWITCH
(Superseded to 925-06174)

$11.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 725-06175

IGNITION SWITCH
(Superseded to 925-06175)

$5.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 714-04078

COTTER PIN

$3.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 951-11574

GOVERNOR SEAL
(Superseded to 951-11902)

$4.49

$

In Stock, only 1 left!

0

70

Cub Cadet 951-14416

GOVERNOR ARM SHAFT

$11.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-11520

BREATHER HOSE

$5.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 726-04101

BREATHER HOSE CLAMP

$4.49

$

In Stock, only 1 left!

0

74

Cub Cadet 951-14415

CRANKCASE COVER GASKET

$13.99

$

In Stock, only 2 left!

0

75

Cub Cadet 751-14635

CRANKCASE
(Superseded to 951-14635)

$178.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-11369

BEARING

$32.99

$

Usually ships in 3-6 days

0

145

Cub Cadet 951-14433

PISTON RING SET
(Superseded to 951-14433A)

$36.99

$

In Stock, only 2 left!

0

150

Cub Cadet 951-11603

SNAP RING-PISTON PIN

$3.99

$

Usually ships in 3-6 days

0

151

Cub Cadet 951-14434

PISTON
(Superseded to 951-14434A)

$60.99

$

Usually ships in 3-6 days

0

152

Cub Cadet 951-14435

PISTON PIN

$11.99

$

Usually ships in 3-6 days

0

153

Cub Cadet 951-14436

CONNECTING ROD ASSEMBLY

$

$

Not available
