1X65TU - Cub Cadet 159cc Engine 1X65TU Cylinder Head Parts Diagram

159cc Engine

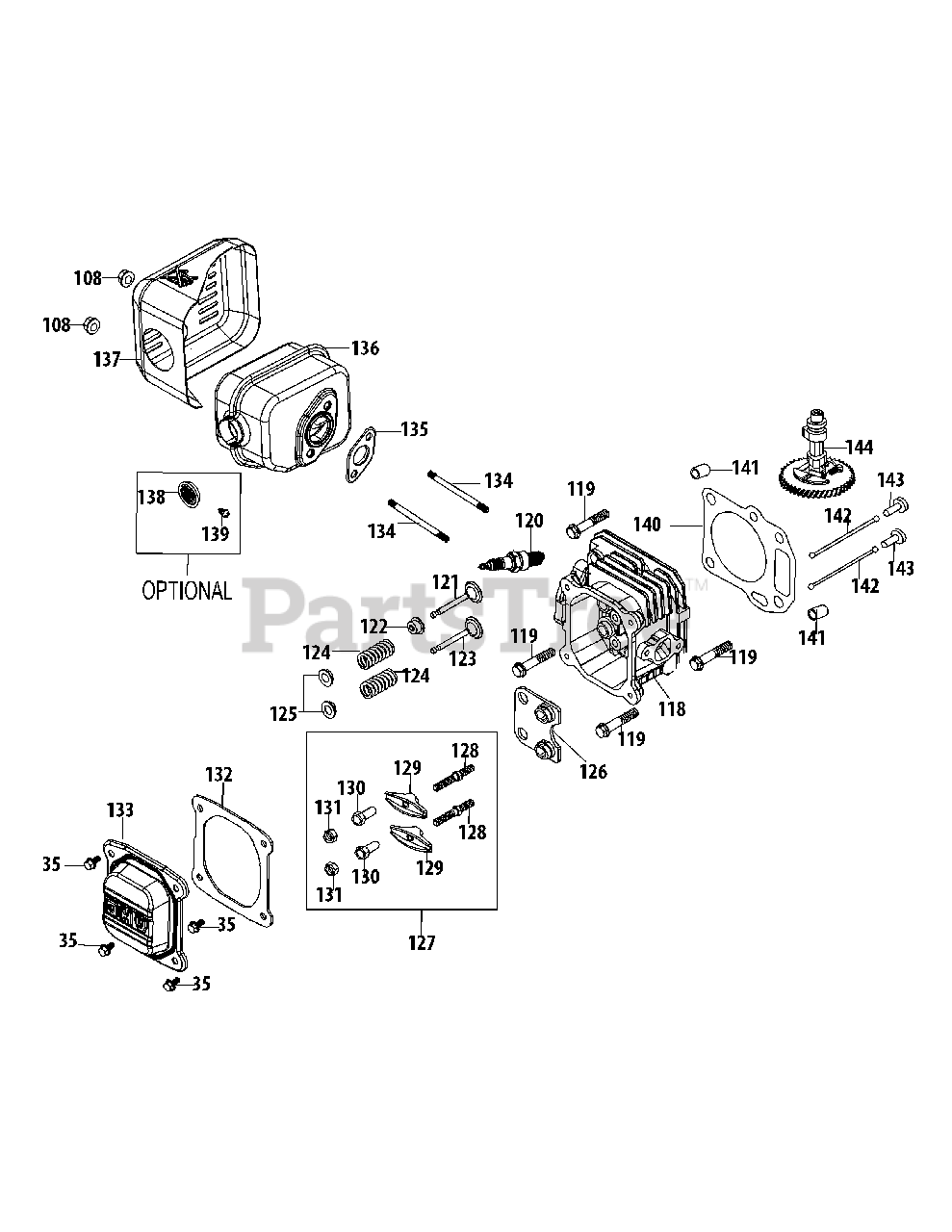

1X65TU Cylinder Head Parts Diagram

  • Title

35

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, only 2 left!

0

108

Cub Cadet 712-05015

HEX NUT

$6.49

$

In Stock, only 4 left!

0

118

Cub Cadet 951-05151

CYLINDER HEAD ASSEMBLY

$159.99

$

Usually ships in 3-6 days

0

118

Cub Cadet 751-14639

CYLINDER HEAD
(Superseded to 951-14639)

$114.99

$

Usually ships in 3-6 days

0

119

Cub Cadet 710-06185

BOLT M8-1.25 x 54 GR9.8
(Superseded to 910-06185)

$6.49

$

Usually ships in 3-6 days

0

120

Cub Cadet 951-14437

SPARK PLUG

$7.99

$

In Stock, Qty 20+

0

121

Cub Cadet 951-14640

INTAKE VALVE
(Superseded to 951-14640A)

$9.49

$

In Stock, only 1 left!

0

122

Cub Cadet 721-04237

INTAKE VALVE SEAL
(Superseded to 921-04237A)

$7.99

$

Usually ships in 3-6 days

0

123

Cub Cadet 951-14641

EXHAUST VALVE
(Superseded to 951-14641A)

$9.49

$

Usually ships in 3-6 days

0

124

Cub Cadet 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 7

0

125

Cub Cadet 708-04094

VALVE RETURN SPRING
(Superseded to 951-11977)

$3.99

$

Usually ships in 3-6 days

0

126

Cub Cadet 951-11687

PUSH ROD GUIDE

$6.99

$

Usually ships in 3-6 days

0

127

Cub Cadet 951-11606

ROCKER ARM ASSEMBLY

$37.99

$

In Stock, only 1 left!

0

128

Cub Cadet 710-04902

PIVOT STUD

$6.49

$

In Stock, Qty 12

0

129

Cub Cadet 951-12001

ROCKER ARM

$7.49

$

In Stock, only 1 left!

0

130

Cub Cadet 751-11123

VALVE ADJUST NUT

$9.99

$

In Stock, Qty 10

0

131

Cub Cadet 751-11124

PIVOT LOCKING NUT

$8.99

$

In Stock, Qty 6

0

132

Cub Cadet 951-11551

VALVE COVER GASKET

$9.99

$

In Stock, Qty 11

0

133

Cub Cadet 951-14609

VALVE COVER

$15.99

$

Usually ships in 3-6 days

0

134

Cub Cadet 710-05094

STUD M6-1 x 95

$4.49

$

In Stock, Qty 10

0

135

Cub Cadet 951-14427

MUFFLER GASKET
(Superseded to 951-14427A)

$6.99

$

In Stock, Qty 5

0

136

Cub Cadet 951-10403

MUFFLER

$76.99

$

In Stock, only 1 left!

0

137

Cub Cadet 951-14430

MUFFLER SHIELD
(Superseded to 951-15072)

$23.99

$

Usually ships in 3-6 days

0

138

Cub Cadet 951-10351

SPARK ARRESTOR
(Superseded to 951-10351A)

$51.99

$

Usually ships in 3-6 days

0

139

Cub Cadet 710-04983

SCREW M3.5 x 9.5

$3.99

$

Usually ships in 3-6 days

0

140

Cub Cadet 951-14431

CYLINDER HEAD GASKET

$15.99

$

In Stock, only 4 left!

0

141

Cub Cadet 715-04108

DOWEL PIN

$3.99

$

In Stock, only 3 left!

0

142

Cub Cadet 747-04862

PUSH ROD

$5.99

$

In Stock, Qty 6

0

143

Cub Cadet 951-14432

TAPPET

$9.99

$

Usually ships in 3-6 days

0

144

Cub Cadet 951-11741

CAMSHAFT ASSEMBLY

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z1X65TU

COMPLETE ENGINE 159cc

$545.99

$

Usually ships in 3-6 days

0
