2-1231 - Toro Rear-Engine Riding Mower, 6hp (1968) Lawn Skiff Mower Parts List Parts Diagram

Rear-Engine Riding Mower, 6hp

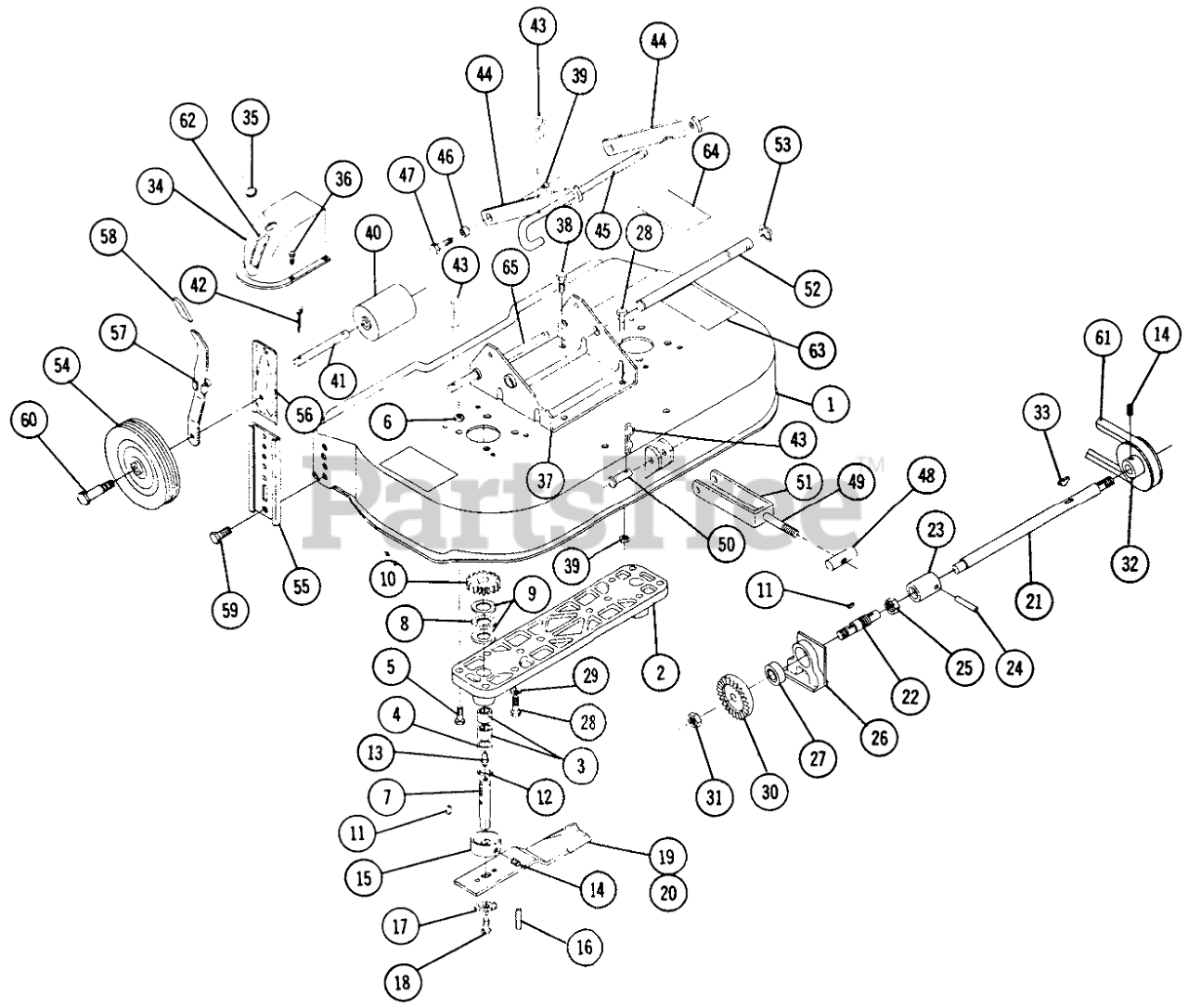

Lawn Skiff Mower Parts List Parts Diagram

  • Title

1

Toro 5726

Ass-y. Deck

$

$

Currently unavailable

2

Toro 7589

DISCONTINUED

$

$

Not available

3

Toro 1508

See Supercession: 252-6
(Superseded to 252-6)

$13.99

$

In Stock, Qty 7

0

4

Toro 1303

See Supercession: 100441
(Superseded to 100441)

$8.49

$

In Stock, only 3 left!

0

5

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

6

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

7

Toro 7895

SPINDLE SHAFT

$

$

Not available

8

Toro 1534

See Supercession: 99-3836
(Superseded to 99-3836)

$16.99

$

In Stock, only 2 left!

0

9

Toro 7894

See Supercession: 7993
(Superseded to 7993)

$

$

Not available

10

Toro 3131

DISCONTINUED

$

$

Not available

11

Toro 937084

DISCONTINUED

$

$

Not available

12

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 20+

0

13

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

14

Toro 909862-5

Set Screw

$

$

Currently unavailable

15

Toro 3716

DISCONTINUED

$

$

Not available

16

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

17

Toro 1336

DISCONTINUED

$

$

Not available

18

Toro 908033-5

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

19

Toro 3718

See Supercession: 704058
(Superseded to 704058)

$

$

Not available

20

Toro 3719

See Supercession: 704155
(Superseded to 704155)

$

$

Not available

21

Toro 7585

See Supercession: 3715
(Superseded to 3715)

$

$

Not available

22

Toro 7586

DISCONTINUED

$

$

Not available

23

Toro 7587

Coupling

$

$

Currently unavailable

24

Toro 7841

See Supercession: 933190
(Superseded to 93-3190)

$6.99

$

Usually ships in 3-6 days

0

25

Toro 7588

Nut Hex Jam 3/4-20

$

$

Currently unavailable

26

Toro 7590

DISCONTINUED
(Superseded to 7591)

$

$

Not available

27

Toro 1515

See Supercession: 101480
(Superseded to 101480)

$49.99

$

In Stock, only 3 left!

0

28

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

29

Toro 920083-4

Lockwasher

$

$

Currently unavailable

30

Toro 7898

DISCONTINUED

$

$

Not available

31

Toro 915639

See Supercession: 3296-33
(Superseded to 3296-33)

$2.99

$

Usually ships in 3-6 days

0

32

Toro 1613

DISCONTINUED

$

$

Not available

33

Toro 937159

See Supercession: 937225
(Superseded to 937225)

$4.99

$

In Stock, only 1 left!

0

34

Toro 3141

DISCONTINUED

$

$

Not available

35

Toro 3757

PLUG BUTTON

$

$

Not available

36

Toro 1304

SCREW

$0.99

$

Usually ships in 3-6 days

0

37

Toro 5736

Hanger

$

$

Currently unavailable

38

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

39

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

40

Toro 5240

See Supercession: 94-1599
(Superseded to 94-1599)

$12.99

$

In Stock, Qty 9

0

41

Toro 5241

See Supercession: 101881
(Superseded to 101881)

$14.99

$

Usually ships in 3-6 days

0

42

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

43

Toro 933505-4

Hairpin

$

$

Currently unavailable

44

Toro 7673

DISCONTINUED

$

$

Not available

45

Toro 6677

DISCONTINUED

$

$

Not available

46

Toro 4937

DISCONTINUED

$

$

Not available

47

Toro 908033-4

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

48

Toro 6830

DISCONTINUED

$

$

Not available

49

Toro 900885-4

Bolt Square Head 1/2-13 x 2 3/4

$

$

Currently unavailable

50

Toro 932965-4

Clevis Pin

$

$

Currently unavailable

51

Toro 6831

DISCONTINUED

$

$

Not available

52

Toro 5735

Shaft-Belt Tightener

$

$

Currently unavailable

53

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

54

Toro 2877

See Supercession: 110506
(Superseded to 110506)

$37.99

$

In Stock, Qty 15

0

55

Toro 7856

DISCONTINUED

$

$

Not available

56

Toro 7857

HT ADJ SLIDE

$

$

Not available

57

Toro 7858

HT ADJ SPRING LEVER

$

$

Not available

58

Toro 7859

DISCONTINUED

$

$

Not available

59

Toro 7860

See Supercession: 703325
(Superseded to 703325)

$

$

Not available

60

Toro 7853

BOLT SHOULDER

$97.99

$

Usually ships in 3-6 days

0

61

Toro 1596

V BELT

$

$

Not available

62

Toro 3710

Decal

$

$

Currently unavailable

63

Toro 4570

See Supercession: 93-1122
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

64

Toro 6163

Decal-Belt Diagram
(Superseded to 703298)

$34.99

$

Usually ships in 3-6 days

0

65

Toro 6675

Pin

$

$

Currently unavailable
