20 D - Poulan Chainsaw CHAIN SAW ASSEMBLY Parts Diagram

Chainsaw

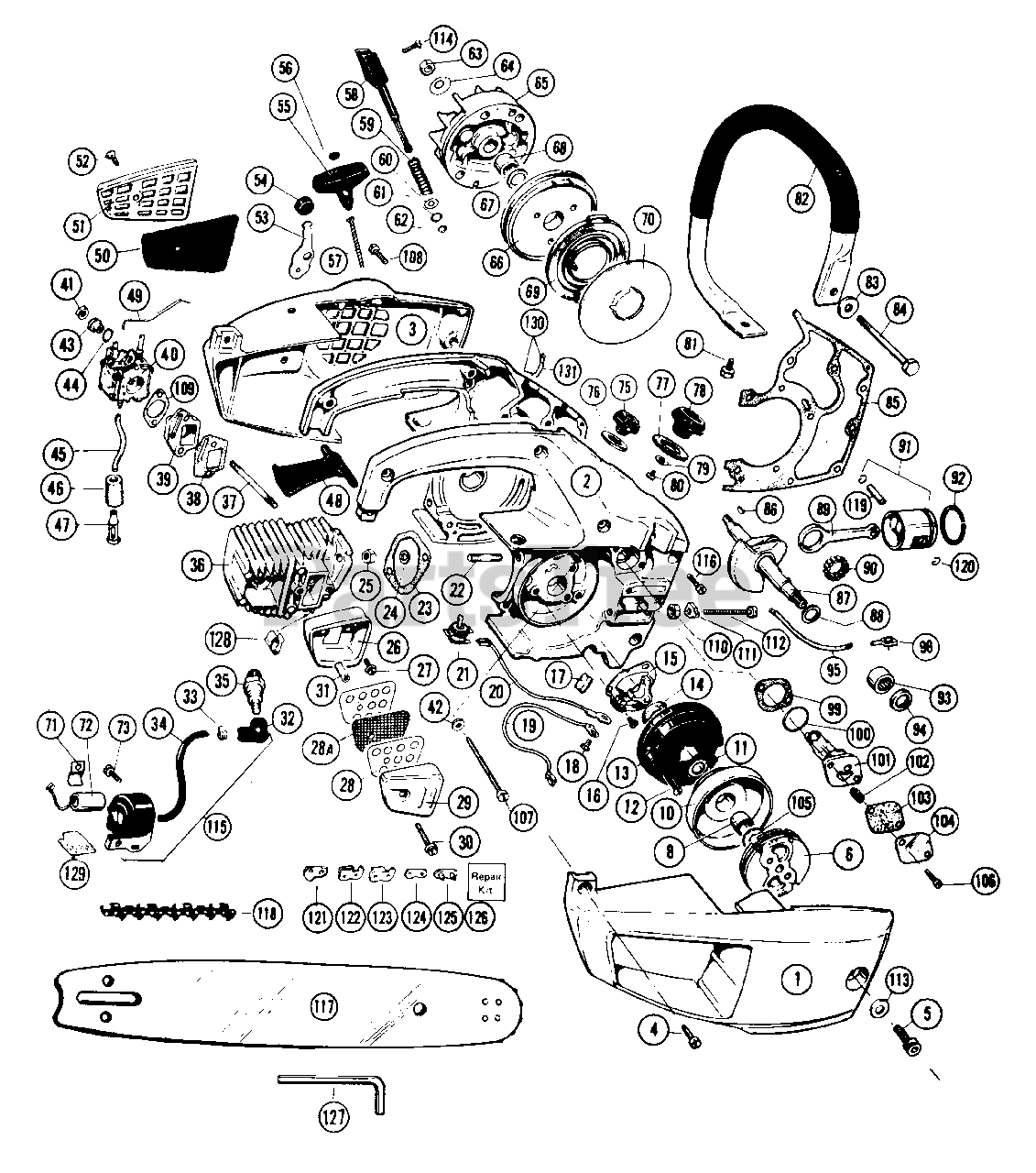

CHAIN SAW ASSEMBLY Parts Diagram

  • Title

1

Poulan 530011219

Barclamp

$

$

Not available

2

Poulan 530010209

Crankcase Ass'y. Inc.22,75-76,85,93-94, 110-112,130-131

$

$

Not available

3

Poulan 530011216

Fan Housing

$

$

Not available

4

Poulan 530015174

Screw-Bar Clamp-rear

$

$

Not available

5

Poulan 530015183

Barclamp Screw

$

$

Not available

6

Poulan 530010158

Clutch Ass'y.

$

$

Not available

8

Poulan 530032028

Bushing-Clutch Drum

$

$

Not available

10

Poulan 530048017

Drum & Sprocket Ass'y. Inc. Ref. 8

$

$

Not available

11

Poulan 530023519

Spacer-Clutch (inside)

$3.99

$

In Stock, only 1 left!

0

12

Poulan 530015166

Screw-Point Cover

$1.49

$

Usually ships in 3-10 days

0

13

Poulan 530023503

Cover-Breaker Points

$

$

Not available

14

Poulan 530019061

Seal-Breaker Points Cover

$

$

Not available

15

Poulan 530039054

Breaker Points Ass'y.

$

$

Not available

16

Poulan 530015004

Screws-Breaker Points Base

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530633560

Felt-Cam Wiper

$

$

Not available

18

Poulan 530625712

Screw-Terminal

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 530039055

Lead Wire-Points To Coil

$

$

Not available

20

Poulan 530039056

Lead Wire-Points To Switch

$

$

Not available

21

Poulan 530023504

Stop Switch Ass'y.

$

$

Not available

22

Poulan 530001674

Stud-Cylinder Mounting

$

$

Not available

23

Poulan 530019068

Gasket-Cylinder

$

$

Not available

24

Poulan 530001677

Lockwasher-Cylinder

$

$

Not available

25

Poulan 530001660

Nut-Cylinder

$2.49

$

Usually ships in 3-10 days

0

26

Poulan 530023521

Body-Muffler

$

$

Not available

27

Poulan 530015178

Screw-Muffler Body

$

$

Not available

28

Poulan 530023533

Baffle-Muffler

$

$

Not available

28A

Poulan 530023534

Screen-Spark Arresting

$

$

Not available

29

Poulan 530023523

Cover-Muffler

$

$

Not available

30

Poulan 530015169

Screw-Muffler Cover

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530023535

Spacer-Muffler

$4.99

$

In Stock, only 1 left!

0

32

Poulan 530003933

Boot-Spark Plug
(Superseded to 507475326)

$

$

Not available

33

Poulan 530003934

Connector-Spark Plug

$

$

Not available

34

Poulan 530039057

Lead-High Tension

$

$

Not available

35

Poulan 530030005

Spark Plug
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

36

Poulan 530011224

Cylinder Ass'y. Inc. Ref. 37

$

$

Not available

37

Poulan 530015172

Stud-Carburetor Mount

$

$

Not available

38

Poulan 530019069

Gasket-Carburetor Adapter

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 530023515

Adapter-Carburetor

$

$

Not available

40

Poulan 530035001

REPL BY 530 03 50-11
(Superseded to 530035011)

$

$

Not available

Poulan 535035001

SCREW, MOTOR

$

$

Not available

41

Poulan 530015064

Nut-10-24

$

$

Not available

42

Poulan 530019072

Washer-Fiber

$1.49

$

Usually ships in 3-10 days

0

43

Poulan 530023375

Spacer-Choke

$1.49

$

Usually ships in 3-10 days

0

44

Poulan 530015146

Wave Washer

$

$

Not available

45

Poulan 530021014

Line-Fuel (Bulk No. 8133)
(Superseded to 530069216)

$6.49

$

In Stock, Qty 20+

0

46

Poulan 530023364

Filter Felt-Fuel Pick-up

$

$

Not available

47

Poulan 530023363

Weight-Fuel Pick-up

$

$

Not available

48

Poulan 530023505

Trigger-Throttle

$

$

Not available

49

Poulan 530023506

Wire-Throttle

$

$

Not available

50

Poulan 530023502

Air Filter (Gray)

$

$

Not available

51

Poulan 530011217

Cover-Air Filter

$

$

Not available

52

Poulan 530015164

Screw-Cover Air Filter

$

$

Not available

53

Poulan 530023525

Shutter-Choke

$1.49

$

Usually ships in 3-10 days

0

54

Poulan 530023541

Bumper-Choke Lever

$

$

Not available

55

Poulan 530042025

Handle-Starter Rope

$

$

Not available

56

Poulan 530023496

Plug-Starter Handle

$

$

Not available

57

Poulan 530042035

Rope-Starter

$

$

Not available

58

Poulan 530023513

Plunger-Oil Pump

$2.49

$

Usually ships in 3-10 days

0

59

Poulan 530023514

Spring-Pump Plunger

$

$

Not available

60

Poulan 530015171

Washer-Pump Plunger

$

$

Not available

61

Poulan 530001952

O-Ring-Pump Plunger (Top)

$

$

Not available

62

Poulan 530019066

O-Ring-Pump Plunger (Bottom)

$2.49

$

In Stock, only 1 left!

0

63

Poulan 530626605

Nut-Flywheel

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530015127

Washer-Ramp Conical

$6.49

$

Usually ships in 3-10 days

0

65

Poulan 530039058

Flywheel Ass'y.

$

$

Not available

66

Poulan 530010163

Starter Pulley Ass'y. Inc. Ref. 68

$

$

Not available

67

Poulan 530015177

Thrust Washer

$

$

Not available

68

Poulan 530032029

Bearing-Starter Pulley

$10.99

$

In Stock, only 4 left!

0

69

Poulan 530042029

Spring-Starter Recoil
(Superseded to 545008007)

$

$

Not available

70

Poulan 530042031

Plate-Starter Pulley Back-up

$

$

Not available

71

Poulan 530039053

Clamp-Condenser

$3.99

$

Usually ships in 3-10 days

0

72

Poulan 530039052

Condenser

$

$

Not available

73

Poulan 530015128

Screw-Sems (Coil)
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

75

Poulan 530023741

Oil Cap Ass'y. Inc. Ref. 76

$

$

Not available

76

Poulan 530019071

Gasket-Oil Cap

$

$

Not available

77

Poulan 530019048

Gasket-Gas Cap

$

$

Not available

78

Poulan 530010154

Gas Cap Ass'y. Inc. Ref. 77-79-80

$

$

Not available

79

Poulan 530001520

Washer

$

$

Not available

80

Poulan 530001726

Screw

$

$

Not available

81

Poulan 530015176

Screw

$

$

Not available

82

Poulan 530022096

Handlebar

$

$

Not available

83

Poulan 530015151

Washer-1/4 (Handlebar, Top)

$

$

Not available

84

Poulan 530015175

Screw

$

$

Not available

85

Poulan 530019062

Gasket-Crankcase

$

$

Not available

86

Poulan 530015126

Woodruff Key

$3.99

$

Usually ships in 3-10 days

0

87

Poulan 530022099

Crank Shaft

$

$

Not available

88

Poulan 530032027

Washer-Crankshaft Thrust

$

$

Not available

89

Poulan 530022098

Connecting Rod

$

$

Not available

90

Poulan 530032025

Bearings-Crank Pin Roller

$

$

Not available

91

Poulan 530011226

Piston Ass'y. Inc. Ref. 119-120

$

$

Not available

92

Poulan 530023495

Piston Ring

$

$

Not available

93

Poulan 530032026

Bearing-Crankshaft

$

$

Not available

94

Poulan 530019059

Seal-Crankshaft

$

$

Not available

95

Poulan 530021017

Line-Impulse (Bulk No. 8133)

$

$

Not available

98

Poulan 530022102

Check Valve

$

$

Not available

99

Poulan 530019064

Gasket-Oil Pump Body

$

$

Not available

100

Poulan 530019063

O-Ring-Oil Pump Body

$

$

Not available

101

Poulan 530022097

Oil Pump Body Ass'y.

$

$

Not available

102

Poulan 530023511

Filter-Oil Pump

$

$

Not available

103

Poulan 530019065

Gasket-Oil Pump Cover

$

$

Not available

104

Poulan 530023512

Cover-Oil Pump

$

$

Not available

105

Poulan 530015173

Thrust Washer (Outside)

$

$

Not available

106

Poulan 530001643

Screws

$

$

Not available

107

Poulan 530015167

Screw

$

$

Not available

108

Poulan 530015163

Screw

$2.49

$

Usually ships in 3-10 days

0

109

Poulan 530019045

Gasket-Carburetor

$

$

Not available

110

Poulan 530015135

Nut-Adjusting Screw

$1.99

$

In Stock, Qty 7

0

111

Poulan 530023492

Pin-Bar Adjusting

$

$

Not available

112

Poulan 530015185

Screw-Bar Adjusting

$

$

Not available

113

Poulan 530015149

Washer-Barclamp Screw

$4.99

$

In Stock, only 3 left!

0

114

Poulan 530001714

Screw-Oil Plunger Lock

$

$

Not available

115

Poulan 530039051

Coil & Lamination Ass'y. Inc. 32 - 34

$

$

Not available

116

Poulan 530015168

Screws-Crankcase

$

$

Not available

117

Poulan 530044101

Bar-12"

$

$

Not available

117

Poulan 530044099

Bar-14"

$

$

Not available

118

Poulan 530051046

Chain-12" Bar

$

$

Not available

118

Poulan 530051041

Chain-14" Bar

$

$

Not available

119

Poulan 530032024

Wrist Pin
(Superseded to 530069274)

$

$

Not available

120

Poulan 530015162

Retaining Ring-Wrist Pin

$6.49

$

Usually ships in 3-10 days

0

121

Poulan 530052044

Drive Link-Chain

$

$

Not available

122

Poulan 530052046

Cutter LH-Chain

$

$

Not available

123

Poulan 530052045

Cutter RH-Chain

$

$

Not available

124

Poulan 530052038

Tie Strap-Chain

$1.49

$

Usually ships in 3-10 days

0

125

Poulan 530052039

Pre-set Tie Strap-Chain

$2.49

$

Usually ships in 3-10 days

0

126

Poulan 052043

Repair kit-Chain

$

$

Not available

127

Poulan 530031017

Bar Wrench

$

$

Not available

128

Poulan 530015195

Clip-High Tension lead (1st fin-bottom)

$2.49

$

Usually ships in 3-10 days

0

129

Poulan 530023609

Coil Insulator

$

$

Not available

130

Poulan 530022132

Vent Plug Ass'y.

$

$

Not available

131

Poulan 530021023

Line-Oil Tank Vent (7" Long Cut from No. 8133 Tubing)

$

$

Not available
