20 M - Troy-Bilt 5-Bushel Dump Cart MAIN ASSEMBLY Parts Diagram

5-Bushel Dump Cart

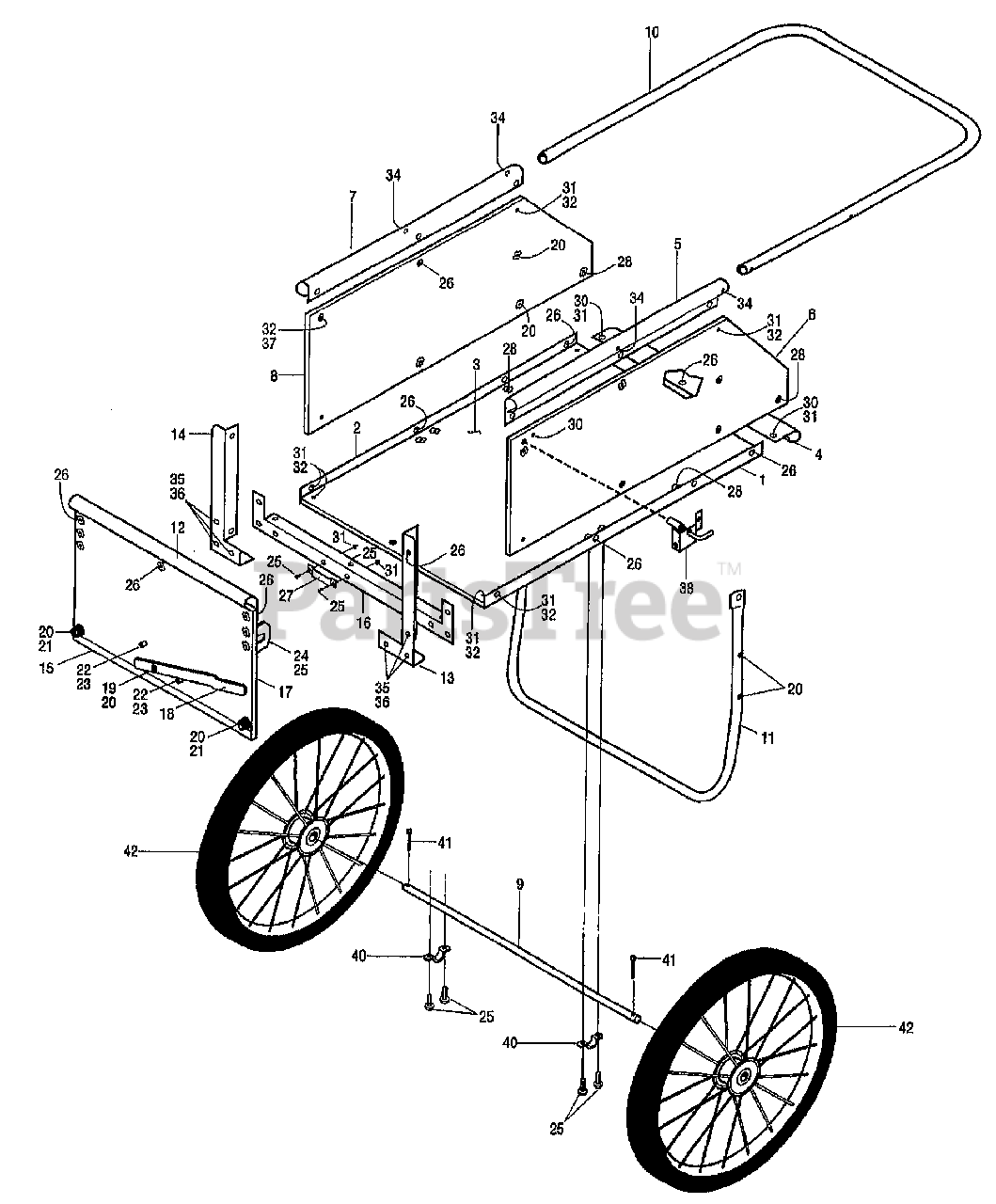

MAIN ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 03085

ANGLE-BOTTOM 20 SOLID FRONT LT

$

$

Currently unavailable

2

Troy-Bilt 03084

ANGLE-BOTTOM 20 SOLID FRONT RT

$

$

Currently unavailable

3

Troy-Bilt 03169

PANEL-BOTTOM W/TNUTS

$

$

Currently unavailable

4

Troy-Bilt 03364

PROTECTOR-REAR M20

$

$

Currently unavailable

5

Troy-Bilt 03088

SLEEVE-20 HANDLE LT

$

$

Currently unavailable

6

Troy-Bilt 03171

PANEL-LFT W/TNUTS M20

$

$

Currently unavailable

7

Troy-Bilt 03087

SLEEVE-20 HANDLE RT

$

$

Currently unavailable

8

Troy-Bilt 1902081

PANEL-RH W/TNUTS M20

$

$

Currently unavailable

9

Troy-Bilt 03316

AXLE-MODEL 20

$

$

Currently unavailable

10

Troy-Bilt 03306

MISC 20 HANDLE

$

$

Currently unavailable

11

Troy-Bilt 03437

STAND-M20 SF/DF

$

$

Currently unavailable

12

Troy-Bilt 03091

PROTECTOR-20 TOP EDGE

$

$

Currently unavailable

13

Troy-Bilt 03098

SUPT-20 SWING FRONT SIDE LT

$

$

Currently unavailable

14

Troy-Bilt 03097

SUPT-20 SWING FRONT SIDE RT

$

$

Currently unavailable

15

Troy-Bilt 03095

EDGE-BOTTOM M20

$

$

Currently unavailable

16

Troy-Bilt 03094

SUPT-BOTTOM 20 SWING FRONT

$

$

Currently unavailable

17

Troy-Bilt 03168

PANEL-FRONT DOOR W/TNUTS

$

$

Currently unavailable

18

Troy-Bilt 03074

LATCH-20&26 SWING FRONT

$

$

Currently unavailable

19

Troy-Bilt 03075

SPACER-20&26 SWING FRONT

$

$

Currently unavailable

20

Troy-Bilt 03211

BOLT-1/4 X 1 1/4 PAN HD

$

$

Currently unavailable

21

Troy-Bilt 03617

CASE FEET

$

$

Currently unavailable

22

Troy-Bilt 9427

BUSHING-.31X.188X.38

$

$

Currently unavailable

23

Troy-Bilt 9667

SCR-WOOD RHS M8X.75 ZP

$

$

Currently unavailable

24

Troy-Bilt 03072

HINGE-20&26 SWING FRONT

$

$

Currently unavailable

25

Troy-Bilt 03209

BOLT-1/4 X 5/8 PAN HD

$

$

Currently unavailable

26

Troy-Bilt 03208

SCR-PH 1/4-20 X .5

$

$

Currently unavailable

27

Troy-Bilt 03073

PLATE-LATCH 20&26 SWING FRONT

$

$

Currently unavailable

28

Troy-Bilt 03205

NUT-HT/LK 1/4-20X.375

$

$

Currently unavailable

29

0

N/A

$

$

Not available

30

Troy-Bilt 9675

BOLT-SLPH 1/4-20 X.875-ZP

$

$

Currently unavailable

31

Troy-Bilt 03207

NUT-LK 1/4-20

$

$

Currently unavailable

32

Troy-Bilt 03213

BOLT-1/4 X 1 PAN HD

$

$

Currently unavailable

33

0

N/A

$

$

Not available

34

Troy-Bilt 03214

SCR-PHS M6X.5 ZP

$

$

Currently unavailable

35

Troy-Bilt 9550

SCR-HH 5/16-18X.5 GD5 YEL

$

$

Currently unavailable

36

Troy-Bilt 92016

NUT-H/LK 5/16-18 NYLOCK

$

$

Currently unavailable

37

Troy-Bilt 03658

PIVOT-HINGE M26 R/D

$

$

Currently unavailable

38

Troy-Bilt 03069

ASSM-20&26 PLUNGER

$

$

Currently unavailable

39

0

N/A

$

$

Not available

40

Troy-Bilt 03203

CLAMP-AXLE 20 & 26

$

$

Currently unavailable

41

Troy-Bilt 03204

PIN-COTTER 3/32 X 1 1/4

$

$

Currently unavailable

42

Troy-Bilt 52202

WHEELS-T/B M20 CART BOX 2

$

$

Currently unavailable
