200 (UT-10699) - Homelite Chainsaw Chain Brake Parts Diagram

Chainsaw

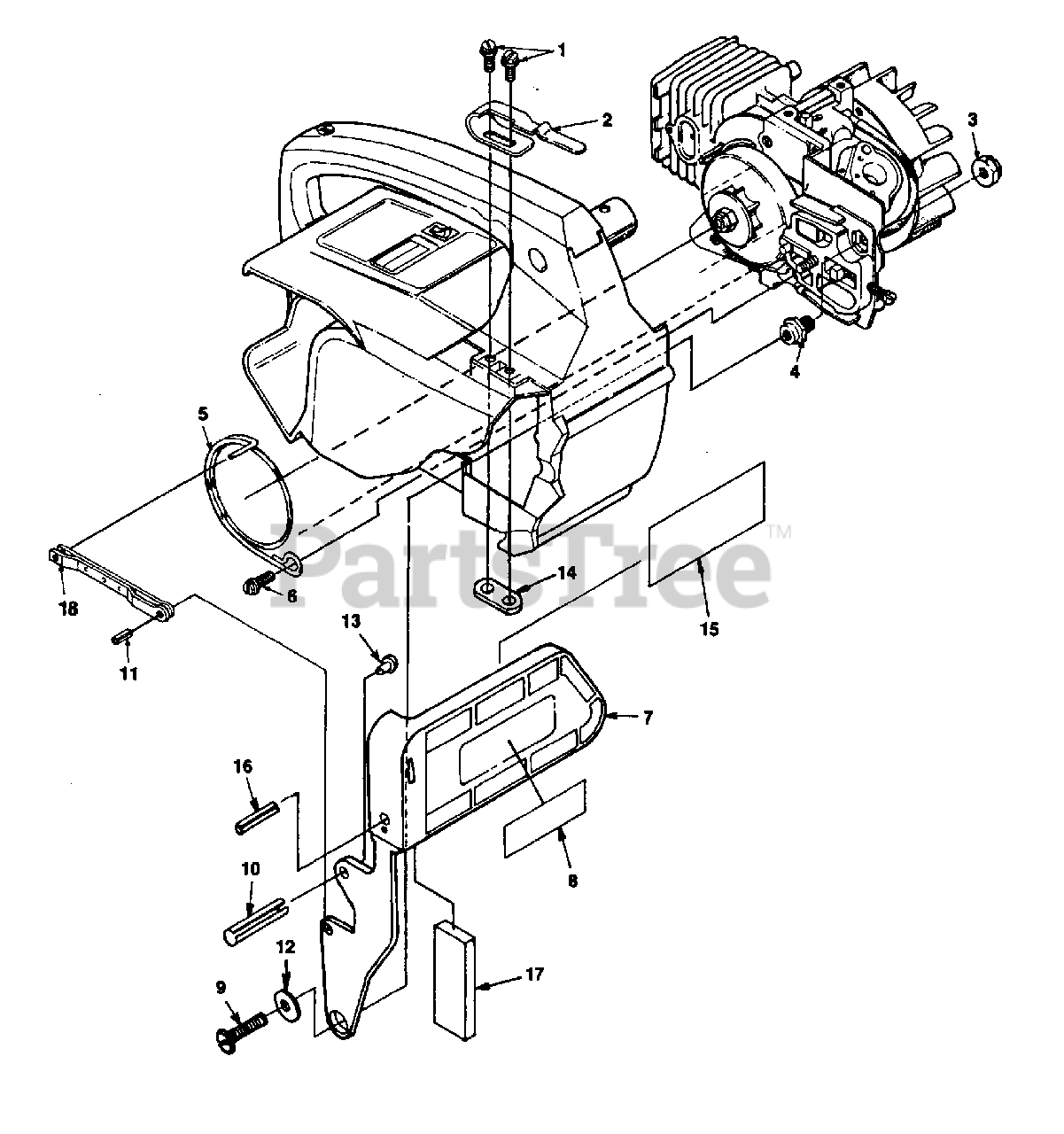

Chain Brake Parts Diagram

  • Title

1

Homelite 88066

SCREW- Hex hd. w/washer (8-32 x 1/2")
(Superseded to UP07656)

$

$

Not available

2

Homelite 02635

CLIP- Retaining

$

$

Not available

3

Homelite 81124A

NUT- Hex

$

$

Not available

4

Homelite 70636

POST- Chain brake

$

$

Not available

5

Homelite 70637B

BAND- Brake

$

$

Currently unavailable

6

Homelite 82579

SCREW- Torx (10-24 x 5/8")

$

$

Currently unavailable

7

Homelite A03061

HANDGUARD & LEVER

$

$

Currently unavailable

8

Homelite 02661

DECAL (International Only)

$

$

Not available

9

Homelite 82166

SCREW- (10-32 x 1/2")

$

$

Not available

10

Homelite JA461383

PIN- Roll (3/16 x 1")

$

$

Not available

11

Homelite 95395A

PIN- Spring
(Superseded to 671099001)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 70632

WASHER- Flat

$

$

Not available

13

Homelite 82367

SCREW- Drive

$

$

Not available

14

Homelite 02637

NUT- Weld

$

$

Not available

15

Homelite 02661

DECAL- Handguard

$

$

Not available

16

Homelite JA461361

PIN- Roll (1/8 x 7/8") (International Only)

$

$

Not available

17

Homelite 02462

WEIGHT (International Only)
(Superseded to 07567)

$

$

Not available

18

Homelite A70767

PIVOT- Link

$

$

Not available
