2000 (UT-26026) - Green Machine String Trimmer Carburetor - Air Filter - Fuel Tank Parts Diagram

String Trimmer

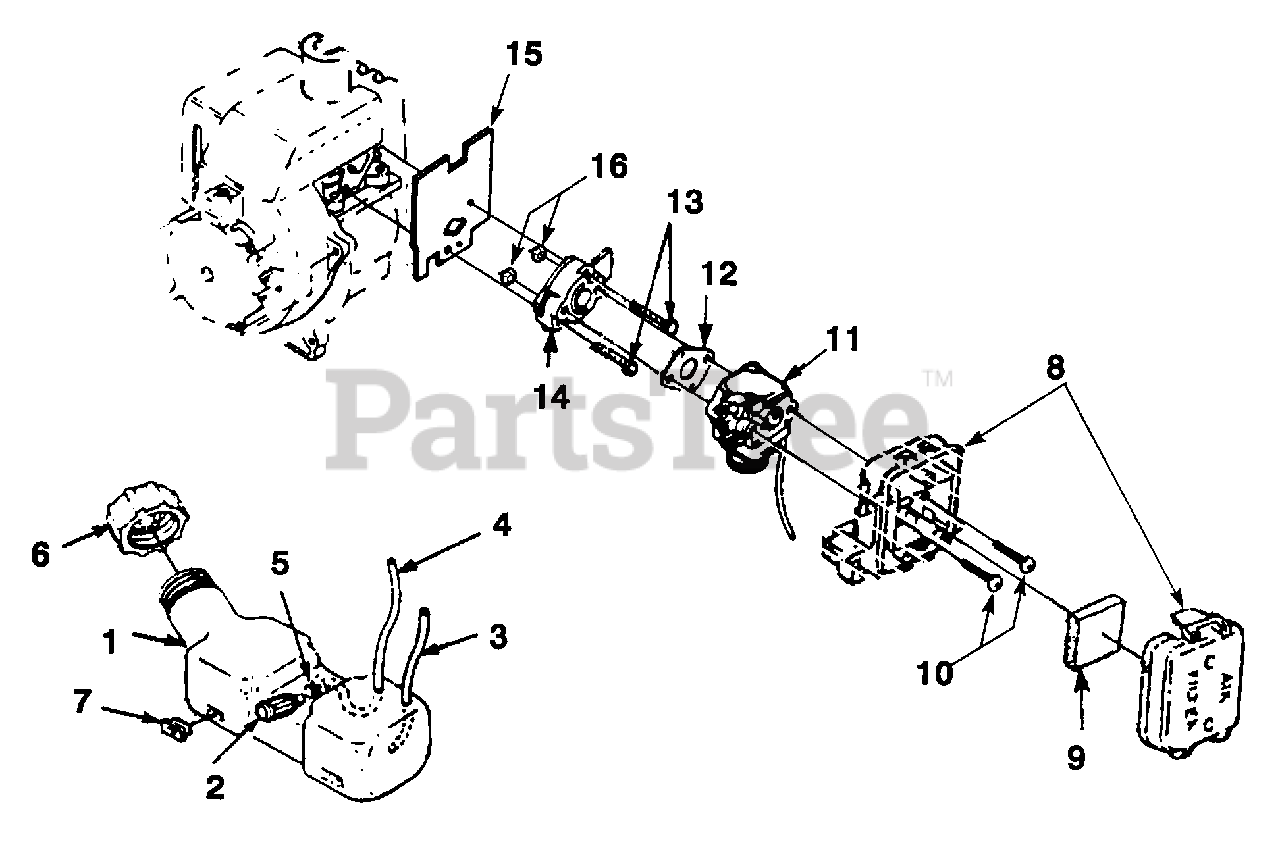

Carburetor - Air Filter - Fuel Tank Parts Diagram

  • Title

1

Homelite A04447D

Fuel Tank
(Superseded to UP00136A)

$

$

Not available

2

Homelite 49422

Filter-Fuel
(Superseded to PS03380)

$

$

Not available

3

Homelite 0143932

Tubing-Rubber (8")
(Superseded to UP03825)

$2.99

$

In Stock, only 4 left!

0

4

Homelite 9477232

Tubing-Rubber (8")
(Superseded to UP03905)

$

$

Not available

5

Homelite 98268

Clamp-Wire
(Superseded to 690765001)

$1.49

$

In Stock, Qty 6

0

6

Homelite A00982B

Fuel Cap
(Superseded to UP04111)

$

$

Not available

7

Homelite 98792

Bumper-Rubber

$1.49

$

In Stock, only 3 left!

0

8

Homelite A04707A

Air Filter Kit

$

$

Not available

9

Homelite D98760B

Air Filter
(Superseded to 98760)

$1.49

$

In Stock, Qty 8

0

10

Homelite 88060

Screw-Sems Hex Hd (10-24 x 2 1/2")
(Superseded to 660673001)

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$1.49

$

Usually ships in 3-7 days

0

11

Homelite A04445A

Carburetor

$

$

Not available

12

Homelite 98766A

Gasket, Carburetor
(Superseded to 900994004)

Note: Also included in Short Block & Cylinder Kit

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 093221

Screw, Sems (10-24 x 1")
(Superseded to 660662001)

Note: Torque Specs: 73-83 In/Lbs; 8.2-9.4 Nm

$

$

Not available

14

Homelite 00864B

Heat Dam
(Superseded to 00864C)

$15.99

$

Usually ships in 3-7 days

0

15

Homelite 08840

Heat Dam Gasket

Note: Also included in Short Block & Cylinder Kit

$

$

Not available

16

Homelite 81208

Nut-Hex (10-24)

$

$

Not available
