2000 (UT-26026) - Green Machine String Trimmer Deflector, Bushing And Stringhead Parts Diagram

String Trimmer

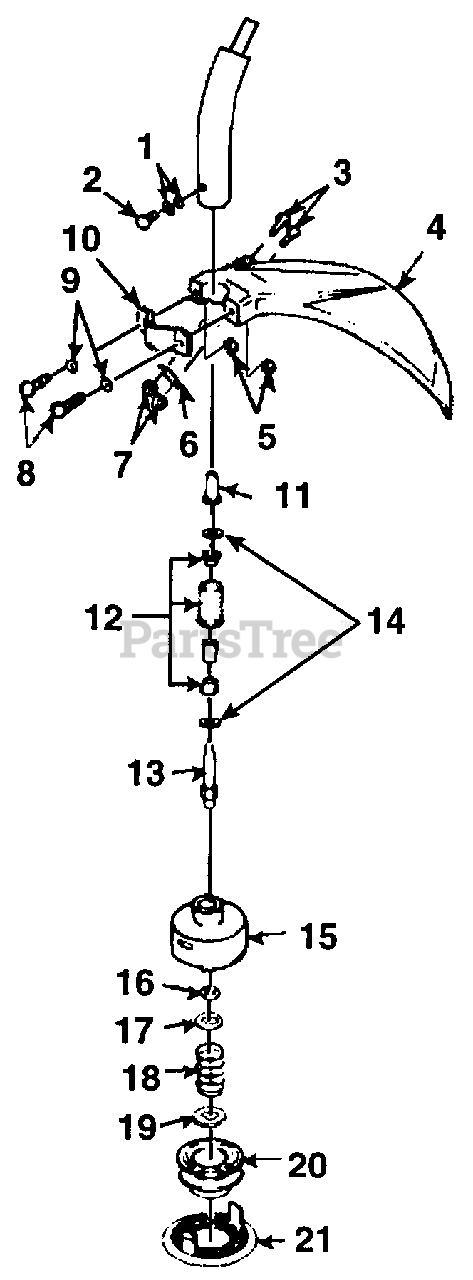

Deflector, Bushing And Stringhead Parts Diagram

  • Title

1

Homelite GM041101

Washer

$

$

Not available

2

Homelite GM011402

Screw

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

Homelite GM160306

Head Shield Assembly

$

$

Not available

3

Homelite GM011402

Screw

Note: Torque Specs: 15-20 In/Lbs; 1.7-2.3 Nm

$

$

Not available

4

Homelite GM165206

Deflector

$

$

Not available

5

Homelite GM051002

Nut
(Superseded to UP03400)

Note: Torque Specs: 25-35 In/Lbs; 2.8-3.9 Nm

$

$

Not available

6

Homelite GM166901

Blade, Cut-Off

$

$

Not available

7

Homelite GM051001

Nut

Note: Torque Specs: 15-20 In/Lbs; 1.7-2.3 Nm

$

$

Not available

8

Homelite GM011417

Screw

Note: Torque Specs: 25-35 In/Lbs; 2.8-3.9 Nm

$

$

Not available

9

Homelite GM040002

Washer

$

$

Not available

10

Homelite GM166902

Bracket Clamp

$

$

Not available

Homelite A09121

Arbor/Bushing Assembly

$

$

Not available

11

Homelite GM166501

Adapter, Arbor

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

12

Homelite A09119

Bushing Assembly

$

$

Not available

13

Homelite 09199

Arbor Post

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

14

Homelite 00118

Thrust Washer

$

$

Not available

Homelite DG07795

3" Head Assembly

$48.99

$

Usually ships in 3-7 days

0

15

Homelite GM160310

3" Head Body

$

$

Not available

16

Homelite GM167602

Pal Nut

$

$

Not available

17

Homelite GM166903

Plate, Spring

$

$

Not available

18

Homelite GM167901

Spring
(Superseded to UP06740)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite GM166903

Plate, Spring

$

$

Not available

20

Homelite GM165209

3" Spool

$

$

Not available

21

Homelite GM165208

3" Head Cap
(Superseded to GM20105)

$

$

Not available

Homelite DG07810

3" Spool With Line
(Superseded to GM165209)

Note: Optional Accessories (Not Shown)

$

$

Not available

Homelite DG07819

Shoulder Strap

Note: Optional Accessories (Not Shown)

$

$

Not available

Homelite G07830

EXACT-MIX 2 cyl. Oil

Note: Optional Accessories (Not Shown)

$

$

Not available
