2000 (UT-26026) - Green Machine String Trimmer Handle Parts Diagram

String Trimmer

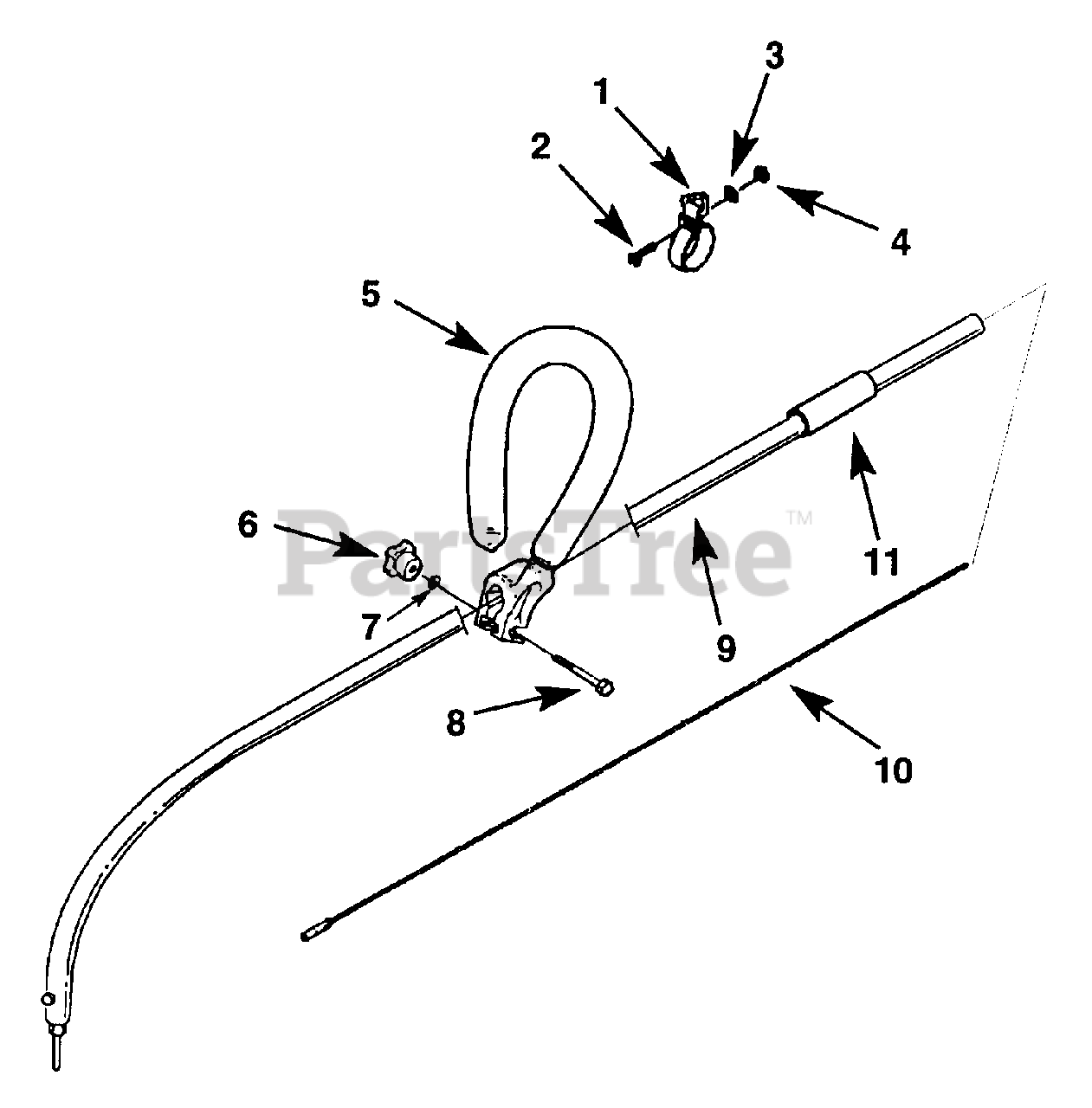

Handle Parts Diagram

  • Title

1

Homelite GM300245

Hanger Assembly
(Superseded to UP06800)

$

$

Not available

2

Homelite GM010002

Screw

Note: Torque Specs: 5-30 In/Lbs; .5-3.4 Nm

$1.49

$

Usually ships in 3-7 days

0

3

Homelite GM041101

Washer

$

$

Not available

4

Homelite GM050003

Nut

Note: Torque Specs: 5-30 In/Lbs; .5-3.4 Nm

$

$

Not available

5

Homelite GM300302

Handle Assembly

$

$

Not available

6

Homelite 08290

Knob

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

7

Homelite 84006

Washer

$

$

Not available

8

Homelite 80295

Bolt

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$2.99

$

Usually ships in 3-7 days

0

9

Homelite A08947

Tube Assembly W/Bushing

$

$

Not available

10

Homelite 07486

Driveshaft Cable

$

$

Not available

11

Homelite 03234A

Grip

$

$

Not available
