20007 - Toro 22" Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) Deck, Side Chute and Rear Door Assembly Parts Diagram

22" Recycler Walk-Behind Mower

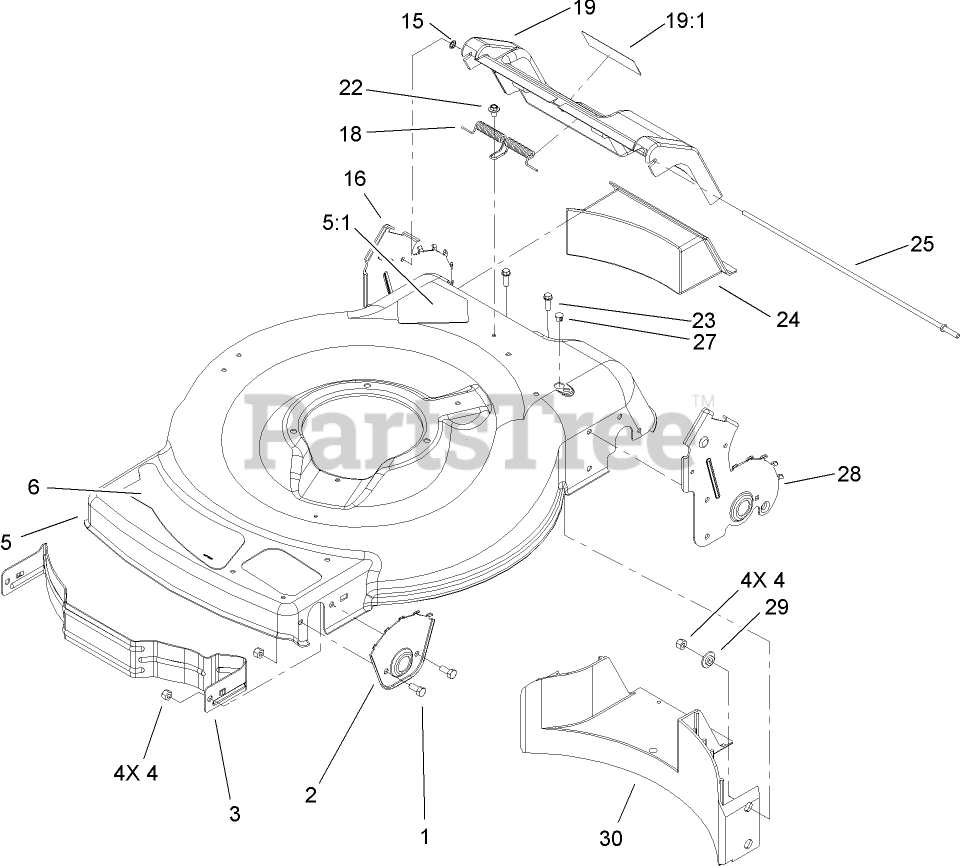

Deck, Side Chute and Rear Door Assembly Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 105-1808-03

DISCONTINUED

$

$

Not available

3

Toro 104-8694-03

BAFFLE-FRONT

$122.99

$

In Stock, only 1 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 106-8383

HOUSING ASM

$567.99

$

Usually ships in 3-6 days

0

5:1

Toro 105-6838

DECAL-DANGER

$6.99

$

In Stock, only 1 left!

0

6

Toro 105-1296

DECAL-DECK

$

$

Not available

15

Toro 32112-6

NUT-PUSH

$6.99

$

In Stock, only 4 left!

0

16

Toro 107-0790

See Supercession: 112-6441
(Superseded to 112-6441)

$

$

Not available

18

Toro 105-3032

SPRING-DOOR, REAR

$24.99

$

In Stock, only 2 left!

0

19

Toro 105-1323

REAR DOOR ASM

$

$

Not available

19:1

Toro 105-1295

DECAL-WARNING

$3.49

$

In Stock, only 1 left!

0

22

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 2 left!

0

23

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

24

Toro 105-1842

PLUG-DISCHARGE, REAR

$12.99

$

In Stock, only 2 left!

0

25

Toro 105-1827

ROD-PIVOT, REAR DOOR

$14.99

$

Usually ships in 3-6 days

0

27

Toro 104-9369

PLUG-DOME

$1.49

$

In Stock, only 1 left!

0

28

Toro 107-0783

See Supercession: 112-6443
(Superseded to 112-6443)

$33.99

$

Usually ships in 3-6 days

0

29

Toro 105-3006

WASHER-STEPPED

$2.99

$

Usually ships in 3-6 days

0

30

Toro 105-3047

BAFFLE-REAR

$

$

Not available
