2000PT (3070538) - Giant-Vac PTO Tow-Behind Blower Frame Group Parts Diagram

PTO Tow-Behind Blower

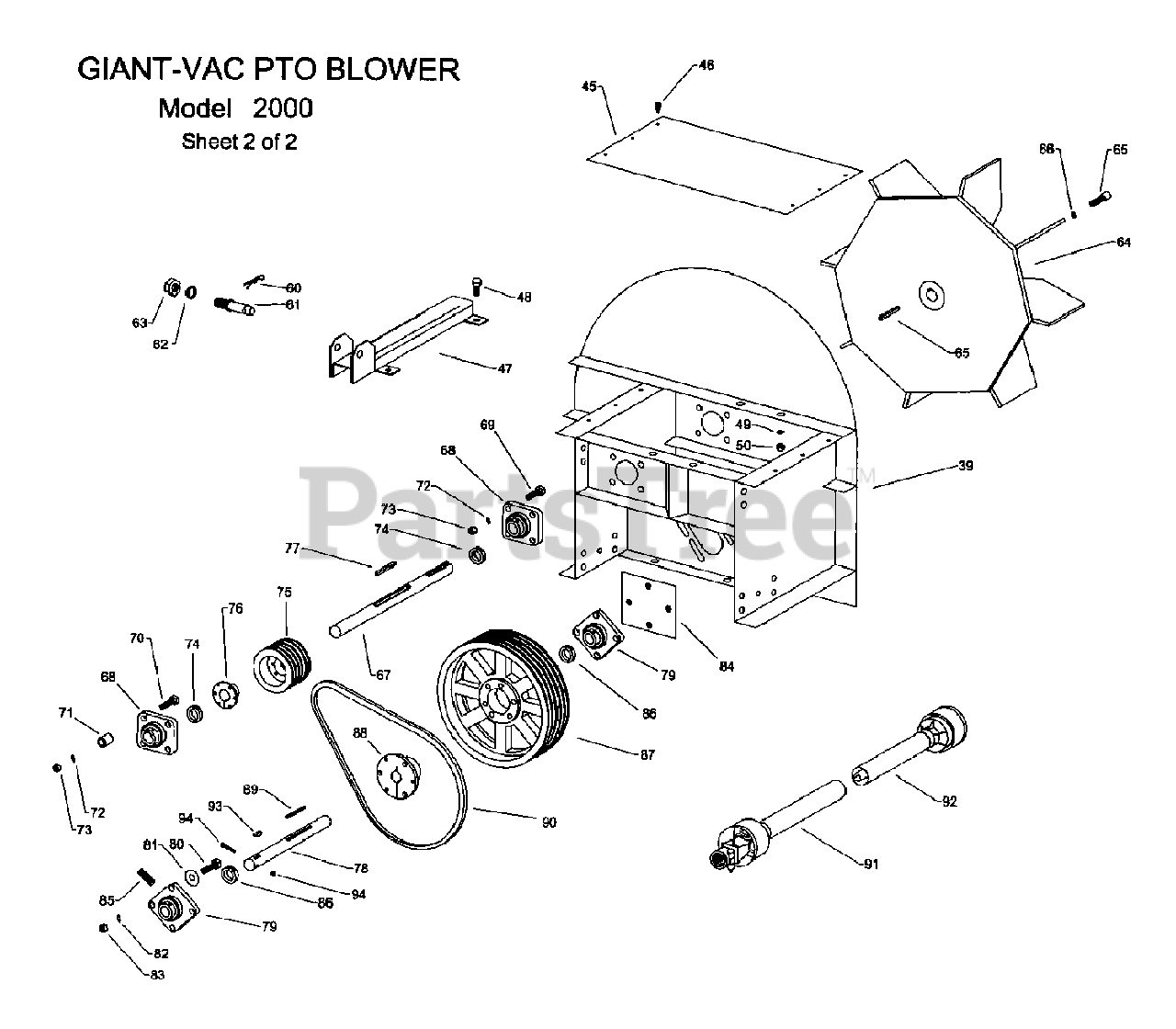

Frame Group Parts Diagram

  • Title

39

Front side of item #1 on sheet 1

$

$

Not available

45

Giant-Vac 3037128

Shaft frame top cover plate

$

$

Currently unavailable

46

Giant-Vac 3031562

#12 x 3/4 self tapping screw
(Superseded to 1723636SM)

$2.99

$

In Stock, only 2 left!

0

47

Giant-Vac 3038035

Top hitch point bracket

$

$

Currently unavailable

48

Giant-Vac 3031084

1/2 x 1-1/4 hex bolt

$

$

Not available

49

Giant-Vac 3031078

1/2 lockwasher

$

$

Currently unavailable

50

Giant-Vac 3031022

1/2 hex nut

$

$

Currently unavailable

61

Giant-Vac 3031463

Hitch pin

$

$

Currently unavailable

62

Giant-Vac 3031464

7/8 hitch pin nut

$

$

Currently unavailable

63

3031465

7/8 hitch pin lockwasher

$

$

Not available

64

Giant-Vac 3021548

Impeller, 22"

$

$

Not available

65

3031456

Impeller bolt & key (5/8 x 3)

$

$

Not available

66

Giant-Vac 3031457

5/8 lockwasher

$

$

Currently unavailable

67

Giant-Vac 3036255

Impeller shaft

$

$

Currently unavailable

68

Giant-Vac 3036163

Impeller shaft bearing

$

$

Currently unavailable

69

Giant-Vac 3031459

1/2 x 1-3/4 hex bolt (impeller shaft inner bearing)

$

$

Currently unavailable

70

Giant-Vac 3031461

1/2 x 2-1/2 hex bolt (impeller shaft outer bearing)
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

71

Giant-Vac 3031460

Impeller shaft outer bearing spacer

$

$

Currently unavailable

72

Giant-Vac 3031078

1/2 lockwasher

$

$

Currently unavailable

73

Giant-Vac 3031022

1/2 hex nut

$

$

Currently unavailable

74

Giant-Vac 3031458

Impeller shaft collar

$

$

Currently unavailable

75

Giant-Vac 3036256

Impeller shaft pulley

$

$

Not available

76

Giant-Vac 3036233

Impeller shaft pulley hub ass’y (w/hardware)

$

$

Currently unavailable

77

Giant-Vac 3031677

Key - 3/8 x 3-1/2

$

$

Not available

78

Giant-Vac 3036257

Lower input shaft

$

$

Currently unavailable

79

Giant-Vac 3036167

Lower input shaft bearing

$

$

Currently unavailable

80

Giant-Vac 3031147

1/2 x 1-3/4 hex bolt

$

$

Currently unavailable

81

Giant-Vac 3031043

1/2 flatwasher
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

82

Giant-Vac 3031078

1/2 lockwasher

$

$

Currently unavailable

83

Giant-Vac 3031022

1/2 hex nut

$

$

Currently unavailable

84

Giant-Vac 3037100

Lower input shaft inner bearing bolt plate

$

$

Currently unavailable

85

Giant-Vac 3031453

1/2 x 4 Allen head pusher bolt

$

$

Not available

86

Giant-Vac 3031462

Lower input shaft locking collar

$

$

Currently unavailable

87

Giant-Vac 3036258

Lower input shaft pulley

$

$

Currently unavailable

88

Giant-Vac 3036231

Lower input shaft pulley hub ass’y (w/hardware)

$

$

Not available

89

Giant-Vac 3031678

Key - 1/4 x 2-1/4

$

$

Not available

90

Giant-Vac 3036259

Drive belts (4 to a set)

$

$

Currently unavailable

91

Giant-Vac 3036253

Drive shaft - tractor end*

$

$

Not available

92

Giant-Vac 3036254

Drive shaft - unit end*

$

$

Not available

Giant-Vac 3036252

* Drive shaft - complete assembly (Items 91 & 92)

$

$

Not available

93

Giant-Vac 3031449

5/16 drive shaft key

$

$

Currently unavailable

94

3031448

¼ x 2-1/2 bolt & nut

$

$

Not available

60

Giant-Vac 3031469

Jack stand hair clip

$

$

Currently unavailable
