20010 (R-21 P) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE AND BLADE ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

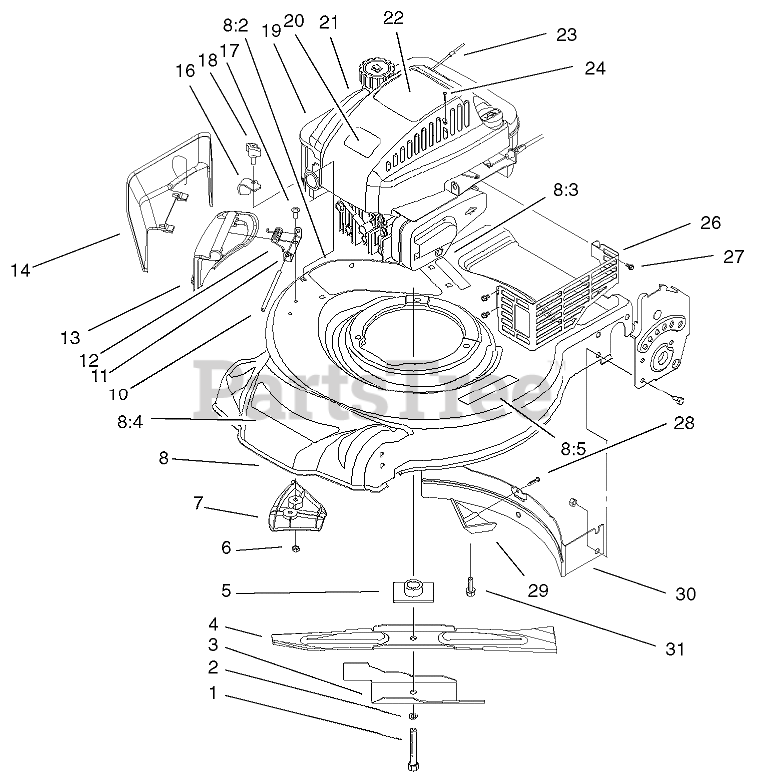

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$21.99

$

In Stock, only 4 left!

0

2

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

3

Toro 93-0219-03

ACCELERATOR

$43.99

$

In Stock, only 4 left!

0

4

Toro 93-0241-03

BLADE-STEEL DECK

$42.99

$

In Stock, Qty 5

0

5

Toro 104-1008

RETAINER-BLADE

$94.99

$

Usually ships in 3-6 days

0

6

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

7

Toro 99-6349

BAFFLE

$25.99

$

Usually ships in 3-6 days

0

8

Toro 100-1181

HOUSING ASM

$

$

Not available

8:2

Toro 43-8480

DECAL-DANGER

$7.49

$

In Stock, Qty 6

0

8:3

Toro 99-6018

DECAL-WARNING

$2.99

$

Usually ships in 3-6 days

0

8:4

Toro 99-6011

DECAL - DECK

$20.99

$

Usually ships in 3-6 days

0

8:5

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$7.99

$

Usually ships in 3-6 days

0

10

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

11

Toro 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$14.99

$

In Stock, only 2 left!

0

12

Toro 99-5293

SPRING-TORSION

$11.99

$

In Stock, Qty 20+

0

13

Toro 99-5294

COVER-SIDE

$23.99

$

Usually ships in 3-6 days

0

14

Toro 99-5295

CHUTE-SIDE

$16.99

$

In Stock, only 2 left!

0

16

Toro 100-1589-03

CLAMP-DOOR

$19.99

$

Usually ships in 3-6 days

0

17

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 98-8332

KNOB

$5.49

$

In Stock, Qty 7

0

19

Engine-Quantum Briggs and Stratton Model 12h802-1776-B1

Note: Not serviced

$

$

Not available

20

Toro 98-3206

Decal

$2.49

$

In Stock, only 2 left!

0

21

Toro 93-0243

SHROUD-ENGINE

$63.99

$

Usually ships in 3-6 days

0

22

Toro 99-6013

DECAL - RECOIL

$35.99

$

In Stock, only 1 left!

0

23

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

24

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

26

Toro 104-7577-03

SHIELD-MUFFLER

$27.99

$

Usually ships in 3-6 days

0

27

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

28

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 19

0

29

Toro 93-0217

KICKER-REAR

$

$

Not available

30

Toro 93-0223-03

BAFFLE-REAR

$31.99

$

In Stock, only 1 left!

0

31

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0
