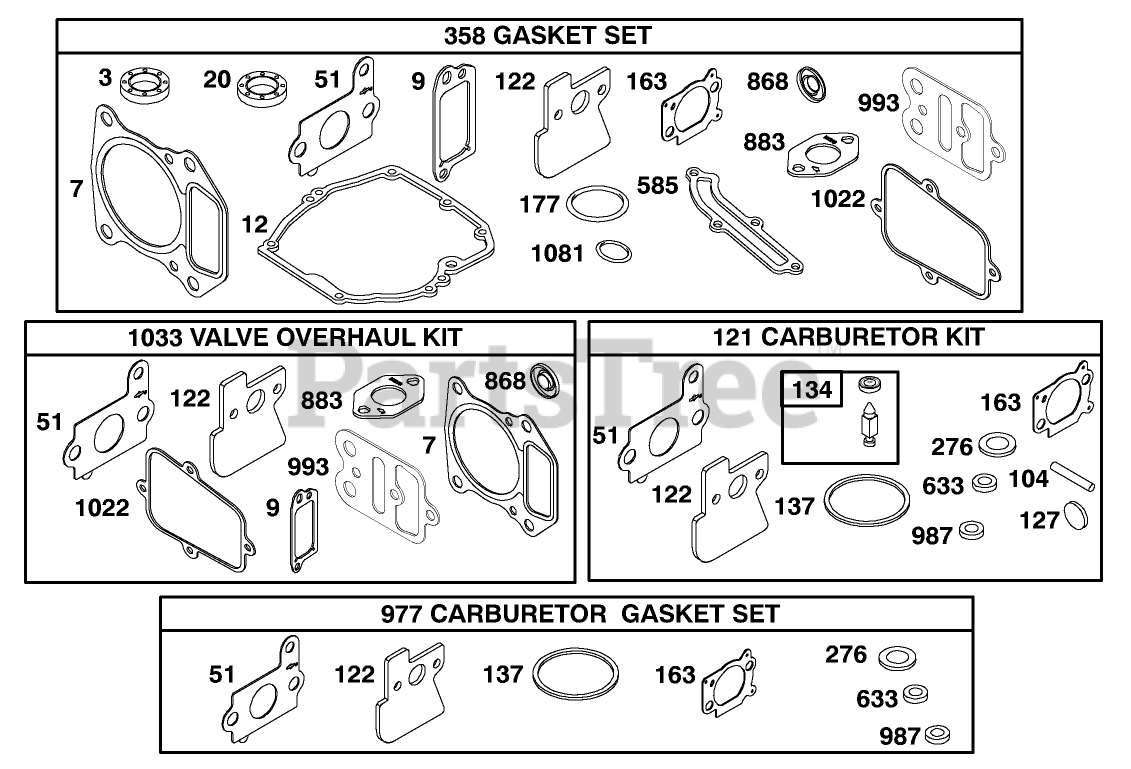

20011 (R-21 OS) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) Engine Briggs Stratton Model 122602-0150-E1 10 Parts Diagram

21" Recycler Walk-Behind Mower

Engine Briggs Stratton Model 122602-0150-E1 10 Parts Diagram

  • Title

3

Toro 299819

Seal-Oil

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

7

Toro 273240

Cylinder Head Gasket

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

7

Toro 273240

Cylinder Head Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

7

Toro 273240

Cylinder Head Gasket

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

12

Toro 272198

Gasket

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

12

Toro 272198

Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

20

Toro 399781

Seal-Oil

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

20

Toro 399781

Seal-Oil

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

51

Toro 272248

Intake Gasket

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

51

Toro 272248

Intake Gasket

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

51

Toro 272248

Intake Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

104

Toro 231371

Spring
(Superseded to 701979)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

177

Toro 280393

O-Ring Seal

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

177

Toro 280393

O-Ring Seal

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

121

Toro 692703

Carburetor Overhaul Kit

$

$

Currently unavailable

122

Toro 692799

Gasket-Intake

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

122

Toro 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

122

Toro 692799

Gasket-Intake

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

127

Welch Plug (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

137

Float Bowl Gasket (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

137

Float Bowl Gasket (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

163

Toro 273364

Air Cleaner Gasket

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

163

Toro 273364

Air Cleaner Gasket

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

163

Toro 273364

Air Cleaner Gasket

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

163

Toro 273364

Air Cleaner Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

276

Washer(Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

276

Washer(Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

358

Toro 692702

Gasket Set

$

$

Currently unavailable

585

Toro 272238

Gasket-Breather

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

585

Toro 272238

Gasket-Breather

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

708

Choke Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

708

Choke Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

868

Toro 498592

Valve Seal

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

868

Toro 498592

Valve Seal

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

868

Toro 498592

Valve Seal

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

883

Toro 273348

Exhaust Gasket

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

883

Toro 273348

Exhaust Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

883

Toro 273348

Exhaust Gasket

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

977

Toro 692704

Gasket Set?Carburetor

$

$

Currently unavailable

987

Throttle Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

987

Throttle Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

993

Toro 273346

Gasket

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

993

Toro 273346

Gasket

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

993

Toro 273346

Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

1022

Toro 273787

Rocker Cover Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

1022

Toro 273787

Rocker Cover Gasket

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

1022

Toro 273787

Rocker Cover Gasket

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

1033

Toro 692705

Valve Overhaul Kit

$

$

Currently unavailable

1081

Toro 280966

O-Ring Seal

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

1081

Toro 280966

O-Ring Seal

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable
