20013 - Toro 22" Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) CARBURETOR ASSEMBLY NO. 640303 TECUMSEH MODEL NO. LV195EA-362003B Parts Diagram

22" Recycler Walk-Behind Mower

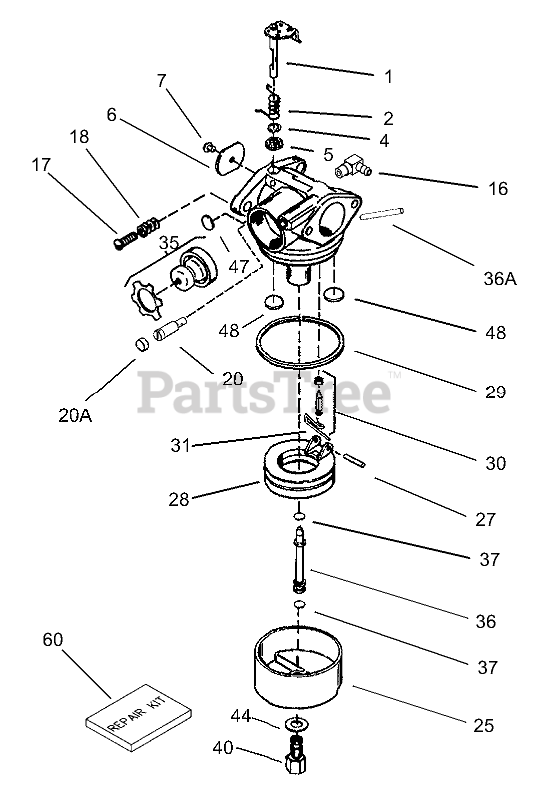

CARBURETOR ASSEMBLY NO. 640303 TECUMSEH MODEL NO. LV195EA-362003B Parts Diagram

  • Title

Tecumseh Part# 640303

Carburetor (Incl. Ref. #184 of Engine Parts List)
(Superseded to 640350)

Note: Original Tecumseh Part

Usually ships in 1 day

$

$109.20

0

1

Tecumseh Part# 631615

Throttle Shaft and Lever ASM

Note: Original Tecumseh Part

Usually ships in 1 day

$

$9.08

0

2

Tecumseh Part# 631767

Spring-Return, Throttle

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.76

0

4

Tecumseh Part# 631184

Washer-Seal, Dust

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.76

0

5

Tecumseh Part# 631183

Seal-Dust

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.76

0

6

Tecumseh Part# 640070

Shutter-Throttle

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.76

0

7

Tecumseh Part# 650506

Screw-Shutter

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.22

0

16

Tecumseh Part# 631807

Fitting-Fuel

Note: Original Tecumseh Part

Usually ships in 1 day

$

$8.44

0

17

Tecumseh Part# 651025

Screw-Throttle Crack and Idle Speed

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.66

0

18

Tecumseh Part# 630766

Spring-Tension

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.76

0

20

Tecumseh Part# 640018

Screw-Restrictor, Idle

Note: Original Tecumseh Part

Usually ships in 1 day

$

$8.62

0

20A

Tecumseh Part# 640200

Cap-Screw, Restrictor Idle

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.68

0

25

Tecumseh Part# 631867

Bowl-Float (no drain)

Note: Original Tecumseh Part

Usually ships in 1 day

$

$3.28

0

27

Tecumseh Part# 631024

Shaft-Float

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.64

0

28

Tecumseh Part# 632802

Float (Plastic)
(Superseded to 632816)

Note: Original Tecumseh Part

Usually ships in 1 day

$

$8.26

0

29

Tecumseh Part# 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.38

0

30

Tecumseh Part# 632807

Inlet Needle, Seat, & Clip (Incl. Ref. # 31)
(Superseded to 631021B)

Note: Original Tecumseh Part

Usually ships in 1 day

$

$5.40

0

31

Tecumseh Part# 631022

Clip-Spring

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.76

0

35

Tecumseh Part# 640259

Primer Bulb / Retainer Ring ASM

Note: Original Tecumseh Part

Usually ships in 1 day

$

$8.62

0

36

Tecumseh Part# 640019

Tube-Nozzle, Main

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.76

0

36A

Tecumseh Part# 632766

Tube-Carburetor

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.76

0

37

Tecumseh Part# 632547

O-Ring

Note: Original Tecumseh Part

Usually ships in 1 day

$

$2.08

0

40

Tecumseh Part# 640087

Nut-Bowl, High Speed

Note: Original Tecumseh Part

Usually ships in 1 day

$

$7.22

0

44

Tecumseh Part# 27110A

Washer-Nut, Bowl

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.50

0

47

Tecumseh Part# 630748

Plug-Welch, Idle Mixture Well

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.64

0

48

Tecumseh Part# 631027

Plug-Welch, Atmospheric Vent

Note: Original Tecumseh Part

Usually ships in 1 day

$

$1.64

0

60

Tecumseh Part# 632809

Repair kit (Incl. Items Marked in Notes)
(Superseded to 632760B)

Note: Original Tecumseh Part

Usually ships in 1 day

$

$17.23

0
