20013 - Toro 22" Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

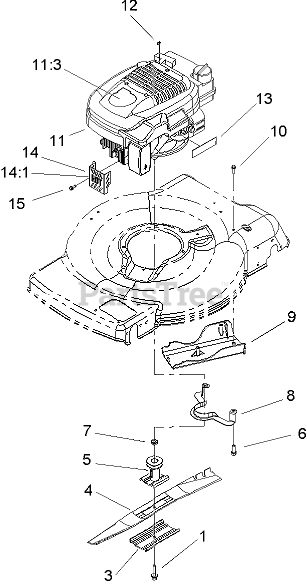

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 105-8579

BOLT-BLADE
(Superseded to 125-2466)
Usually ships in 1 day

$

$2.23

0

3

Toro Part# 105-3029-03

Support-Blade
(Superseded to 108-3766-03)
Usually ships in 1 day

$

$8.93

0

4

Toro Part# 104-8697-03

BLADE-22 INCH
(Superseded to 131-4547-03)
Usually ships in 1 day

$

$24.59

0

5

Toro Part# 106-3987

DRIVER-BLADE
Usually ships in 1 day

$

$27.94

0

6

Toro Part# 95-1726

SCREW-TAPTITE
Usually ships in 1 day

$

$1.61

0

7

Toro Part# 106-3999

Spacer-Driver
Usually ships in 1 day

$

$2.73

0

8
Usually ships in 1 day

$

$12.07

0

9

Toro Part# 105-1835

Cover-Belt, Rear
Usually ships in 1 day

$

$12.48

0

10

Toro Part# 46-8091

SCREW-HWH
Usually ships in 1 day

$

$1.11

0

11

Part#

ENGINE-TECUMSEH, LEV195EA-362003B

Note: Not serviced separately

Usually ships same day

Not available

$

$

11

Part#

ENGINE-TECUMSEH, LEV195EA-362003B

Note:

Usually ships same day

Not available

$

$

11:3

Toro Part# 108-4825

DECAL-TEC SHROUD
Usually ships same day

Currently unavailable

$

$

12

Toro Part# 92-1701

STOP-ROPE
(Superseded to 2210-316)
Usually ships in 5 to 8 days

$

$5.89

0

13

Toro Part# 105-6832

DECAL-PRIMER
Usually ships in 5 to 8 days

$

$5.22

0

14

Toro Part# 106-8387

MUFFLER GUARD ASM
Usually ships in 5 to 8 days

$

$21.77

0

14:1

Toro Part# 106-5517

DECAL-WARNING
Usually ships in 1 day

$

$2.83

0

15
Usually ships in 1 day

$

$1.11

0
