20013 - Toro 22" Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) FRONT AXLE AND WHEEL ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

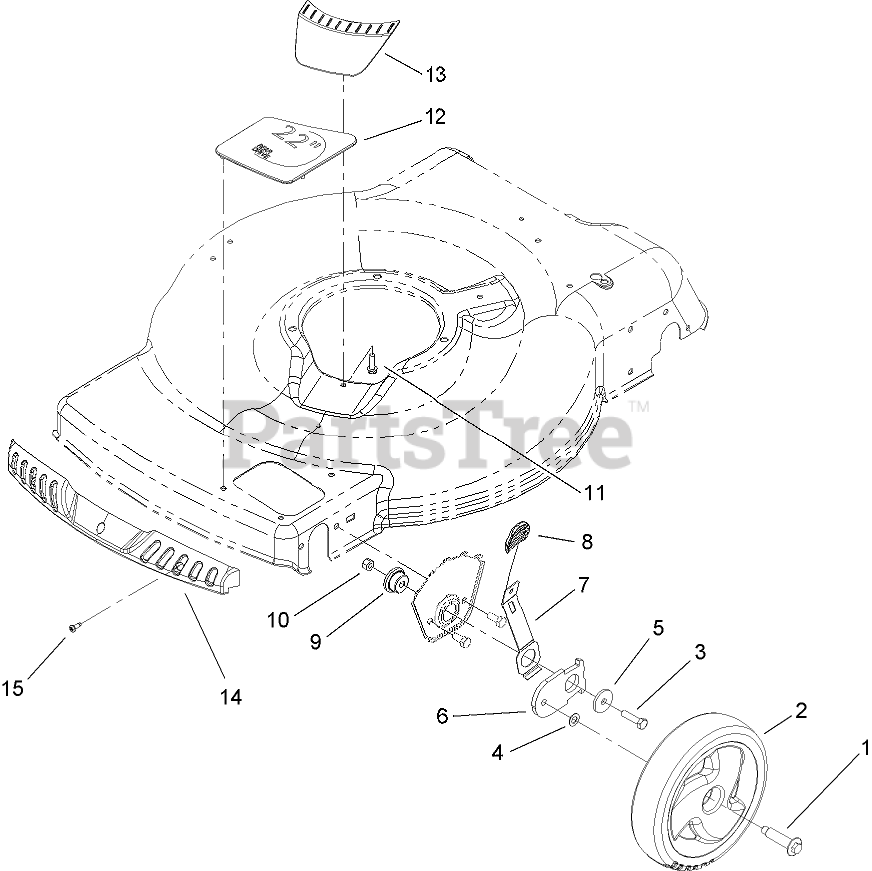

FRONT AXLE AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 614650

BOLT-SHOULDER
Usually ships in 1 day

$

$4.01

0

2

Toro Part# 105-1814

WHEEL ASM (59505)
Usually ships in 1 day

$

$23.47

0

3

Toro Part# 322-6

SCREW-HH
Usually ships in 1 day

$

$3.58

0

Usually ships in 1 day

$

$1.38

0

5

Toro Part# 105-3048

Washer-Flat
Usually ships in 1 day

$

$0.55

0

6

Toro Part# 105-1807

ARM-PIVOT, FRONT
(Superseded to 137-9128)
Usually ships in 1 day

$

$7.82

0

7

Toro Part# 105-1809

Arm-Spring
Usually ships in 1 day

$

$9.25

0

8

Toro Part# 105-3042

Knob-Lever, HOC
Usually ships in 1 day

$

$3.90

0

9

Toro Part# 105-1818

Bushing-Mount, HOC
Usually ships in 1 day

$

$4.03

0

10

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$2.00

0

11

Toro Part# 46-8091

SCREW-HWH
Usually ships in 1 day

$

$1.11

0

12

Toro Part# 105-3004

Cover-Cutout
Usually ships in 1 day

$

$5.07

0

13

Toro Part# 105-3005

COVER-BELT OPENING
Usually ships in 5 to 8 days

$

$5.51

0

14

Toro Part# 104-9359

Bumper-Mower
Usually ships same day

Not available

$

$

15

Toro Part# 105-6849

SCREW-FORMING, THREAD
Usually ships in 1 day

$

$0.75

0
