20013 - Toro 22" Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

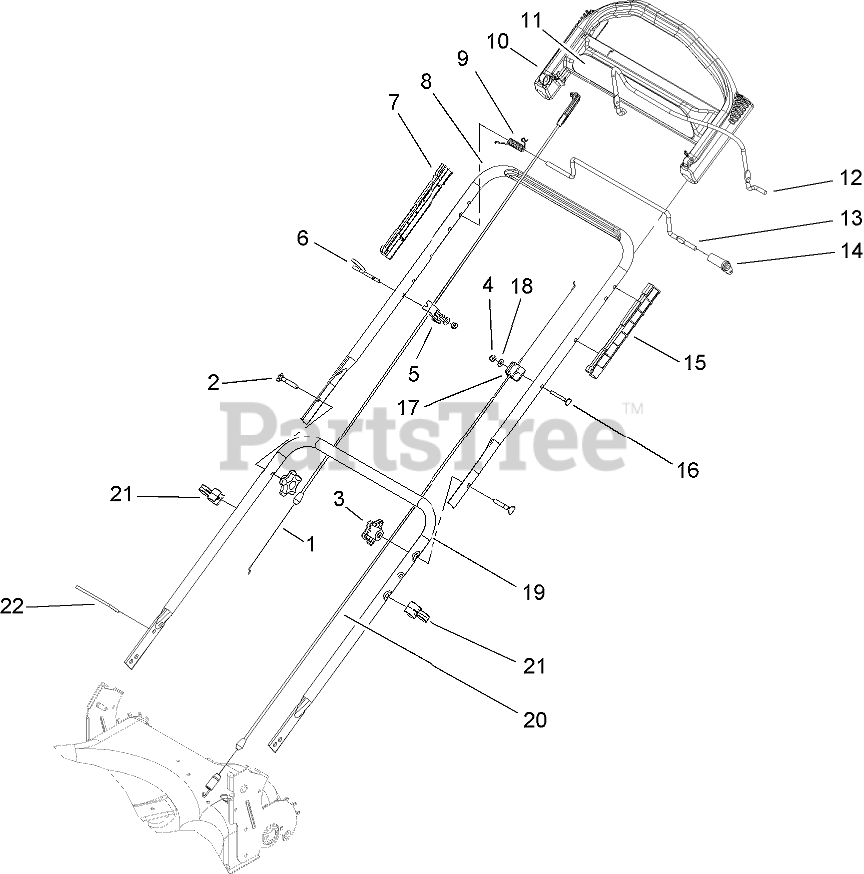

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 104-8676

Cable-Brake
Usually ships in 1 day

$

$29.06

0

2

Toro Part# 92-2260

SCREW-HANDLE
Usually ships in 1 day

$

$3.34

0

3

Toro Part# 106-4161

KNOB-HANDLE
Usually ships in 1 day

$

$3.30

0

4

Toro Part# 3296-73

NUT-LOCK, NI
Usually ships in 1 day

$

$3.21

0

5

Toro Part# 106-8331

ANCHOR-CABLE
Usually ships in 1 day

$

$4.20

0

6

Toro Part# 106-8330

GUIDE-ROPE
Usually ships in 1 day

$

$4.20

0

7
Usually ships in 1 day

$

$6.93

0

8

Toro Part# 104-8680-05

Handle-Upper
Usually ships in 1 day

$

$52.77

0

9

Toro Part# 104-8690

Spring-Torsion
(Superseded to 136-7166)
Usually ships in 1 day

$

$2.23

0

10

Toro Part# 104-8678

HANDLE-CONTROL
Usually ships in 1 day

$

$66.33

0

11

Toro Part# 105-3033

Decal-Handle, Control
Usually ships in 5 to 8 days

$

$16.95

0

12

Toro Part# 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)
Usually ships in 1 day

$

$12.54

0

13

Toro Part# 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)
Usually ships in 1 day

$

$13.22

0

14

Toro Part# 99-1589

LEVER-TRACTION
Usually ships in 1 day

$

$5.91

0

15
Usually ships in 1 day

$

$6.93

0

Usually ships in 1 day

$

$2.23

0

17

Toro Part# 92-7729

ANCHOR-CABLE, UPPER
Usually ships in 1 day

$

$3.78

0

18

Toro Part# 3256-1

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

19

Toro Part# 107-0784-05

HANDLE-LOWER
(Superseded to 112-6440-05)
Usually ships in 1 day

$

$46.86

0

20

Toro Part# 105-1844

Cable-Traction
Usually ships in 1 day

$

$22.35

0

21

Toro Part# 106-6805

Guide-Cable
(Superseded to 114-7988)
Usually ships in 1 day

$

$2.26

0

22

Toro Part# 614249

TIE-CABLE
Usually ships in 1 day

$

$0.83

0
