20020 (R-21 S1) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

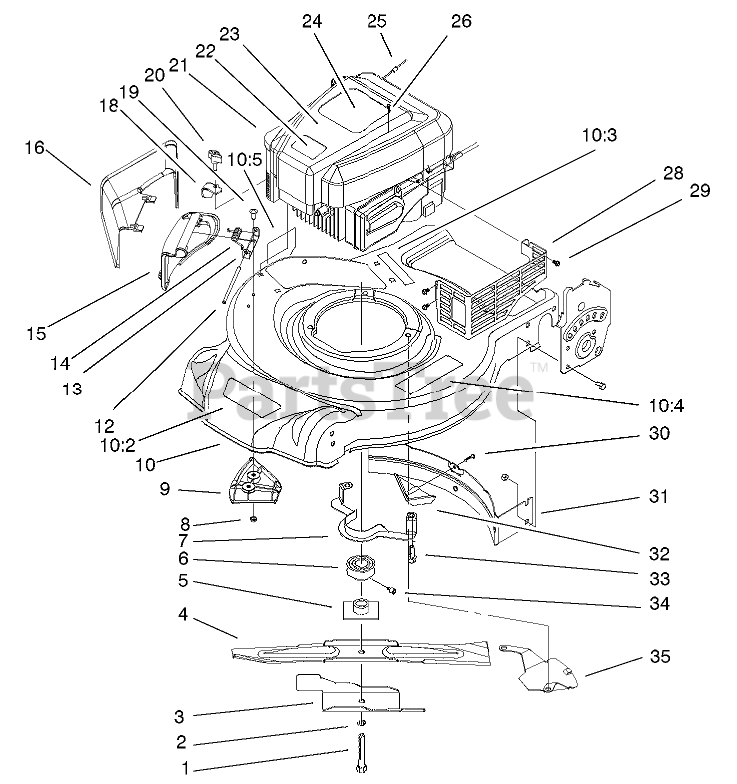

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$20.99

$

In Stock, only 2 left!

0

2

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

3

Toro 93-0219-03

ACCELERATOR

$22.99

$

Usually ships in 3-6 days

0

4

Toro 93-0241-03

BLADE-STEEL DECK

$39.99

$

In Stock, only 3 left!

0

5

Toro 104-1008

RETAINER-BLADE

$76.99

$

Usually ships in 3-6 days

0

6

Toro 95-1878

PULLEY

$55.99

$

Usually ships in 3-6 days

0

7

Toro 92-1024-03

GUIDE-BELT

$

$

Not available

8

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 8

0

9

Toro 99-6349

BAFFLE

$21.99

$

Usually ships in 3-6 days

0

10

Toro 99-5236

HOUSING SP

$411.99

$

Usually ships in 3-6 days

0

10:2

Toro 99-6011

DECAL - DECK

$14.99

$

Usually ships in 3-6 days

0

10:3

Toro 99-6018

DECAL-WARNING

$2.49

$

Usually ships in 3-6 days

0

10:4

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

10:5

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

11

Toro 99-6011

DECAL - DECK

$14.99

$

Usually ships in 3-6 days

0

12

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

13

Toro 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$10.99

$

In Stock, Qty 5

0

14

Toro 99-5293

SPRING-TORSION

$9.99

$

In Stock, Qty 18

0

15

Toro 99-5294

COVER-SIDE

$19.99

$

Usually ships in 3-6 days

0

16

Toro 99-5295

CHUTE-SIDE

$13.99

$

In Stock, only 3 left!

0

17

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

18

Toro 100-1589-03

Clamp-Door (only on: 20020)

$16.99

$

Usually ships in 3-6 days

0

19

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 98-8332

Knob (only on: 20020)

$5.49

$

In Stock, Qty 13

0

21

Engine Briggs & Stratton Model 12h802-1776-B1

Note: Not serviced

$

$

Not available

22

Toro 98-3206

Decal

$1.99

$

In Stock, only 2 left!

0

23

Toro 93-0243

SHROUD-ENGINE

$50.99

$

Usually ships in 3-6 days

0

24

Toro 99-6013

DECAL - RECOIL

$35.99

$

In Stock, only 1 left!

0

25

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

26

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.49

$

In Stock, only 4 left!

0

28

Toro 104-7577-03

SHIELD-MUFFLER

$25.99

$

Usually ships in 3-6 days

0

29

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

30

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

31

Toro 93-0223-03

BAFFLE-REAR

$25.99

$

Usually ships in 3-6 days

0

32

Toro 93-0217

KICKER-REAR

$14.99

$

Usually ships in 3-6 days

0

33

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

34

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$10.99

$

In Stock, only 1 left!

0

35

Toro 93-4196-03

SHIELD-GRASS

$13.99

$

In Stock, only 3 left!

0
