20020 (R-21 S1) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) Engine Briggs Stratton Model 12h802-1776-B1 3 Parts Diagram

21" Recycler Walk-Behind Mower

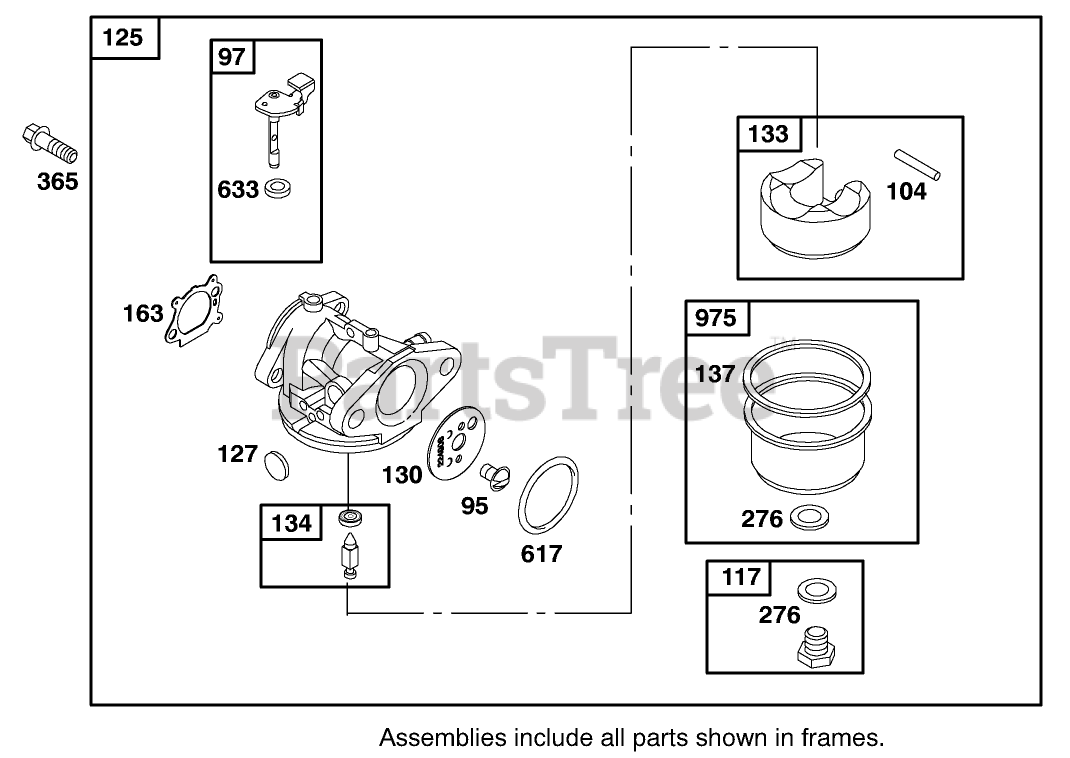

Engine Briggs Stratton Model 12h802-1776-B1 3 Parts Diagram

  • Title
95

Toro 691636

Screw

$

$

Currently unavailable

97

Toro 493267

Shaft and Lever

$

$

Currently unavailable

104

Toro 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

117

Toro 494870

Jet-Main

$

$

Currently unavailable

Toro 497315

Screw-Bowl Mtg. (Std.)

$

$

Currently unavailable

125

Toro 498170

Carburetor

$

$

Currently unavailable

127

Toro 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

130

Toro 691203

Valve?Throttle

$

$

Currently unavailable

133

Toro 398187

Float-Carburetor

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set-Ref. 977

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

365

Toro 692524

Screw

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Gasket Set-Ref. 977

$

$

Currently unavailable

633

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977

$

$

Currently unavailable

633

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

975

Toro 493640

Bowl-Float

$

$

Currently unavailable
