20020 (R-21 S1) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) Engine Briggs Stratton Model 12h802-1776-B1 9 Parts Diagram

21" Recycler Walk-Behind Mower

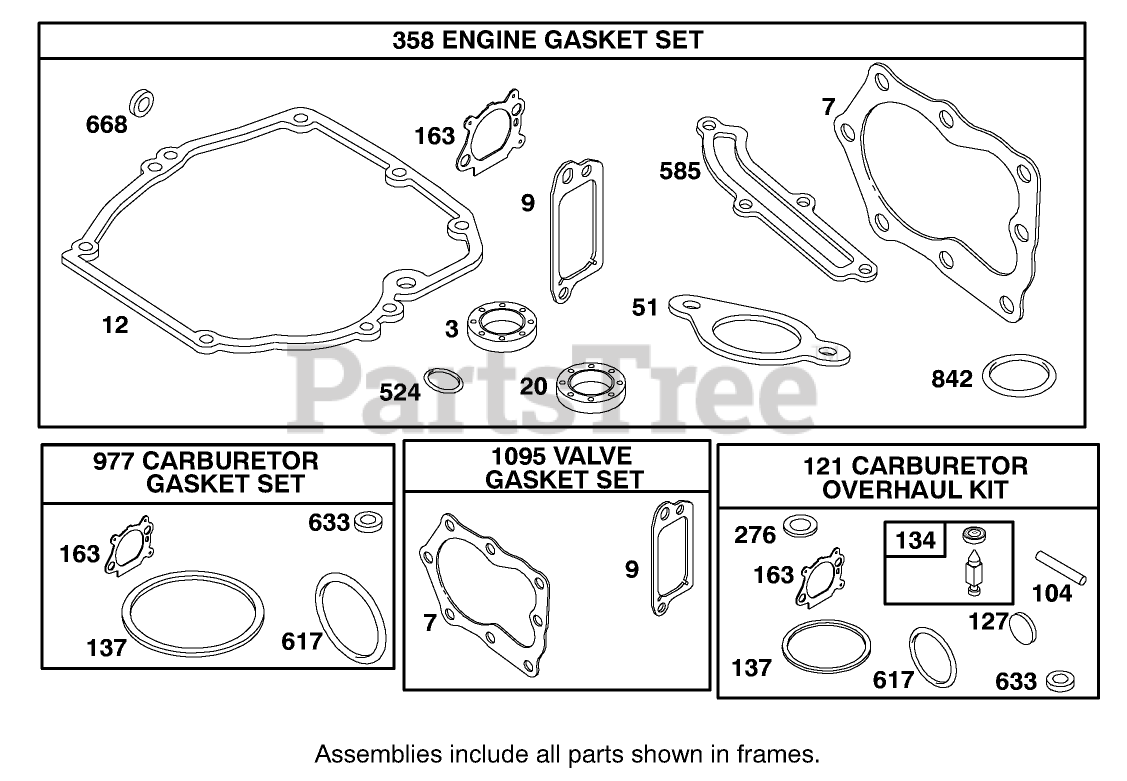

Engine Briggs Stratton Model 12h802-1776-B1 9 Parts Diagram

  • Title

3

Toro 299819

Seal-Oil

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

7

Toro 692249

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

7

Toro 692249

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

12

Toro 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

20

Toro 399781

Seal-Oil

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 272199

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

104

Toro 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

121

Toro 498260

Carburetor Overhaul Kit

$

$

Currently unavailable

127

Toro 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set-Ref. 977

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

358

Toro 497316

Engine Gasket Set

$

$

Currently unavailable

524

Toro 692296

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

585

Toro 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Gasket Set-Ref. 977

$

$

Currently unavailable

633

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977

$

$

Currently unavailable

633

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

668

Toro 493823

Spacer

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

842

Toro 691031

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

977

Toro 498261

Carburetor Gasket Set

$

$

Currently unavailable

1095

Toro 498528

Valve Gasket Set

$

$

Currently unavailable
