20021 (R-21 S1B) - Toro 21" Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) Engine Blade Assembly Parts Diagram

21" Recycler Walk-Behind Mower

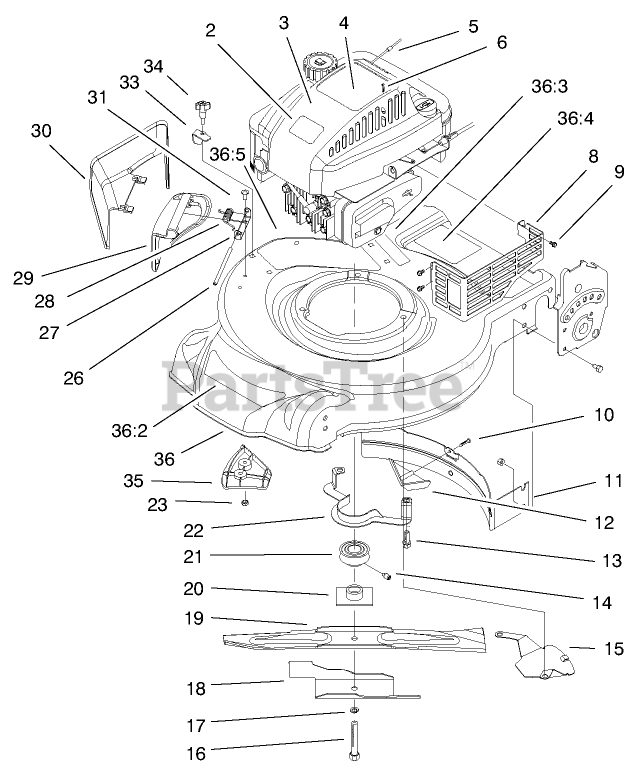

Engine Blade Assembly Parts Diagram

  • Title

2

Toro 98-3206

DECAL

$2.49

$

In Stock, only 2 left!

0

3

Toro 93-0243

SHROUD-ENGINE

$64.99

$

Usually ships in 3-6 days

0

4

Toro 99-6013

DECAL - RECOIL

$35.99

$

In Stock, only 1 left!

0

5

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

6

Toro 32144-121

See Supercession: 32144-88
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

8

Toro 82-8550-03

See Supercession: 104-7577-03
(Superseded to 104-7577-03)

$28.99

$

In Stock, only 2 left!

0

9

Toro 32144-73

See Supercession: 104-2065
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

10

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

11

Toro 93-0223-03

BAFFLE-REAR

$32.99

$

Usually ships in 3-6 days

0

12

Toro 93-0217

KICKER-REAR

$

$

Not available

13

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

14

Toro 613227

See Supercession: 105-8875
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

15

Toro 93-4196-03

SHIELD-GRASS

$16.99

$

In Stock, only 2 left!

0

16

Toro 95-1748

See Supercession: 105-8629
(Superseded to 105-8629)

$21.99

$

In Stock, only 4 left!

0

16

Toro 26-0670

SCREW-BLADE

$

$

Not available

17

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

18

Toro 93-0219-03

ACCELERATOR

$45.99

$

In Stock, only 2 left!

0

19

Toro 93-0241

See Supercession: 93-0241-03
(Superseded to 93-0241-03)

$42.99

$

In Stock, Qty 5

0

20

Toro 99-5287

BLADE DRIVER ASM

$31.99

$

Usually ships in 3-6 days

0

20

Toro 62-7540

BLADE RETAINER

$107.99

$

Usually ships in 3-6 days

0

21

Toro 95-1878

PULLEY

$69.99

$

In Stock, only 1 left!

0

21

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

22

Toro 92-1024-03

GUIDE-BELT

$

$

Not available

22

Toro 93-0208-03

Guide-Belt (Model 20021 Serial #9940000-9941632)

$

$

Currently unavailable

23

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

26

Toro 99-5291

See Supercession: 136-8672
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

27

Toro 99-5292

See Supercession: 119-7079
(Superseded to 119-7079)

$14.99

$

In Stock, only 3 left!

0

28

Toro 99-5293

SPRING-TORSION

$11.99

$

In Stock, Qty 5

0

29

Toro 99-5294

COVER-SIDE

$24.99

$

Usually ships in 3-6 days

0

30

Toro 99-5295

CHUTE-SIDE DISCHARGE

$16.99

$

Usually ships in 3-6 days

0

31

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

33

Toro 100-1589-03

CLAMP-DOOR

$

$

Not available

34

Toro 98-8332

KNOB

$5.99

$

In Stock, Qty 7

0

35

Toro 99-6349

BAFFLE

$27.99

$

Usually ships in 3-6 days

0

36

Toro 99-5236

HOUSING SP

$506.99

$

Usually ships in 3-6 days

0

36:2

Toro 99-6011

DECAL-DECK

$20.99

$

Usually ships in 3-6 days

0

36:3

Toro 99-6018

DECAL-WARNING

$2.99

$

Usually ships in 3-6 days

0

36:4

Toro 93-0248

See Supercession: 104-8589
(Superseded to 104-8589)

$7.99

$

Usually ships in 3-6 days

0

36:5

Toro 43-8480

DECAL-DANGER

$7.49

$

In Stock, only 3 left!

0
