20023 (R-21 SB) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) Discharge Door Assembly Part No. 93-0273 (model 20023, 20023c) Parts Diagram

21" Recycler Walk-Behind Mower

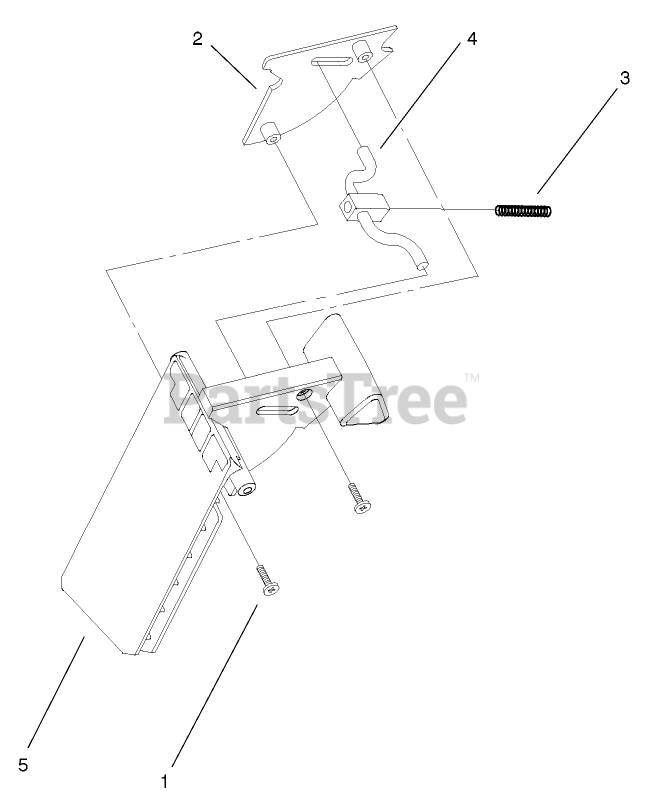

Discharge Door Assembly Part No. 93-0273 (model 20023, 20023c) Parts Diagram

  • Title

1

Toro 32144-322

Screw (only on: 20023, 20023c)

$

$

Currently unavailable

2

Toro 33-0441

DOOR COVER

$

$

Not available

3

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

4

Toro 88-1800

LATCH-DOOR

$

$

Not available

5

Toro 93-0264

DOOR-DISCHARGE

$

$

Not available

Toro 93-0273

ASM - DISCHARGE DOOR

Note: Not illustrated

$

$

Not available
