20025 - Toro Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) Engine Briggs Stratton Model 12j802-2369-B1 Parts Diagram

Recycler Walk-Behind Mower

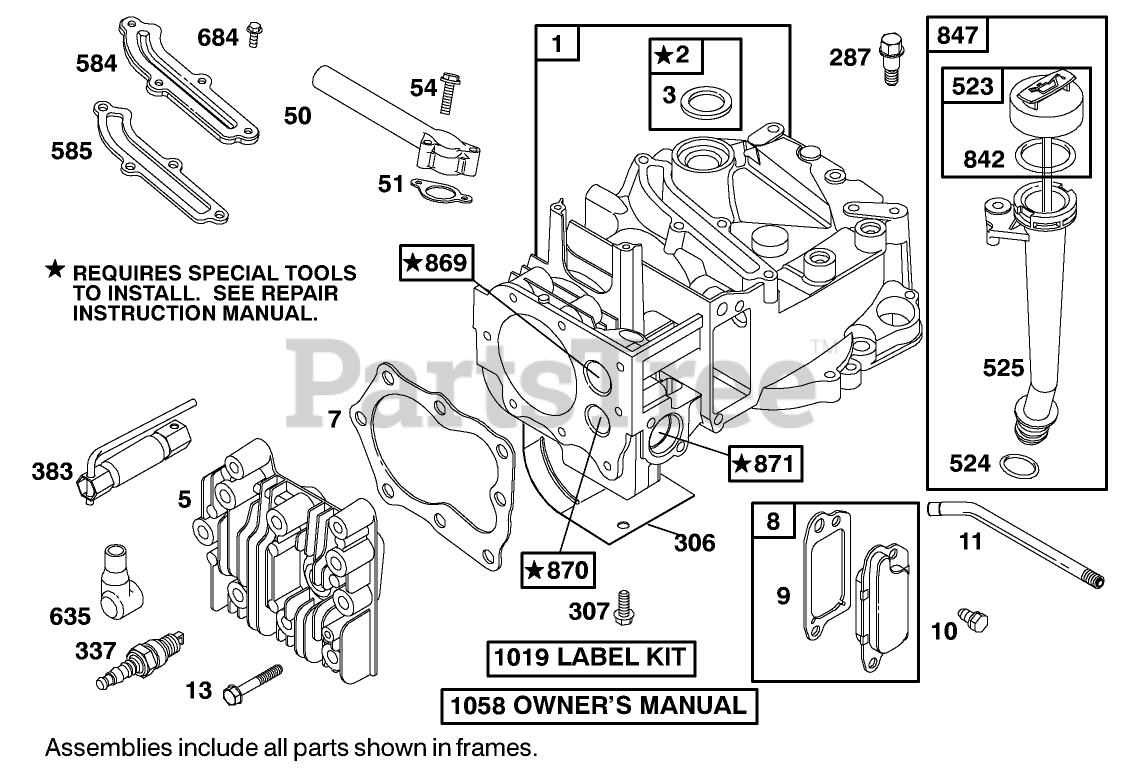

Engine Briggs Stratton Model 12j802-2369-B1 Parts Diagram

  • Title

1

Toro 494062

Cylinder Assembly

$

$

Currently unavailable

2

Toro 399269

Bushing and Seal Kit

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

5

Toro 691160

Head-Cylinder

$

$

Currently unavailable

7

Toro 692249

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

7

Toro 692249

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

8

Toro 695250

Breather Asm

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

10

Toro 94650

Screw-Hex.

$

$

Currently unavailable

11

Toro 691781

Tube-Breather

$

$

Currently unavailable

13

Toro 690912

Screw

$

$

Currently unavailable

50

Toro 497465

Manifold-Intake

$

$

Currently unavailable

51

Toro 272199

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

54

Toro 691650

Screw

$

$

Currently unavailable

287

Toro 690940

Screw

$

$

Currently unavailable

306

Toro 690450

Shield-Cylinder

$

$

Currently unavailable

307

Toro 690345

Screw

$

$

Currently unavailable

337

Toro 802592

Plug-Spark

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

523

Toro 495264

Dipstick

$

$

Currently unavailable

524

Toro 692296

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

525

Toro 495265

Tube-Dipstick

$

$

Currently unavailable

584

Toro 692342

Cover?Breather Passage

$

$

Currently unavailable

585

Toro 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

684

Toro 690345

Screw

$

$

Currently unavailable

842

Toro 691031

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

847

Toro 692017

Dipstick/Tube Assembly

$

$

Currently unavailable

869

Toro 691155

Seat-Valve

$

$

Currently unavailable

870

Toro 690380

Seat-Valve

$

$

Currently unavailable

871

Toro 262001

Bushing-Guide

$

$

Currently unavailable

Toro 63709

Bushing-Guide

$

$

Currently unavailable

1019

Toro 498606

Label Kit

$

$

Currently unavailable

1058

Toro 274783

Owner-s Manual

$

$

Currently unavailable

Toro 696276

Short Block

$

$

Currently unavailable
