20027 (R-21 OSB) - Toro 21" Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) Engine Briggs Stratton Model 122602-0150-E1 Parts Diagram

21" Recycler Walk-Behind Mower

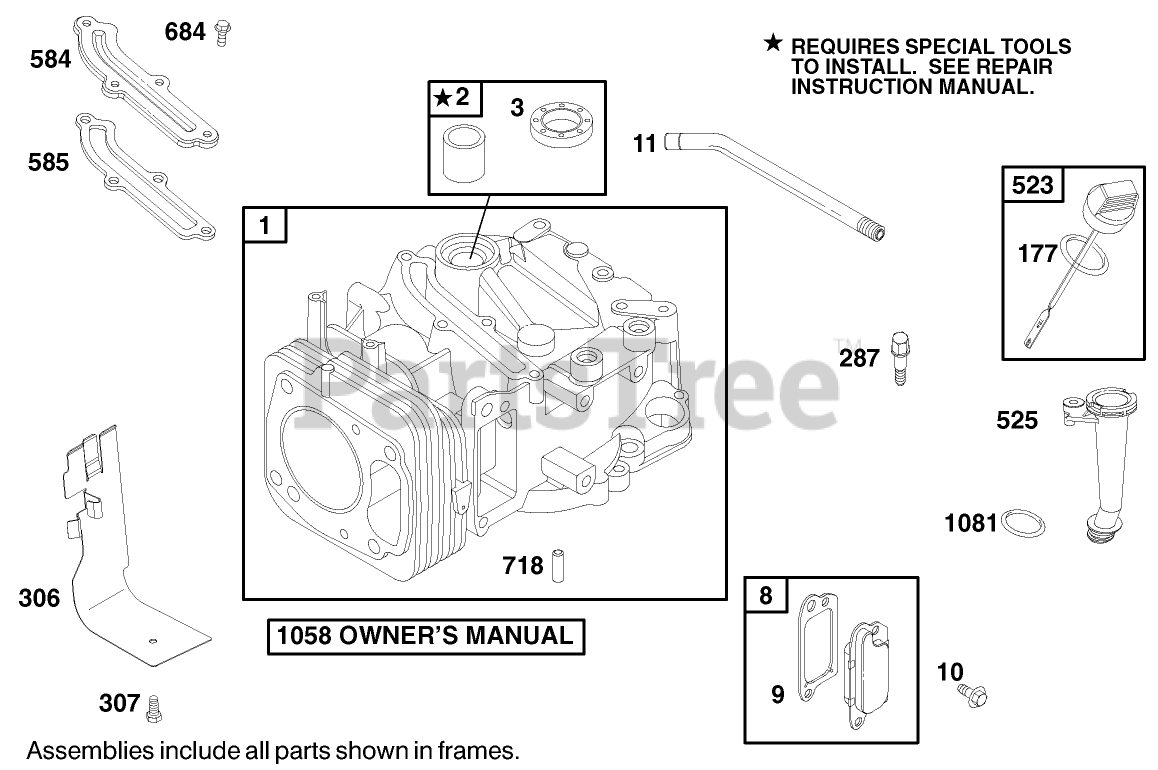

Engine Briggs Stratton Model 122602-0150-E1 Parts Diagram

  • Title

1

Toro 692781

Cylinder Assembly

$

$

Currently unavailable

2

Toro 399269

Bushing and Seal Kit

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

8

Toro 495786

Breather ASM

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

10

Toro 691125

Screw

$

$

Currently unavailable

11

Toro 691260

Tube?Breather

$

$

Currently unavailable

177

Toro 280393

O-Ring Seal

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

287

Toro 690940

Screw

$

$

Currently unavailable

306

Toro 691232

Shield?Cylinder

$

$

Currently unavailable

307

Toro 690345

Screw

$

$

Currently unavailable

523

Toro 493601

Dipstick

$

$

Currently unavailable

525

Toro 495265

Tube-Dipstick

$

$

Currently unavailable

584

Toro 692342

Cover?Breather Passage

$

$

Currently unavailable

585

Toro 272238

Gasket-Breather

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

684

Toro 690345

Screw

$

$

Currently unavailable

718

Toro 230192

Pin-Dowel

$

$

Not available

1058

Toro 273323

Owner-s Manual

$

$

Currently unavailable

1081

Toro 280966

O-Ring Seal

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable
