20027 (R-21 OSB) - Toro 21" Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) Engine Briggs Stratton Model 122602-0150-E1 3 Parts Diagram

21" Recycler Walk-Behind Mower

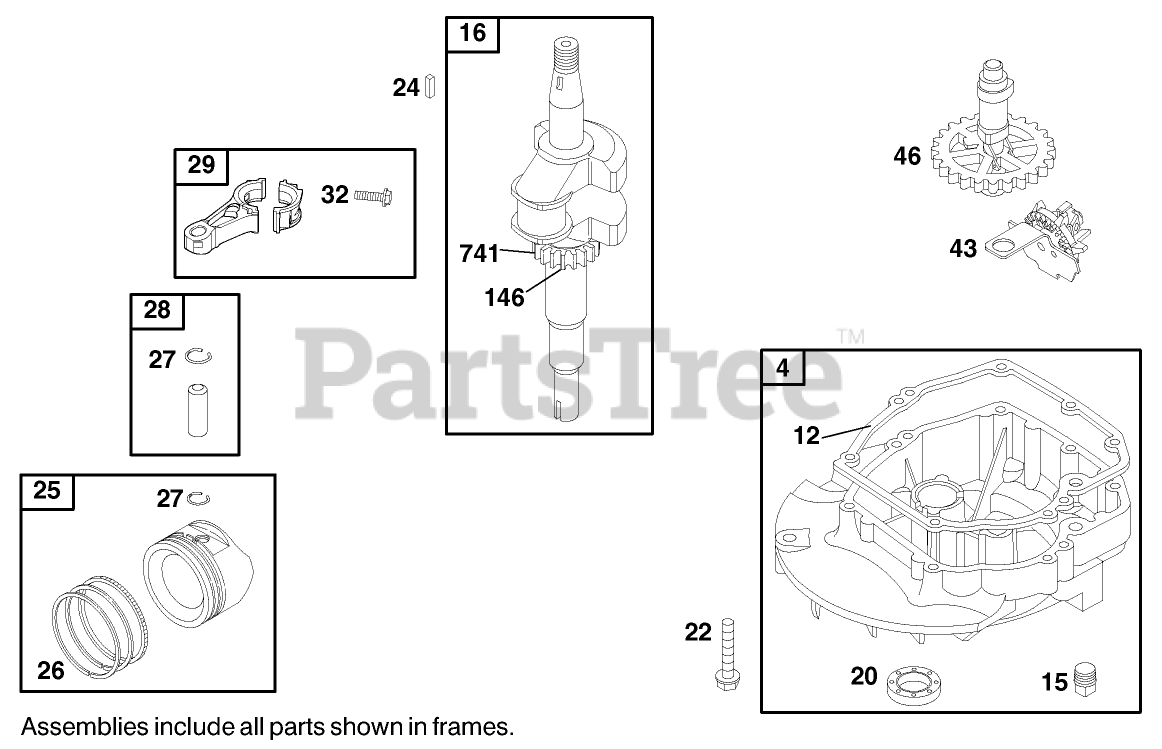

Engine Briggs Stratton Model 122602-0150-E1 3 Parts Diagram

  • Title

4

Toro 499619

Sump?Engine

$

$

Currently unavailable

12

Toro 272198

Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

15

Toro 94880

Oil Drain Plug

$

$

Currently unavailable

16

Toro 694153

Crankshaft

$

$

Currently unavailable

20

Toro 399781

Seal-Oil

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

22

Toro 691092

Screw

$

$

Currently unavailable

Toro 94612

Screw Hex. Head

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 499627

Piston ASM (Standard)

$

$

Currently unavailable

Toro 692788

Piston Assembly (.010 Oversize)

$

$

Currently unavailable

Toro 692789

Piston ASM (.020in Oversize)

$

$

Currently unavailable

Toro 692790

Piston Assembly (.030 Oversize)

$

$

Currently unavailable

26

Toro 499631

Ring Set (Standard)

$

$

Currently unavailable

Toro 692786

Ring Set (.020in Oversize)

$

$

Currently unavailable

Toro 692787

Ring Set (.030in Oversize)

$

$

Currently unavailable

27

Toro 263190

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 499423

Pin-Piston

$

$

Currently unavailable

29

Toro 499424

Rod-Connecting

$

$

Currently unavailable

32

Toro 94699

Screw-Hex

$

$

Currently unavailable

43

Toro 493737

Oil Slinger

$

$

Currently unavailable

46

Toro 692453

Camshaft

$

$

Currently unavailable

146

Toro 94388

Key-Timing
(Superseded to 690979)

$3.49

$

In Stock, Qty 20+

0

741

Toro 262598

Gear-Timing

$

$

Currently unavailable
