20027 (R-21 OSB) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) Engine Briggs Stratton Model 122602-0150-E1 4 Parts Diagram

21" Recycler Walk-Behind Mower

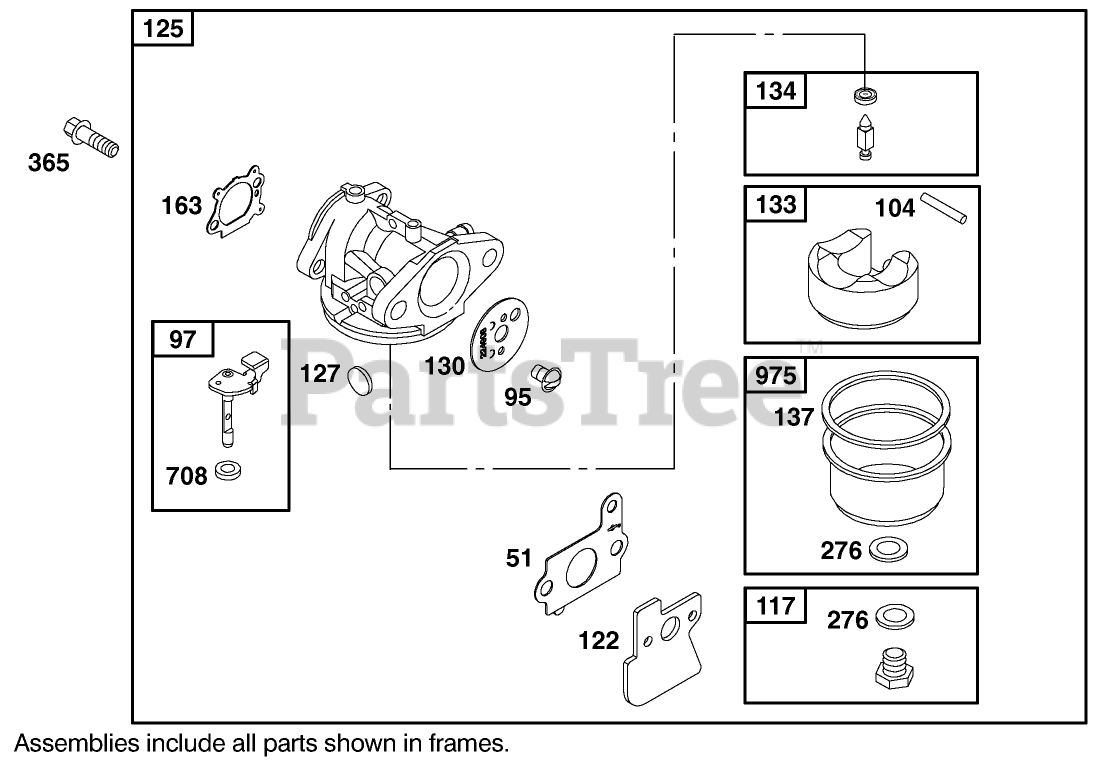

Engine Briggs Stratton Model 122602-0150-E1 4 Parts Diagram

  • Title

51

Toro 272487

Gasket-Intake

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

51

Toro 272487

Gasket-Intake

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

51

Toro 272487

Gasket-Intake

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

51

Toro 272487

Gasket-Intake

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

$

$

Currently unavailable

97

Toro 499682

Shaft?Throttle

$

$

Currently unavailable

104

Toro 691242

Pin-Hinge, Float

$

$

Currently unavailable

117

Toro 494870

Jet-Main

$

$

Currently unavailable

122

Toro 692799

Gasket-Intake

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

122

Toro 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

125

Toro 692648

Carburetor

$

$

Currently unavailable

127

Welch Plug (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

130

Toro 691203

Valve?Throttle

$

$

Currently unavailable

133

Toro 398187

Float-Carburetor

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

137

Float Bowl Gasket (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

137

Float Bowl Gasket (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

163

Toro 273364

Air Cleaner Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

163

Toro 273364

Air Cleaner Gasket

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

163

Toro 273364

Air Cleaner Gasket

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

276

Bowl Washer (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

276

Bowl Washer (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

365

Toro 691136

Screw

$

$

Currently unavailable

708

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

708

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

975

Toro 493640

Bowl-Float

$

$

Currently unavailable
