20027 (R-21 OSB) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) Engine Briggs Stratton Model 122602-0150-E1 6 Parts Diagram

21" Recycler Walk-Behind Mower

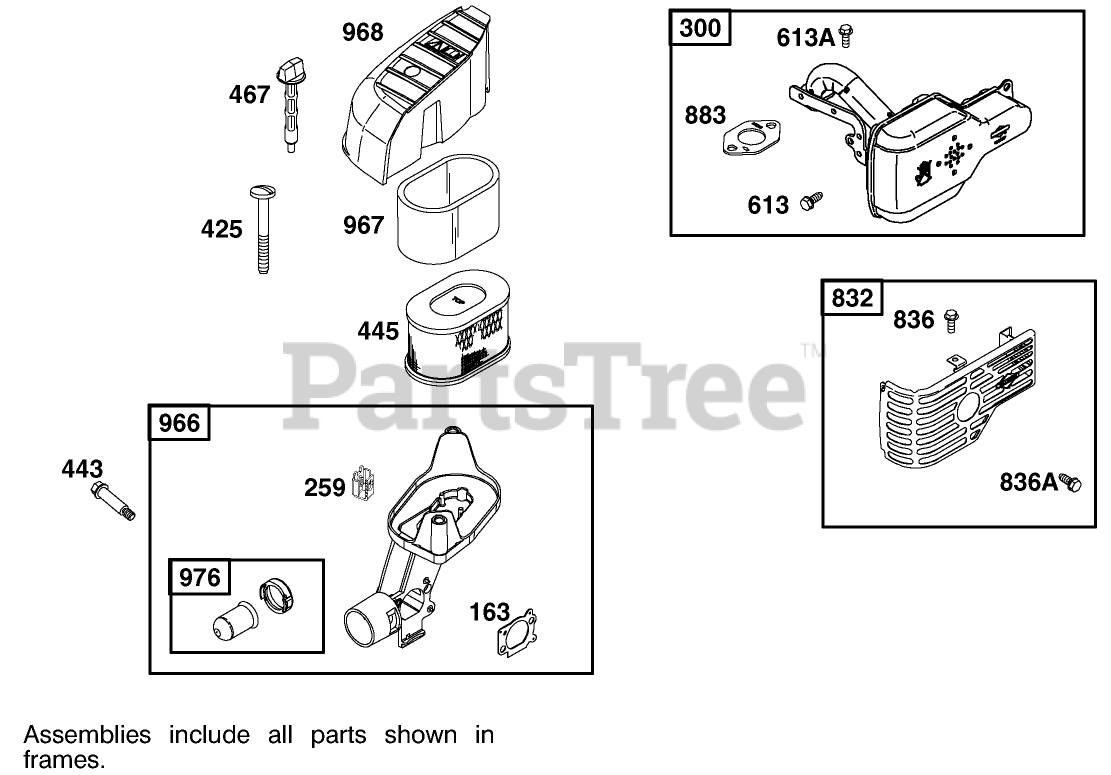

Engine Briggs Stratton Model 122602-0150-E1 6 Parts Diagram

  • Title

163

Toro 273364

Air Cleaner Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

163

Toro 273364

Air Cleaner Gasket

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

163

Toro 273364

Air Cleaner Gasket

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

259

Toro 691189

Bracket?Clamp, Casing

$

$

Currently unavailable

300

Toro 692276

Muffler

$

$

Currently unavailable

425

Toro 690244

Screw

$

$

Currently unavailable

445

Toro 690610

Filter?Air Cleaner Cartridge

$

$

Currently unavailable

467

Toro 692447

Air Cleaner Knob

$

$

Currently unavailable

613

Toro 691140

Screw

$

$

Currently unavailable

613A

Toro 691108

Screw

$

$

Currently unavailable

832

Toro 690984

Guard-Muffler

$

$

Currently unavailable

836

Toro 94786

Screw-Sem

$

$

Currently unavailable

836A

Toro 94874

Screw-Hex.

$

$

Currently unavailable

883

Toro 273348

Exhaust Gasket

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$

$

Currently unavailable

883

Toro 273348

Exhaust Gasket

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

966

Toro 499684

Air Cleaner PrimerBase

$

$

Currently unavailable

967

Toro 273356

Filter-Pre Cleaner

$

$

Currently unavailable

968

Toro 692692

Cover?Cleaner, Air

$

$

Currently unavailable

443

Toro 690255

Screw

$

$

Currently unavailable

976

Toro 496115

CarburetorPrimer

$

$

Currently unavailable
