20028 - Toro Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) Engine Briggs Stratton Model 12j802-2368-E1 3 Parts Diagram

Recycler Walk-Behind Mower

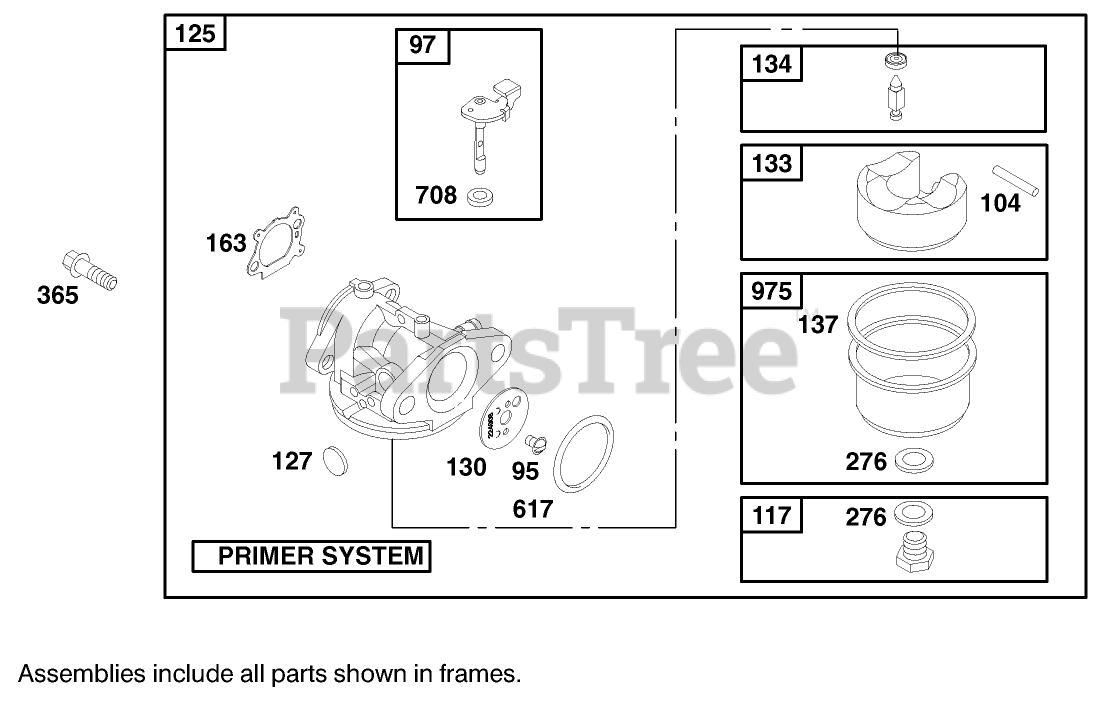

Engine Briggs Stratton Model 12j802-2368-E1 3 Parts Diagram

  • Title

95

Toro 94098

Valve-Choke

$

$

Currently unavailable

97

Toro 493267

Shaft and Lever

$

$

Currently unavailable

104

Toro 691242

Pin-Hinge, Float

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

117

Toro 494870

Jet-Main

$

$

Currently unavailable

Toro 497315

Screw-Bowl Mtg. (Std.)

$

$

Currently unavailable

125

Toro 694093

Carburetor

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

130

Toro 691203

Valve?Throttle

$

$

Currently unavailable

133

Toro 398187

Float-Carburetor

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Gasket Set-See Ref. 358.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

365

Toro 94525

Screw-Hex

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

708

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Currently unavailable

708

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Currently unavailable

975

Toro 493640

Bowl-Float

$

$

Currently unavailable
