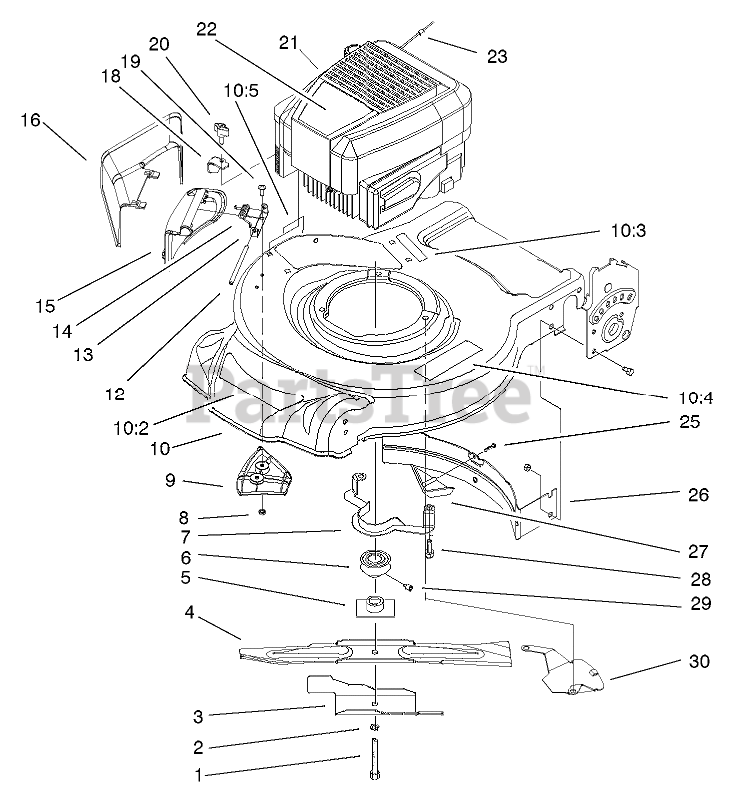

20028 - Toro Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 95-1748

SCREW-BLADE
(Superseded to 105-8629)
Usually ships in 1 day

$

$15.61

0

2

Toro Part# 3253-22

WASHER-LOCK
Usually ships in 1 day

$

$1.88

0

3

Toro Part# 93-0219-03

ACCELERATOR
Usually ships in 1 day

$

$17.97

0

4

Toro Part# 93-0241-03

BLADE-STEEL DECK
Usually ships in 1 day

$

$32.41

0

5

Toro Part# 104-1008

RETAINER-BLADE
Usually ships in 5 to 8 days

$

$62.28

0

Usually ships in 5 to 8 days

$

$45.12

0

7
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$2.56

0

Usually ships in 5 to 8 days

$

$17.52

0

10

Toro Part# 99-5236

HOUSING SP
Usually ships in 5 to 8 days

$

$335.89

0

10:2

Toro Part# 99-6011

DECAL - DECK
Usually ships in 5 to 8 days

$

$12.10

0

10:3

Toro Part# 99-6018

DECAL-WARNING
Usually ships in 1 day

$

$1.79

0

10:4

Toro Part# 93-0248

DECAL-WARNING
(Superseded to 104-8589)
Usually ships in 1 day

$

$4.67

0

10:5

Toro Part# 43-8480

DECAL-DANGER
Usually ships in 1 day

$

$5.18

0

12

Toro Part# 99-5291

ROD-COVER
(Superseded to 136-8672)
Usually ships in 1 day

$

$2.46

0

13

Toro Part# 99-5292

BRACKET-COVER
(Superseded to 119-7079)
Usually ships in 1 day

$

$8.94

0

14

Toro Part# 99-5293

SPRING-TORSION
Usually ships in 1 day

$

$7.82

0

15

Toro Part# 99-5294

COVER-SIDE
Usually ships in 5 to 8 days

$

$15.70

0

16

Toro Part# 99-5295

CHUTE-SIDE
Usually ships in 1 day

$

$10.88

0

18
Usually ships in 5 to 8 days

$

$13.15

0

19

Toro Part# 3229-11

SCREW-CARR
Usually ships in 1 day

$

$1.00

0

Usually ships in 1 day

$

$3.66

0

21

Part#

Engine-Quantum Xl,Zs Briggs & Stratton Model 12j802-2369-B1

Note: Not serviced

Usually ships same day

Not available

$

$

22

Toro Part# 99-6336

DECAL - RECOIL - QUIET I/C
Usually ships same day

Not available

$

$

23
Usually ships in 5 to 8 days

$

$5.89

0

25

Toro Part# 93-0231

SCREW-PPH
Usually ships in 1 day

$

$0.75

0

26

Toro Part# 93-0223-03

BAFFLE-REAR
Usually ships in 5 to 8 days

$

$20.45

0

27

Toro Part# 93-0217

KICKER-REAR
Usually ships in 5 to 8 days

$

$12.07

0

28

Toro Part# 95-1726

SCREW-TAPTITE
Usually ships in 1 day

$

$1.61

0

29

Toro Part# 104-0214

SCREW-SET
(Superseded to 105-8875)
Usually ships in 1 day

$

$8.53

0

30

Toro Part# 93-4196-03

SHIELD-GRASS
Usually ships in 1 day

$

$10.81

0
